Damped Boring Bars for Long-Overhang Machining
Compare damped boring bars for long-overhang machining. The model tables list bar diameters from 16 to 160 mm, with length, L/D and coolant-inlet details for each variant. Select the exact bar and confirm its head connection, required overhang and application before ordering.
The range
Auto-scrolling · hover to pause · hover an image to magnify


















Series 01
Ø16–40 mm · Standard Series

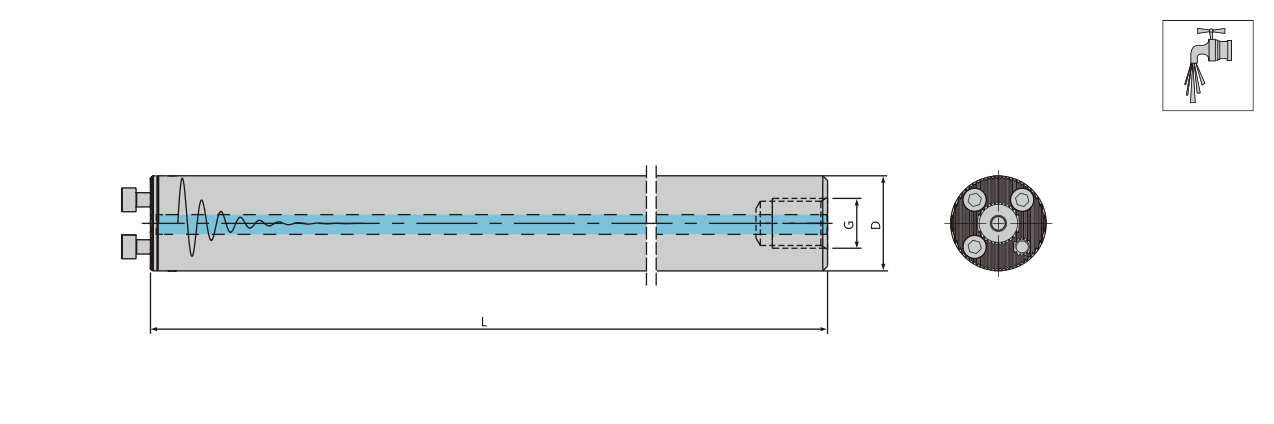

Bars D16–40 mm · L/D 7, 10, 12, 14 · coolant inlet G1/8"–G1/2"
Parameters
| Model | D (mm) | L (mm) | Coolant inlet | L/D |
|---|---|---|---|---|
| WV16 C16-156 | 16 | 156 | G1/8″ | 7 |
| WV16 C16-204E | 16 | 204 | G1/8″ | 10 |
| WV16 C16-236E | 16 | 236 | G1/8″ | 12 |
| WV16 C16-268E | 16 | 268 | G1/8″ | 14 |
| WV20 C20-200 | 20 | 200 | G1/4″ | 7 |
| WV20 C20-260E | 20 | 260 | G1/4″ | 10 |
| WV20 C20-300E | 20 | 300 | G1/4″ | 12 |
| WV20 C20-340E | 20 | 340 | G1/4″ | 14 |
| WV25 C25-255 | 25 | 255 | G1/4″ | 7 |
| WV25 C25-330 | 25 | 330 | G1/4″ | 10 |
| WV25 C25-380E | 25 | 380 | G1/8″ | 12 |
| WV25 C25-430E | 25 | 430 | G1/8″ | 14 |
| WV32 C32-320 | 32 | 320 | G3/8″ | 7 |
| WV32 C32-416 | 32 | 416 | G3/8″ | 10 |
| WV32 C32-480E | 32 | 480 | G1/4″ | 12 |
| WV32 C32-544E | 32 | 544 | G1/4″ | 14 |
| WV40 C40-408 | 40 | 408 | G1/2″ | 7 |
| WV40 C40-528 | 40 | 528 | G1/2″ | 10 |
| WV40 C40-608E | 40 | 608 | G3/8″ | 12 |
| WV40 C40-688E | 40 | 688 | G3/8″ | 14 |
Head families for this Ø16–40 mm series: WV16, WV20, WV25, WV32 and WV40, respectively. Match the complete bar and head models when ordering.
Series 02
Ø50–60 mm · Medium Series

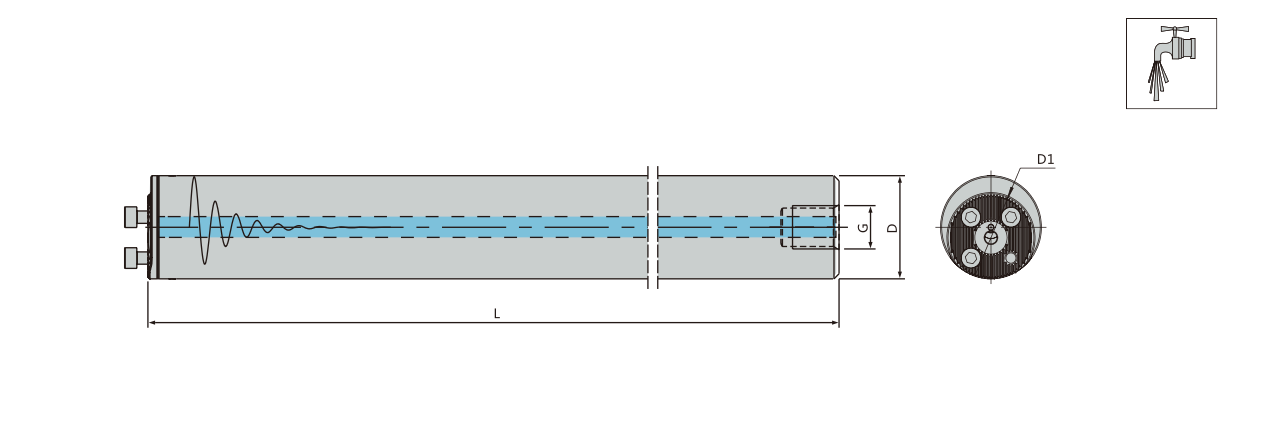

Bars D50–60 mm · L/D 7, 10, 12, 14 · coolant inlet G1/2"/G3/4"
Parameters
| Model | D (mm) | D1 (mm) | L (mm) | Coolant inlet | L/D |
|---|---|---|---|---|---|
| WV40 C50-518 | 50 | 40 | 518 | G1/2″ | 7 |
| WV40 C50-668 | 50 | 40 | 668 | G1/2″ | 10 |
| WV40 C50-768E | 50 | 40 | 768 | G1/2″ | 12 |
| WV40 C50-868E | 50 | 40 | 868 | G1/2″ | 14 |
| WV40 C60-628 | 60 | 40 | 628 | G3/4″ | 7 |
| WV40 C60-808 | 60 | 40 | 808 | G3/4″ | 10 |
| WV40 C60-920E | 60 | 40 | 920 | G3/4″ | 12 |
| WV40 C60-1040E | 60 | 40 | 1040 | G3/4″ | 14 |
Reinforced variant — SC series
SC reinforced bars with catalogue L/D groups of 5 and 7. Select the dimensions and head connection for the required setup.
| Model | D (mm) | L (mm) | Coolant inlet | L/D |
|---|---|---|---|---|
| WV25 SC25-205 | 25 | 205 | G3/8″ | 5 |
| WV32 SC32-256 | 32 | 256 | G3/8″ | 5 |
| WV40 SC40-328 | 40 | 328 | G1/2″ | 5 |
| WV40 SC50-418 | 50 | 418 | G1/2″ | 5 |
| WV40 SC60-508 | 60 | 508 | G3/4″ | 5 |
| WV25 SC25-255.E | 25 | 255 | G3/8″ | 7 |
| WV32 SC32-320.E | 32 | 320 | G3/8″ | 7 |
| WV40 SC40-408.E | 40 | 408 | G1/2″ | 7 |
| WV40 SC50-518.E | 50 | 518 | G1/2″ | 7 |
| WV40 SC60-628.E | 60 | 628 | G3/4″ | 7 |
Scroll vertically to view the table · Column headings stay visible
Series 03
Ø80–160 mm · Large Series

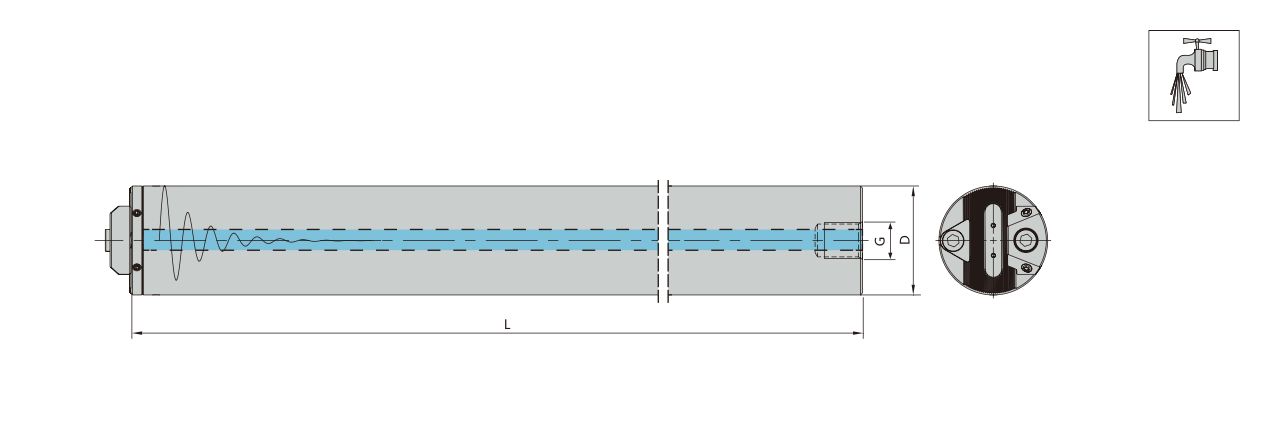

Bars D80–160 mm · L/D 7 to 16 · coolant inlet G3/4"
Parameters
| Model | D (mm) | L (mm) | L/D |
|---|---|---|---|
| WV80 C80-880 | 80 | 880 | 7 |
| WV80 C80-1200 | 80 | 1200 | 10 |
| WV80 C80-1240E | 80 | 1240 | 12 |
| WV80 C80-1400E | 80 | 1400 | 14 |
| WV80 C100-1100 | 100 | 1100 | 7 |
| WV80 C100-1500 | 100 | 1500 | 10 |
| WV80 C100-1560E | 100 | 1560 | 12 |
| WV80 C100-1760E | 100 | 1760 | 14 |
| WV80 C100-1960E | 100 | 1960 | 16 |
| WV80 C120-1630 | 120 | 1630 | 10 |
| WV80 C120-1870E | 120 | 1870 | 12 |
| WV80 C120-2110E | 120 | 2110 | 14 |
| WV80 C120-2350E | 120 | 2350 | 16 |
| WV80 C130-1770 | 130 | 1770 | 10 |
| WV80 C130-2030E | 130 | 2030 | 12 |
| WV80 C130-2290E | 130 | 2290 | 14 |
| WV80 C130-2550E | 130 | 2550 | 16 |
| WV80 C140-1910 | 140 | 1910 | 10 |
| WV80 C140-2190E | 140 | 2190 | 12 |
| WV80 C140-2470E | 140 | 2470 | 14 |
| WV80 C140-2750E | 140 | 2750 | 16 |
| WV80 C150-2050 | 150 | 2050 | 10 |
| WV80 C150-2350E | 150 | 2350 | 12 |
| WV80 C150-2650E | 150 | 2650 | 14 |
| WV80 C150-2950E | 150 | 2950 | 16 |
| WV80 C160-2190 | 160 | 2190 | 10 |
| WV80 C160-2510E | 160 | 2510 | 12 |
| WV80 C160-2830E | 160 | 2830 | 14 |
| WV80 C160-3150E | 160 | 3150 | 16 |
Scroll vertically to view the table · Column headings stay visible
Select a complete boring setup
Check bar diameter and overall length against the available machine space. Use the L/D and coolant-inlet values for the selected row; the highest listed L/D does not apply to every diameter. Send the bar model, head connection, bore dimensions, workpiece material and coolant setup with your enquiry.
