PRODUCTS — SHALLOW-HOLE DRILLING

WVU Indexable Insert Drills

Economical indexable drilling from Ø12.5 to 63 mm at 2×D–5×D — rotate the insert, not the budget.

Request a Quote
  • Ø12.5–63 mm
  • 2×D–5×D depth
  • SP05 / SP06 / ST02 inserts
Indexable Insert Drills
Max diameter
63 mm
Max drilling depth
5 ×D
Insert types
3
Pre-shipment inspection
100 %
截屏2026 08 20 09.10.25

Shallow Holes, Indexable Economy.

For holes up to 5×D deep, WVU Indexable Insert Drills deliver indexable economy: when an edge dulls, index to a fresh one in seconds and keep production moving.

  • Ø12.5–63 mm across 2×D to 5×D
  • SP05 / SP06 / ST02 indexable inserts
  • T20M / T25M shanks for secure clamping
  • Ideal for high-volume shallow-hole work
Request a Quote

WVU Body Series — R2 (2×D)

Full shank data — model code = Diameter + Depth ratio + Shank + Insert. All dimensions in mm.

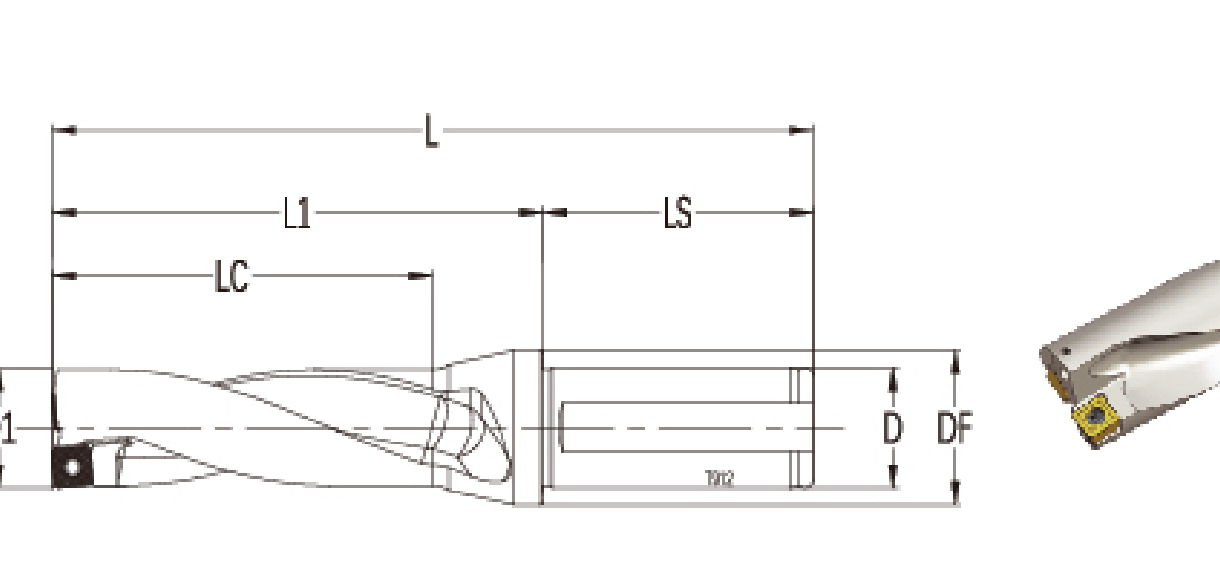

WVU series tool dimensions

0

Model D1 (mm) D (mm) L (mm) LC (mm) LS (mm) Insert Wrench Screw
WVU1250R2T20M-SP05 12.5 25 94 26 50 SPMG 050204WV3020 TORX06-1367 M2*4.8
WVU1300R2T20M-SP05 13 20 94 26 50 SPMG 050204 WV3020 TORX06-1367 M2*4.8
WVU1350R2T20M-SP05 13.5 20 96 28 50 SPMG 050204 WV3020 TORX06-1367 M2*4.8
WVU1450R2T20M-SP05 14.5 20 99 30 50 SPMG 050204 WV3020 TORX06-1367 M2*4.8
WVU1500R2T20M-SP05 15 20 99 30 50 SPMG 050204 WV3020 TORX06-1367 M2*4.8
WVU1550R2T25M-SP06 15.5 25 108 32 56 SPMG 050204 WV.3020 TORX07-1367 M2.2*6.5
WVU1600R2T25M-SP06 16 25 108 32 56 SPMG 060204 WV3020 TORX07-1367 M2.2*6.5
WVU1650R2T25M-SP06 16.5 25 110 34 56 SPMG 060204 WV3020 TORX07-1367 M2.2*6.5
WVU1700R2T25M-SP06 17 25 113 34 56 SPMG 060204 WV3020 TORX07-1367 M2.2*6.5
WVU1750R2T25M-SP06 17.5 25 113 36 56 SPMG 060204 WV3020 TORX07-1367 M2.2*6.5
WVU1800R2T25M-SP06 18 25 113 36 56 SPMG 060204 WV3020 TORXO7-1367 M2.2*6.5
WVU1850R2T25M-SP06 18.5 25 115 38 56 SPMG 060204 WV3020 TORX07-1367 M2.2*6.5
WVU1900R2T25M-SP06 19 25 115 38 56 SPMG 060204 WV3020 TORX07-1367 M2.2*6.5
WVU1950R2T25M-SP06 19.5 32 119 40 56 SPMG 060204 WV3020 TORX07-1367 M2.2*6.5
WVU2050R2T25M-SP06 20.5 25 121 42 56 SPMG 060204 WV3020 TORX07-1367 M2.2*6.5
WVU2100R2T25M-SP06 21 25 121 42 56 SPMG 060204 WV3020 TORX07-1367 M2.2*6.5
WVU2150R2T25M-SP06 21.5 32 123 44 56 SPMG 060204 WV3020 TORX07-1367 M2.2*6.5
WVU2200R2T25M-SP07 22 25 123 44 56 SPMG 07T308 WV3020 TORX08-1367 M2.5*6
WVU2250R2T25M-SP07 22.5 25 127 46 56 SPMG 07T308 WV3020 TORXO8-1367 M2.5*6
WVU2250R2T32M-SP07 22.5 32 131 46 60 SPMG 07T308 WV3020 TORXD8-1367 M2.5*6
WVU2300R2T25M-SP07 23 25 127 46 56 SPMG 07T308 WV3020 TORX08-1367 M2.5*6
WVU2300R2T32M-SP07 23 32 131 46 60 SPMG 07T308 WV3020 TORXO8-1367 M2.5*6
WVU2350R2T32M-SP07 23.5 32 134 48 60 SPMG 07T308 WV3020 TORX08-1367 M2.5*6
WVU2400R2T32M-SP07 24 32 134 48 60 SPMG 071308 WV3020 TORXO8-1367 M2.5*6
WVU2450R2T32M-SP07 24.5 32 137 50 60 SPMG 07T308 WV3020 TORXO8-1367 M2.5*6
WVU2500R2T25M-SP07 25 25 133 50 56 SPMG 071308 WV3020 TORXO8-1367 M2.5*6
WVU2500R2T32M-SP07 25 32 137 50 60 SPMG 071308 WV3020 TORX08-1367 M2.5*6
WVU2550R2T32M-SP07 25.5 32 139 52 60 SPMG 07T308 WV3020 TORXO8-1367 M2.5*6
WVU2600R2T25M-SP07 26 25 135 52 56 SPMG 07T308 WV3020 TORXO8-1367 M2.5*6
WVU2600R2T32M-SP07 26 32 139 52 60 SPMG 071308 WV3020 TORX08-1367 M2.5*6
WVU2650R2T25M-SP07 26.5 25 137 54 56 SPMG 07T308 WV3020 TORXO8-1367 M2.5*6
WVU2650R2T32M-SP07 26.5 32 141 54 60 SPMG 07T308 WV3020 TORX08-1367 M2.5*6
WVU2700R2T25M-SP07 27 25 137 54 56 SPMG 071308 WV3020 TORX08-1367 M2.5*6
WVU2750R2T25M-SP07 27.5 25 140 56 56 SPMG 07T308 WV3020 TORX08-1367 M2.5*6
WVU2750R2T32M-SP07 27.5 32 144 56 60 SPMG 071308 WV3020 TORX08-1367 M2.5*6

Insert: SPMG 07T308 WV3020 · wrench: TORX08-1367 · screw: M2.5×6. R3 depth ratio available on request. Scroll sideways on mobile.

Why WVU for Shallow Holes

Shallow holes deserve a purpose-built tool — not an over-engineered one.

Indexable Inserts

SP05 / SP06 / ST02 inserts — index to a fresh edge in seconds.

2×D–5×D Depth

Purpose-built for shallow holes — no wasted cycle time.

Secure Shanks

T20M / T25M clamping keeps the drill on center.

High-Volume Ready

Economical cost per hole in long production runs.

Need deeper than 5×D? Ask about our WVT and WVF modular drills for 8×D–12×D and beyond.

Why Machinists Choose WVU

Indexable Economy

Lower cost per edge — pay for inserts, not whole drills.

Fast Edge Changes

Index to a fresh edge in seconds, on the machine.

5×D Reach

Purpose-built depth for shallow-hole work.

Ø12.5–63 mm

One series covers a wide shallow-hole range.

Stable Clamping

T20M / T25M shanks hold the drill on center.

High-Volume Ready

Built for long production runs at low cost per hole.

Specifications at a Glance

  • Diameter: Ø12.5 – 63 mm
  • Depth: 2×D / 3×D / 4×D / 5×D
  • Inserts: SP05 / SP06 / ST02 indexable
  • Shanks: T20M / T25M
  • Applications: high-volume shallow-hole drilling in steel, cast iron, and general materials

Frequently Asked Questions

A drill optimized for depths of 2×D to 5×D — faster and more economical than deep-hole systems for short holes.

SP05, SP06, and ST02 indexable inserts.

Ø12.5 to 63 mm.

T20M and T25M.

Steel, cast iron, and general machining materials — contact us for exotic alloys.

Please contact us for current MOQ and lead times — we reply within 1 business day.

Index Your Way to Lower Costs

Tell us your hole size, depth, and material — we will spec the right WVU package with pricing within 1 business day.
