Damping Tooling · Other Holders
Anti-Vibration Tool Holders
Not every job is a boring job. The same damped body is built as a face milling holder for wide, interrupted cuts, and as a reducing sleeve that lets a big damped shank carry a smaller cutter. Same principle — the vibration dies in the body instead of in the workpiece.
Click any image to zoom in. Use the arrows or dots to switch images.
Type 01

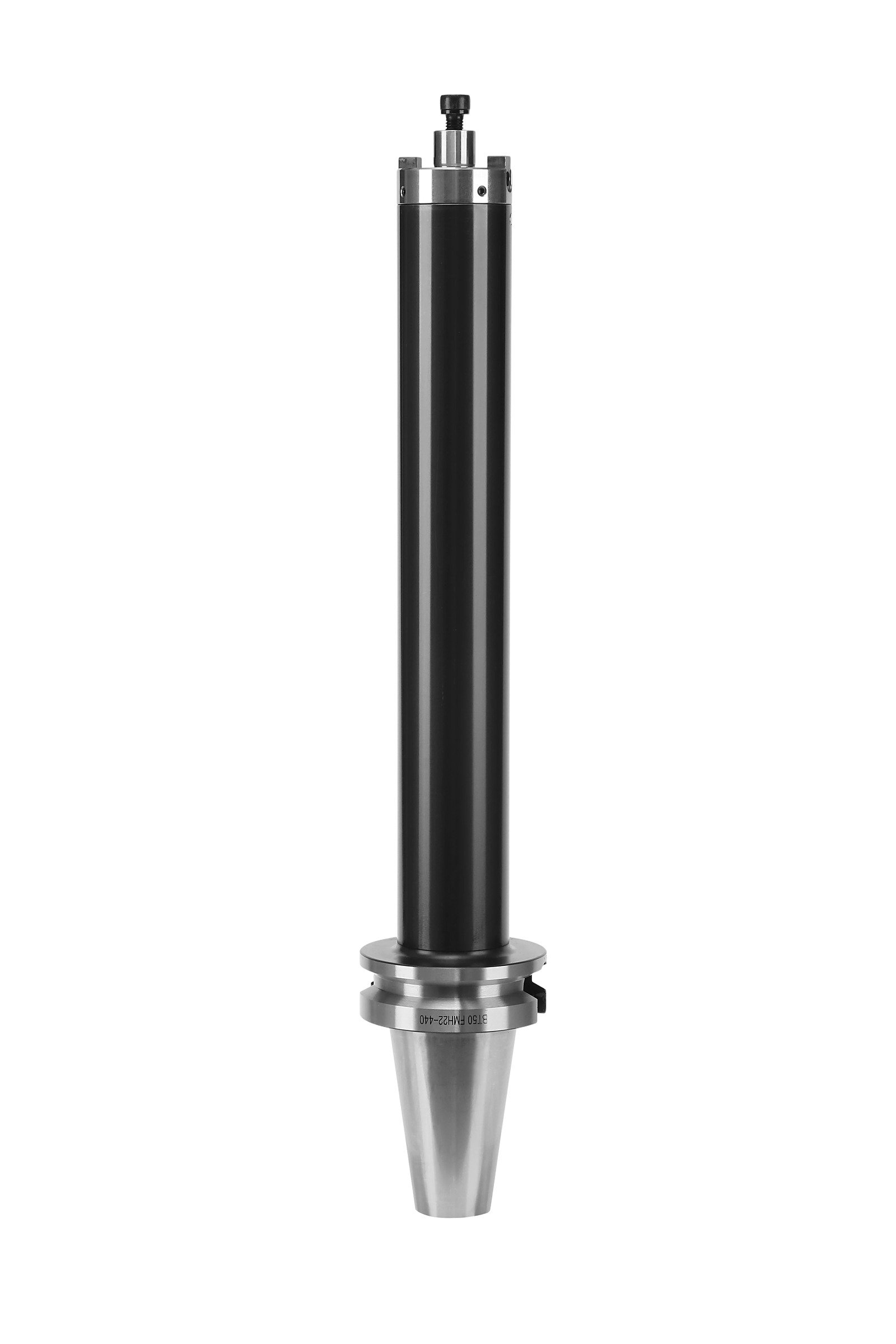

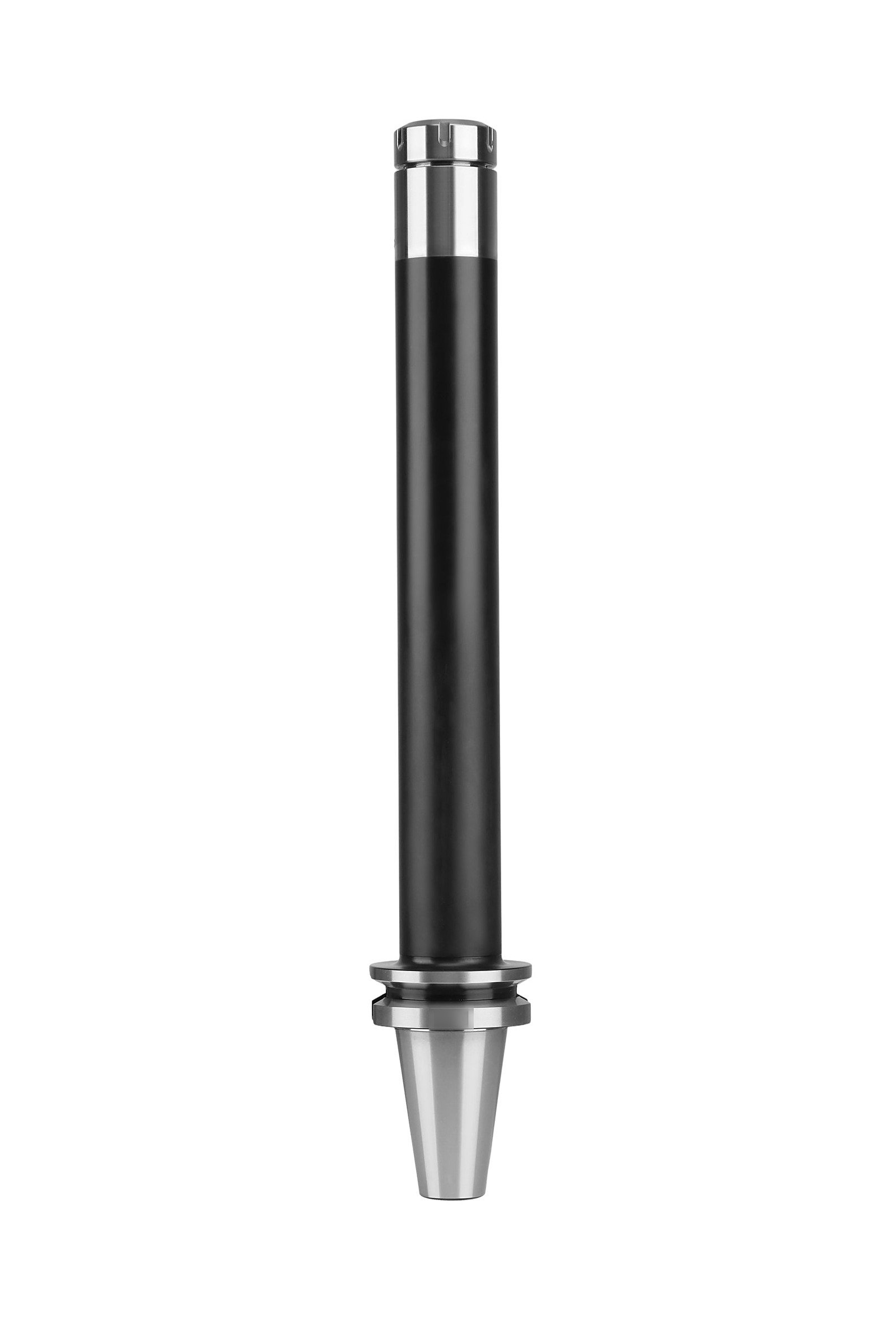

Damped Face Milling Holder — BT50 FMH
Ø48–76 mm arbors on a BT50 taper. The damped body swallows the hammering of an interrupted face-mill cut, so the insert edges last and the surface finish holds. Matched to cutter heads from Ø50 to Ø80.
Models & parameters

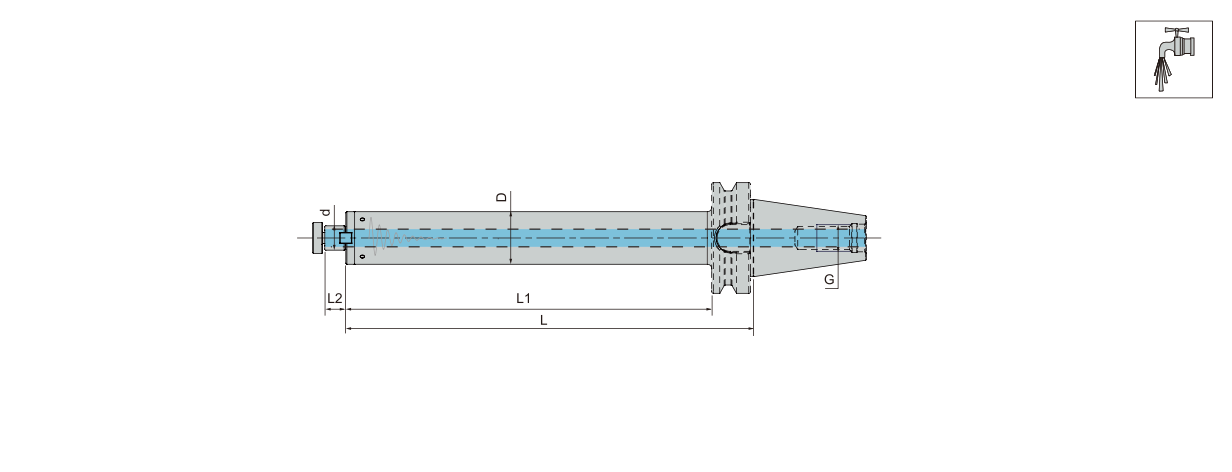

| Model | D1 (mm) | D2 (mm) | L (mm) | L1 (mm) | Matched cutter head (mm) |
|---|---|---|---|---|---|
| BT50 FMH22 D48-300 | 48 | 22 | 300 | 262 | 50 |
| BT50 FMH22 D48-400 | 48 | 22 | 400 | 362 | 50 |
| BT50 FMH22 D60-300 | 60 | 22 | 300 | 262 | 63 |
| BT50 FMH22 D60-400 | 60 | 22 | 400 | 362 | 63 |
| BT50 FMH22 D60-500 | 60 | 22 | 500 | 462 | 63 |
| BT50 FMH27 D76-400 | 76 | 27 | 400 | 362 | 80 |
| BT50 FMH27 D76-500 | 76 | 27 | 500 | 462 | 80 |
| BT50 FMH27 D76-600 | 76 | 27 | 600 | 562 | 80 |
Other lengths and cutter-head sizes quoted on request.
Type 02
Reducing Sleeve — RC Series
Ø32–60 mm reducing sleeves for lathe tooling — step a large damped shank down to a smaller cutter without giving up rigidity.
Models & parameters

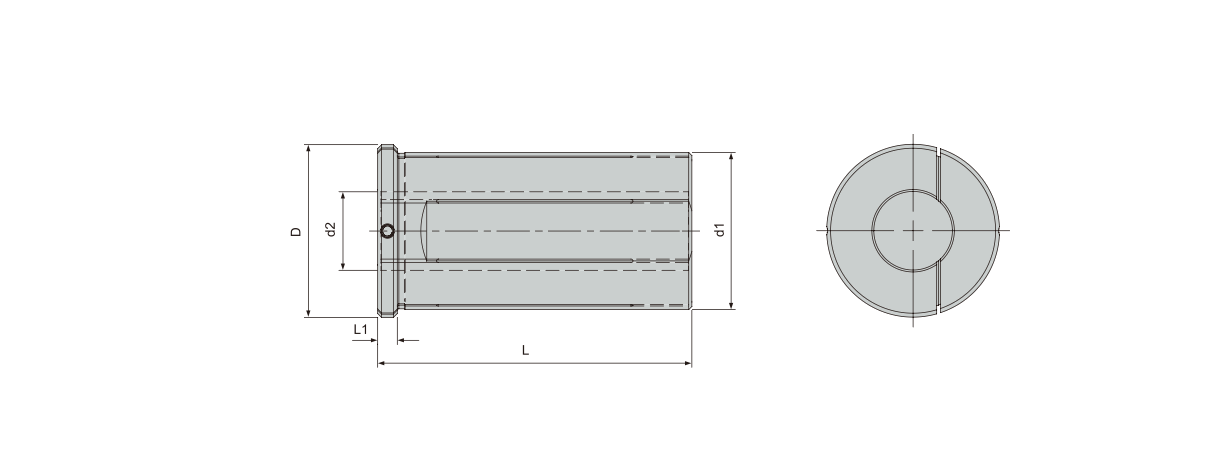

| Model | D (mm) | d1 (mm) | d2 (mm) | L (mm) | L1 (mm) |
|---|---|---|---|---|---|
| RC D32-16X65 | 36 | 32 | 16 | 65 | 5 |
| RC D32-20X80 | 36 | 32 | 20 | 80 | 5 |
| RC D32-25X105 | 38 | 32 | 25 | 105 | 5 |
| RC D40-16X65 | 44 | 40 | 16 | 65 | 5 |
| RC D40-20X80 | 44 | 40 | 20 | 80 | 5 |
| RC D40-25X105 | 44 | 40 | 25 | 105 | 5 |
| RC D40-32X128 | 50 | 40 | 32 | 128 | 5 |
| RC D50-20X80 | 56 | 50 | 20 | 80 | 5 |
| RC D50-25X105 | 56 | 50 | 25 | 105 | 5 |
| RC D50-32X128 | 60 | 50 | 32 | 128 | 5 |
| RC D50-40X160 | 60 | 50 | 40 | 160 | 5 |
| RC D60-32X128 | 70 | 60 | 32 | 128 | 5 |
| RC D60-40X160 | 70 | 60 | 40 | 160 | 5 |
| RC D60-50X200 | 70 | 60 | 50 | 200 | 5 |
D = outer diameter, d1 = shank side, d2 = cutter side.
