WVC Coolant Through Drills
The Coolant Through drills: Ø12–53 mm GG-geometry heads with coolant through at the cutting edge and hardened, polished bodies — up to 10×D, even into stacked plates and 5° inclined surfaces with Coolant Through Drills.
- Ø12–53 mm
- Up to 10×D · coolant through drills
- Stacked plates & 5° inclined entry
Built for Accuracy. Designed for Uptime.
WVC combines a 100° prismatic head seat with coolant outlets right at the cutting edge — maximum process reliability and tool life in general machining, mold, energy, and automotive work.
- Ø12–53 mm with GG geometry heads
- Coolant delivered directly to the cutting edge
- Hardened, polished bodies with low-friction flutes
- Stacked-plate drilling and up to 5° inclined entry/exit

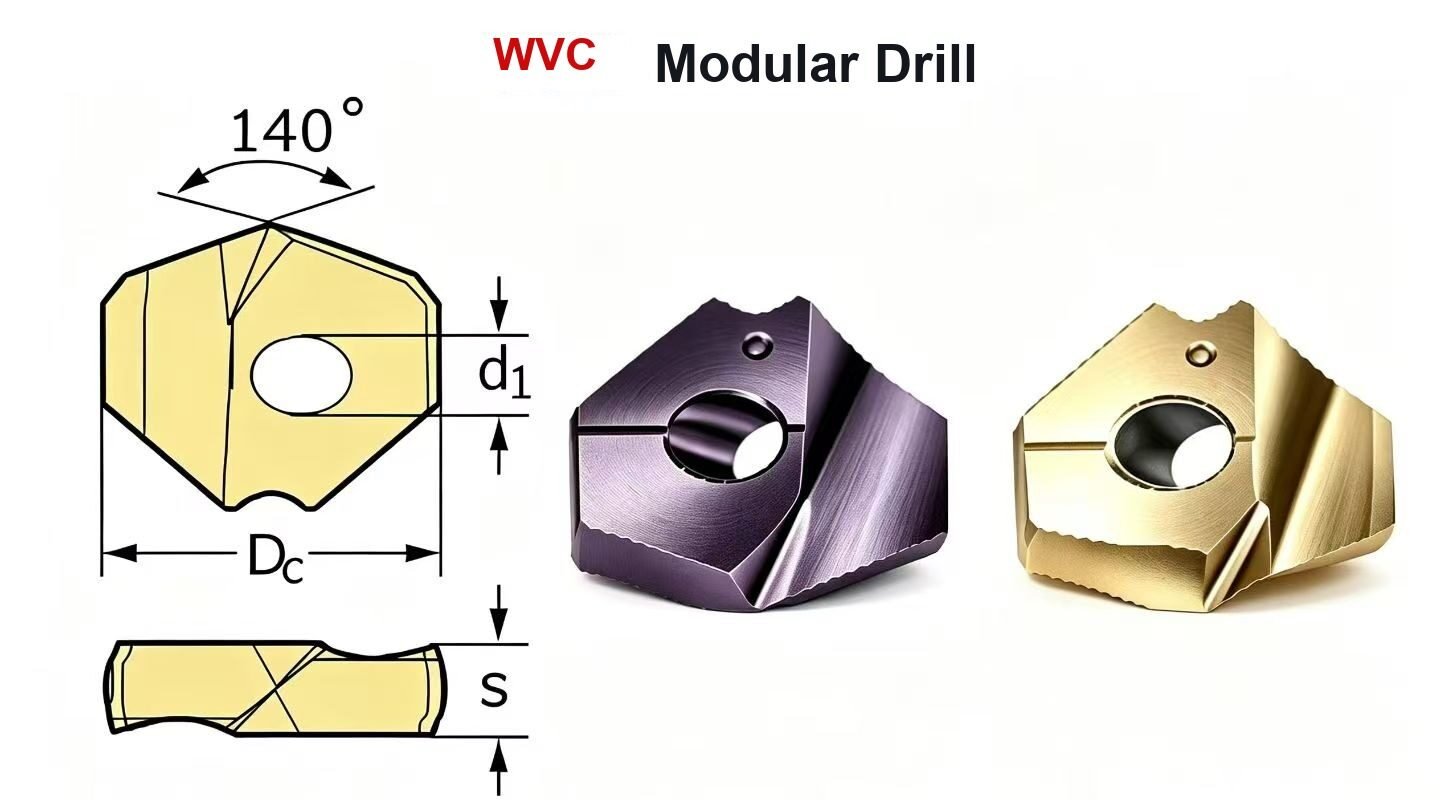

WVC Inserts — GG Groove
Selected representative sizes. Dc = cutting diameter, S = insert thickness.
| Model | Dc (mm) | S (mm) |
|---|---|---|
| WVC1200GG | 12.00 | 3.6 |
| WVC1250GG | 12.50 | 3.6 |
| WVC1330GG | 13.30 | 3.6 |
| WVC1400GG | 14.00 | 4.0 |
| WVC1500GG | 15.00 | 4.0 |
| WVC1650GG | 16.50 | 4.5 |
| WVC1700GG | 17.00 | 4.5 |
| WVC1800GG | 18.00 | 5.0 |
| WVC1900GG | 19.00 | 5.0 |
| WVC2000GG | 20.00 | 5.5 |
| WVC2200GG | 22.00 | 5.6 |
| WVC2500GG | 25.00 | 6.5 |
| WVC2700GG | 27.00 | 7.1 |
| WVC2900GG | 29.00 | 7.7 |
| WVC3100GG | 31.00 | 8.0 |
| WVC3300GG | 33.00 | 8.3 |
| WVC3500GG | 35.00 | 8.6 |
| WVC3700GG | 37.00 | 8.9 |
Grades WV3015 / WV3010 / K10 per stock marks in the catalog. Complete range Ø12–38 mm, 0.1–0.5 mm steps — full list on request.

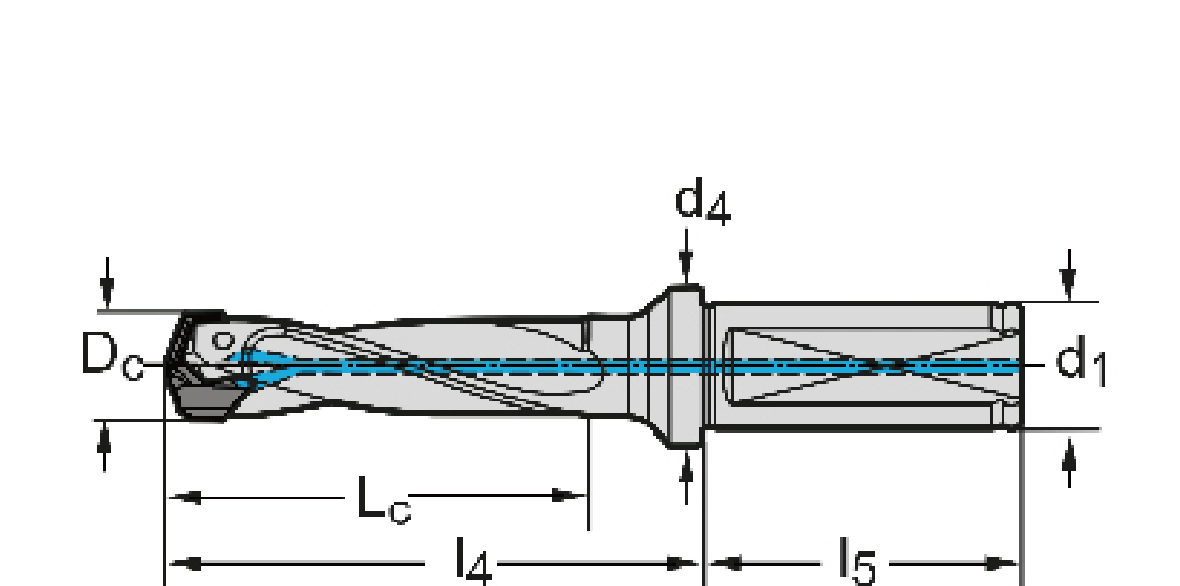

WVC Body Series — R3 (3×D)
Body model code = Diameter + Depth ratio + Shank. All dimensions in mm.
| Model | Dc (mm) | Depth | Shank | Dc MAX (mm) | Shank Ø d1 (mm) |
|---|---|---|---|---|---|
| WVC120R3T16M | 12.0 | 3×D | T16M | 12.99 | 16 |
| WVC130R3T16M | 13.0 | 3×D | T16M | 13.99 | 16 |
| WVC140R3T16M | 14.0 | 3×D | T16M | 14.99 | 16 |
| WVC150R3T16M | 15.0 | 3×D | T16M | 15.99 | 16 |
| WVC160R3T20M | 16.0 | 3×D | T20M | 16.99 | 20 |
| WVC170R3T20M | 17.0 | 3×D | T20M | 17.99 | 20 |
| WVC180R3T20M | 18.0 | 3×D | T20M | 18.99 | 20 |
| WVC190R3T20M | 19.0 | 3×D | T20M | 19.99 | 20 |
| WVC200R3T20M | 20.0 | 3×D | T20M | 20.99 | 20 |
| WVC210R3T20M | 21.0 | 3×D | T20M | 21.99 | 20 |
| WVC220R3T25M | 22.0 | 3×D | T25M | 22.99 | 25 |
| WVC230R3T25M | 23.0 | 3×D | T25M | 23.99 | 25 |
| WVC240R3T25M | 24.0 | 3×D | T25M | 24.99 | 25 |
| WVC250R3T25M | 25.0 | 3×D | T25M | 25.99 | 25 |
| WVC260R3T25M | 26.0 | 3×D | T25M | 26.99 | 25 |
| WVC270R3T25M | 27.0 | 3×D | T25M | 27.99 | 25 |
| WVC280R3T32M | 28.0 | 3×D | T32M | 28.99 | 32 |
| WVC290R3T32M | 29.0 | 3×D | T32M | 29.99 | 32 |
| WVC300R3T32M | 30.0 | 3×D | T32M | 30.99 | 32 |
| WVC310R3T32M | 31.0 | 3×D | T32M | 31.99 | 32 |
| WVC320R3T40M | 32.0 | 3×D | T40M | 32.99 | 40 |
| WVC330R3T40M | 33.0 | 3×D | T40M | 33.99 | 40 |
| WVC340R3T40M | 34.0 | 3×D | T40M | 34.99 | 40 |
| WVC350R3T40M | 35.0 | 3×D | T40M | 35.99 | 40 |
| WVC360R3T40M | 36.0 | 3×D | T40M | 36.99 | 40 |
| WVC370R3T40M | 37.0 | 3×D | T40M | 37.99 | 40 |
R5 / R7 / R10 depth ratios available on request. Dc MAX = maximum cutting diameter. Scroll sideways on mobile.
Engineered Details That Pay Off
Every WVC detail is designed to keep the process running — reliably, hole after hole.
Coolant at the Cutting Edge
Direct coolant outlets protect the head and extend tool life.
Polished, Hardened Bodies
Polished flutes move chips out reliably; hardened surfaces wear longer.
100° Prismatic Seat
Secure clamping and precise holes, head after head.
5° Inclined Entry
Drill stacked plates and inclined surfaces up to 5° with confidence.
Applications: general machinery · mold & die · energy · automotive
Why Machinists Choose WVC
Process Reliability
Coolant-through plus a stable seat keeps every hole on spec.
Up to 10×D
Deep reach from a compact modular system.
Fast Head Change
The prismatic seat makes head swaps quick and repeatable.
Hardened Body
Quenched and polished surfaces resist wear.
Versatile Materials
Steel, stainless steel, and cast iron across core industries.
Application Ready
General machinery, mold, energy, and automotive — proven in the field.
Specifications at a Glance
- Diameter range: Ø12 – 53 mm
- Depth ratios: R3 / R5 / R7 / R10 (up to 10×D)
- Geometry: GG groove
- Coolant: through-tool, outlets at the cutting edge
- Body: hardened and polished
- Applications: general machinery, mold & die, energy, automotive · stacked plates · ≤5° inclined entry
Frequently Asked Questions
GG heads deliver low cutting forces and excellent centering — an all-round geometry for consistent, accurate holes.
Yes — WVC handles inclined entry and exit up to 5°, and stacked-plate drilling.
Steel, stainless steel, and cast iron, across general machinery, mold & die, energy, and automotive work.
Standard PVD grades for steel and cast iron — tell us your material and we will spec the right grade and groove.
Up to 10×D with R3, R5, R7, and R10 bodies.
Please contact us for current MOQ and lead times — we reply within 1 business day.
Put Reliability Into Every Hole
Tell us your application — material, depth, and entry conditions — and we will spec the right WVC package with pricing within 1 business day.
