WVV Large Diameter Drills
WVV large diameter drills are available in Ø32–101 mm standard sizes, with custom sizes up to Ø127 mm. The design uses twin cutting edges for high productivity drilling.
- Ø32–101 mm · custom to 127 mm
- Depth varies by application; contact Winvera to confirm.
- Twin cutting edges for high-productivity drilling
Double the Cutting Edge. Double the Output.
WVV large diameter drills use twin cutting edges for high-productivity drilling. Standard sizes range from Ø32–101 mm, with custom sizes up to Ø127 mm. Contact Winvera to confirm a configuration for your application.
- Standard Ø32–101 mm; custom intermediate sizes to Ø127 mm
- 5×D–10×D from stock; custom bodies to 20×D and 1200 mm
- BTFL butterfly interface — two head types, one body system

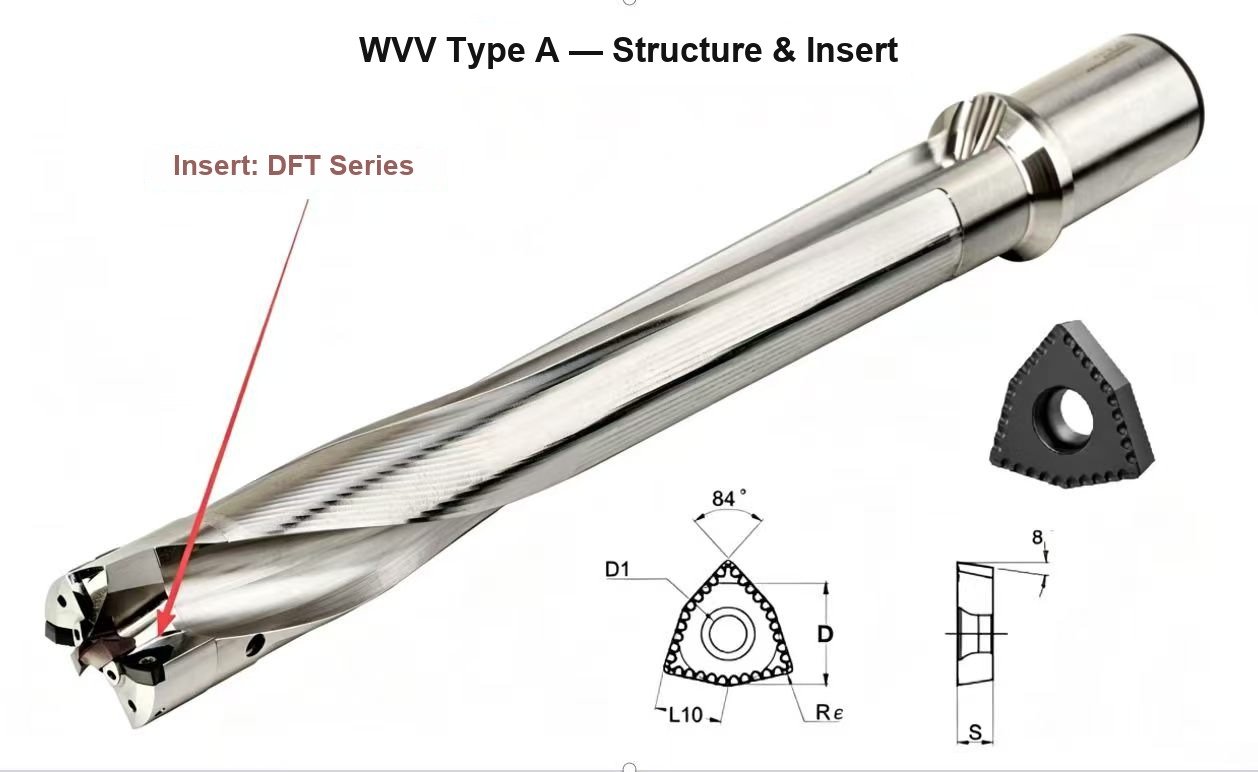

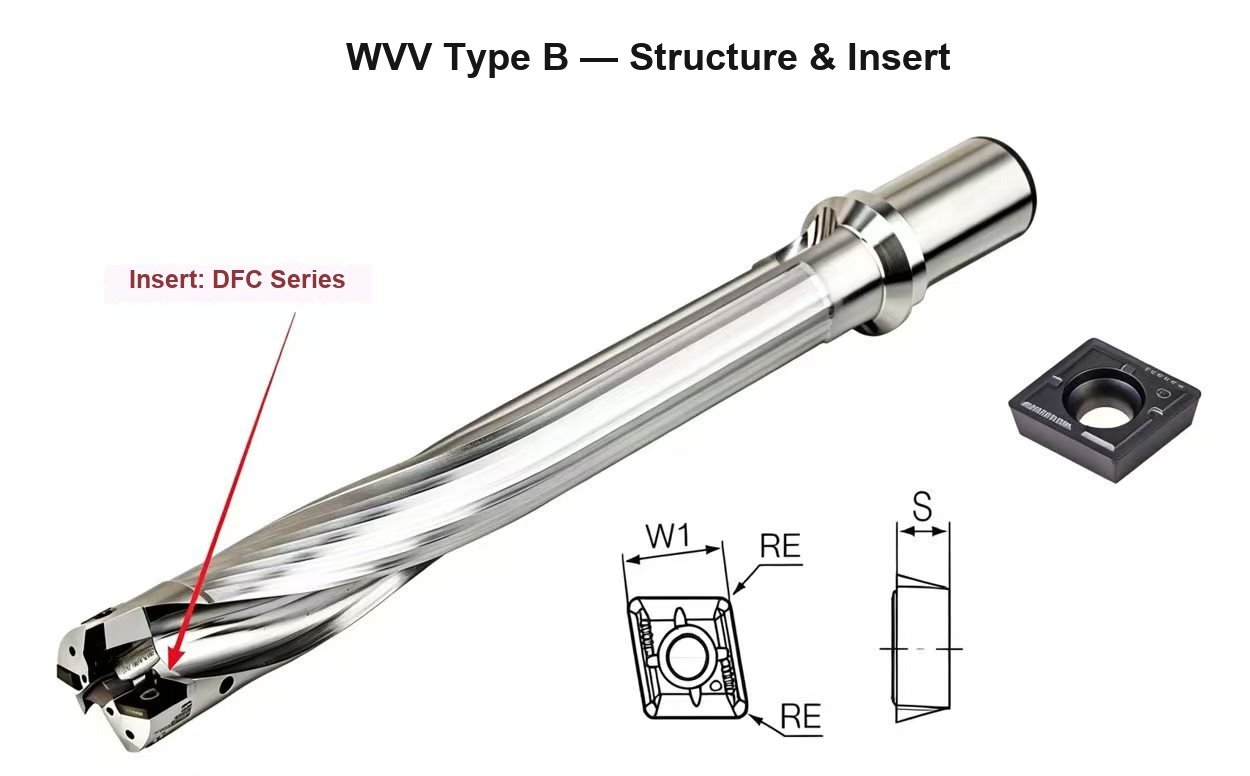

- Center insert (WV3015 / WV3010) plus WCMT outer inserts
WVV Body Series — 4×D to 9×D

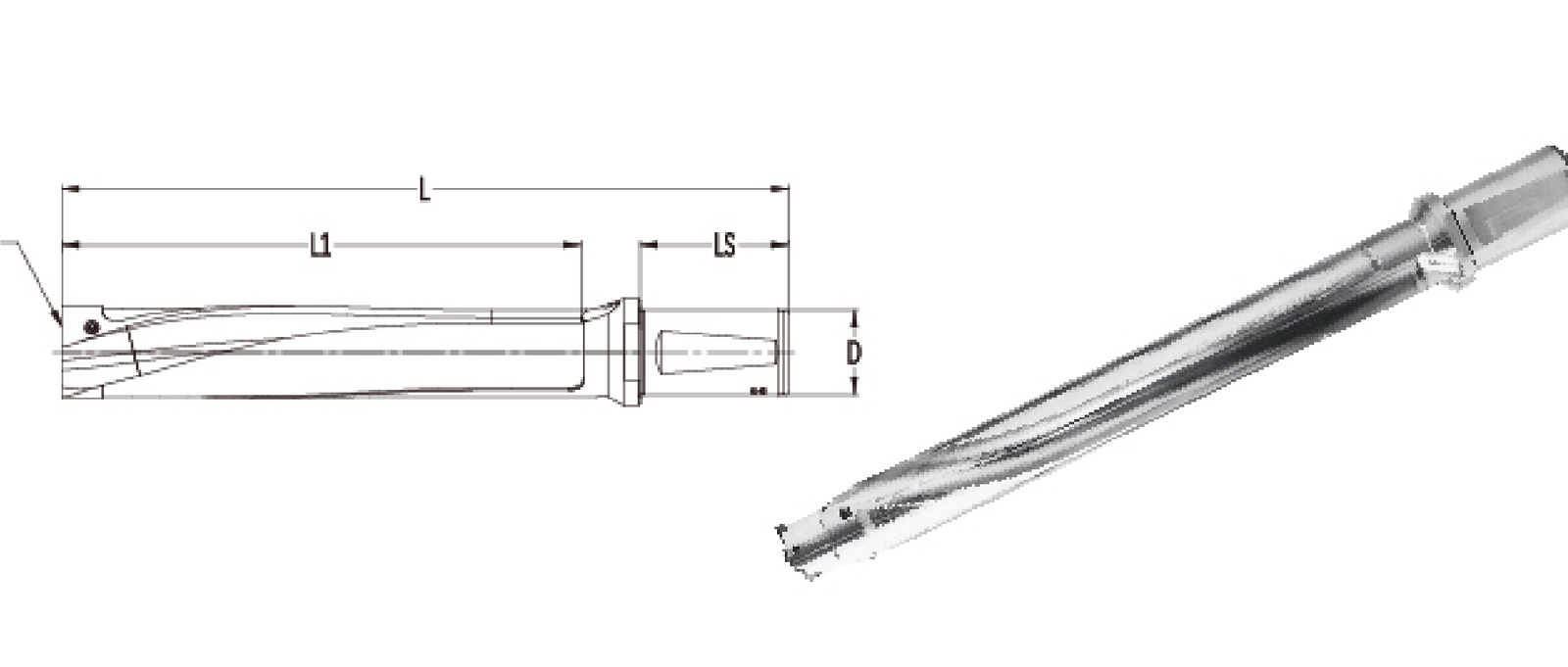

Full shank data — model code = Diameter + Depth ratio + Shank. All dimensions in mm.
4×D – 7×D Bodies
| Model | D (mm) | L(mm) | L1 (mm) | LS (mm) |
|---|---|---|---|---|
| WVV450R4HE50M-KN | 50 | 302 | 218.4 | 70 |
| WVV500R4HE50M-KN | 50 | 302 | 218.4 | 70 |
| WVV560R4HE50M-KN | 50 | 335 | 256.5 | 70 |
| WVV320R5HE40M-KN | 32 | 265 | 188.3 | 60 |
| WVV390R5HE40M-KN | 36 | 274 | 202.37 | 60 |
| WVV450R5HE50M-KN | 40 | 324 | 239 | 70 |
| WVV580R5HE50M-KN | 56 | 385 | 300 | 70 |
| WVV450R6HE50M-KN | 40 | 400 | 305 | 70 |
| WVV480R6HE50M-KN | 45 | 400 | 305 | 70 |
| WVV390R7HE40M-KN | 32 | 381.5 | 306.5 | 60 |
| WVV450R7HE50M-KN | 36 | 381.5 | 306.5 | 60 |
| WVV480R7HE50M-KN | 45 | 431.3 | 336.3 | 70 |
| WVV500R7HE50M-KN | 45 | 444 | 359 | 70 |
| WVV560R7HE50M-KN | 50 | 460.6 | 381.8 | 70 |
| WVV600R7HE50M-KN | 56 | 538.25 | 468.25 | 70 |
8×D / 9×D Bodies
| Model | IF | D (mm) | L1 (mm) | L2 (mm) | LS (mm) |
|---|---|---|---|---|---|
| WVV330R8HE40M-KN | 32 | 32 | 395.2 | 318.5 | 60 |
| WVV350R8HE40M-KN | 32 | 32 | 386.2 | 309.5 | 60 |
| WVV390R8HE40M-KN | 36 | 32 | 422 | 347 | 60 |
| WVV440R8HE50M-KN | 40 | 40 | 431 | 346 | 70 |
| WVV450R8HE50M-KN | 45 | 40 | 465 | 380 | 70 |
| WVV470R8HE50M-KN | 45 | 40 | 492 | 407 | 70 |
| WVV500R8HE50M-KN | 50 | 40 | 510.6 | 431.8 | 70 |
| WVV520R8HE50M-KN | 50 | 50 | 563 | 463 | 80 |
| WVV600R9HE50M-KN | 56 | 50 | 663.5 | 574.2 | 80 |
BTFL butterfly interface · central SC3015/SC3010 insert + WCMT outer inserts · standard 5×D–10×D, custom to 20×D. Scroll sideways on mobile.
Built for Big Holes, Built Fast
WVV is engineered for large-diameter drilling where every minute of cycle time matters.
Twin Cutting Edges
Two complete edges in the cut — up to 100% higher productivity.
BTFL Interface
The butterfly interface accepts two head types on one body.
Spiral-Flute Bodies
Optional spiral flutes for better chip evacuation in cast iron.
Custom-Ready
Intermediate diameters to 127 mm, bodies to 1200 mm, regrindable center inserts.
Performance note: beyond 20×D, depth capability is application-dependent — our engineers will confirm feasibility.
Why Machinists Choose WVV
Up to 100% Higher Productivity
Twin edges cut cycle times versus same-size modular drills.
Diameters to 127 mm
Custom intermediate sizes cover every large-hole job.
Depths to 20×D
5×D–10×D from stock; custom bodies to 20×D.
Steel, Cast Iron & Stainless
Purpose-built inserts for ferrous, stainless, and advanced materials.
Bodies to 1200 mm
Extra-long bodies for deep components.
Custom Center Inserts
Regrindable center inserts and custom geometries on request.
Specifications at a Glance
- Diameter: Ø32 – 101 mm standard · custom to 127 mm
- Depth: 5×D – 10×D standard · custom to 20×D
- Body length: up to 1200 mm custom
- Interface: BTFL butterfly
- Inserts: central WV3015 (steel) / WV3010 (cast iron) + WCMT outer inserts
- Materials: steel, cast iron, stainless steel, advanced materials
Frequently Asked Questions
WVV uses two full cutting edges simultaneously, raising productivity by up to 100% compared with a same-size modular drill.
Yes — custom sizes up to Ø127 mm are available.
5×D–10×D from standard stock. Custom bodies reach 20×D; beyond that, feasibility depends on the application.
Steel, cast iron, stainless steel, and advanced materials.
Yes — spiral flutes improve chip evacuation, especially in cast iron.
Please contact us for current MOQ and lead times — we reply within 1 business day.
