Damped Boring Heads for Stable Machining

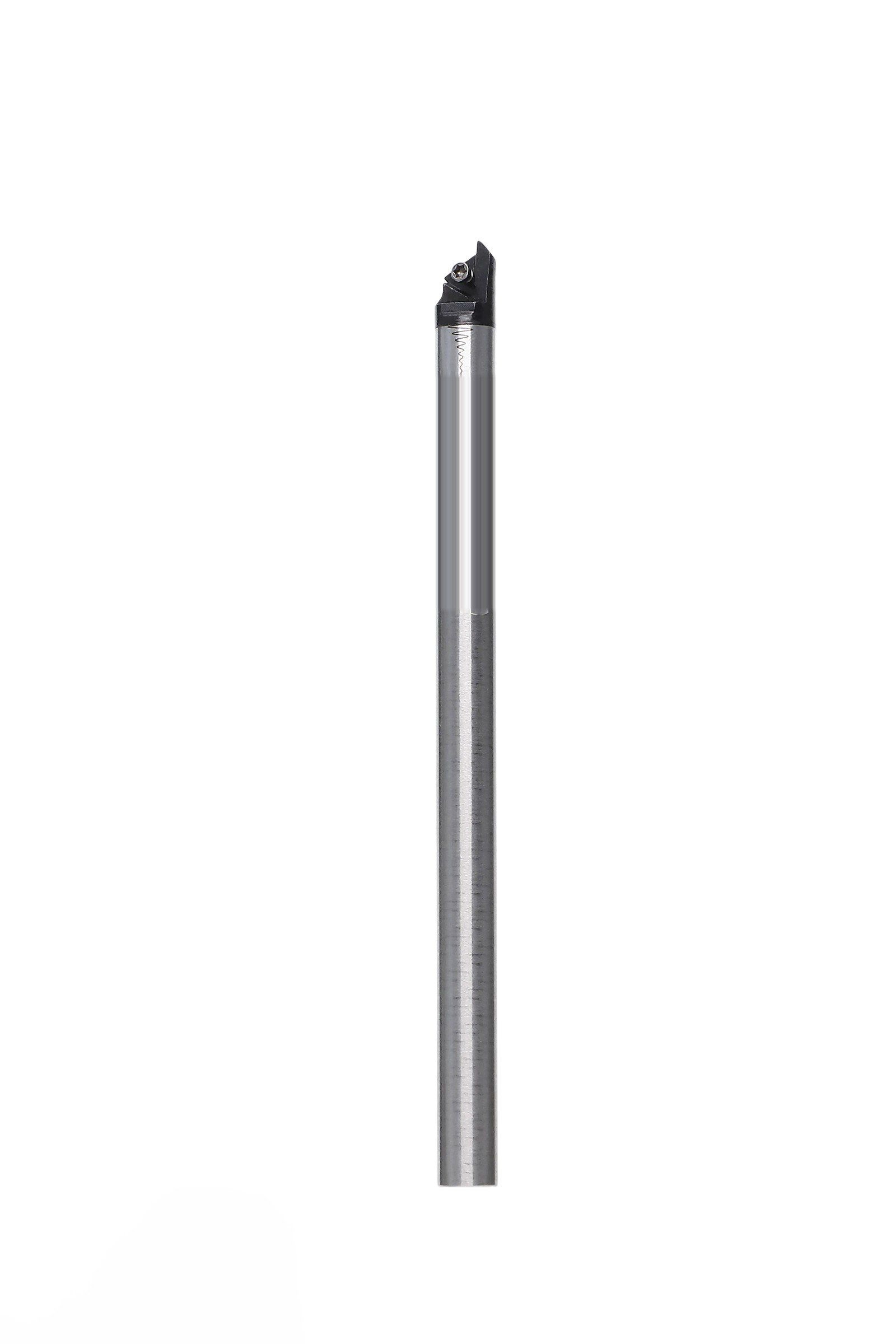

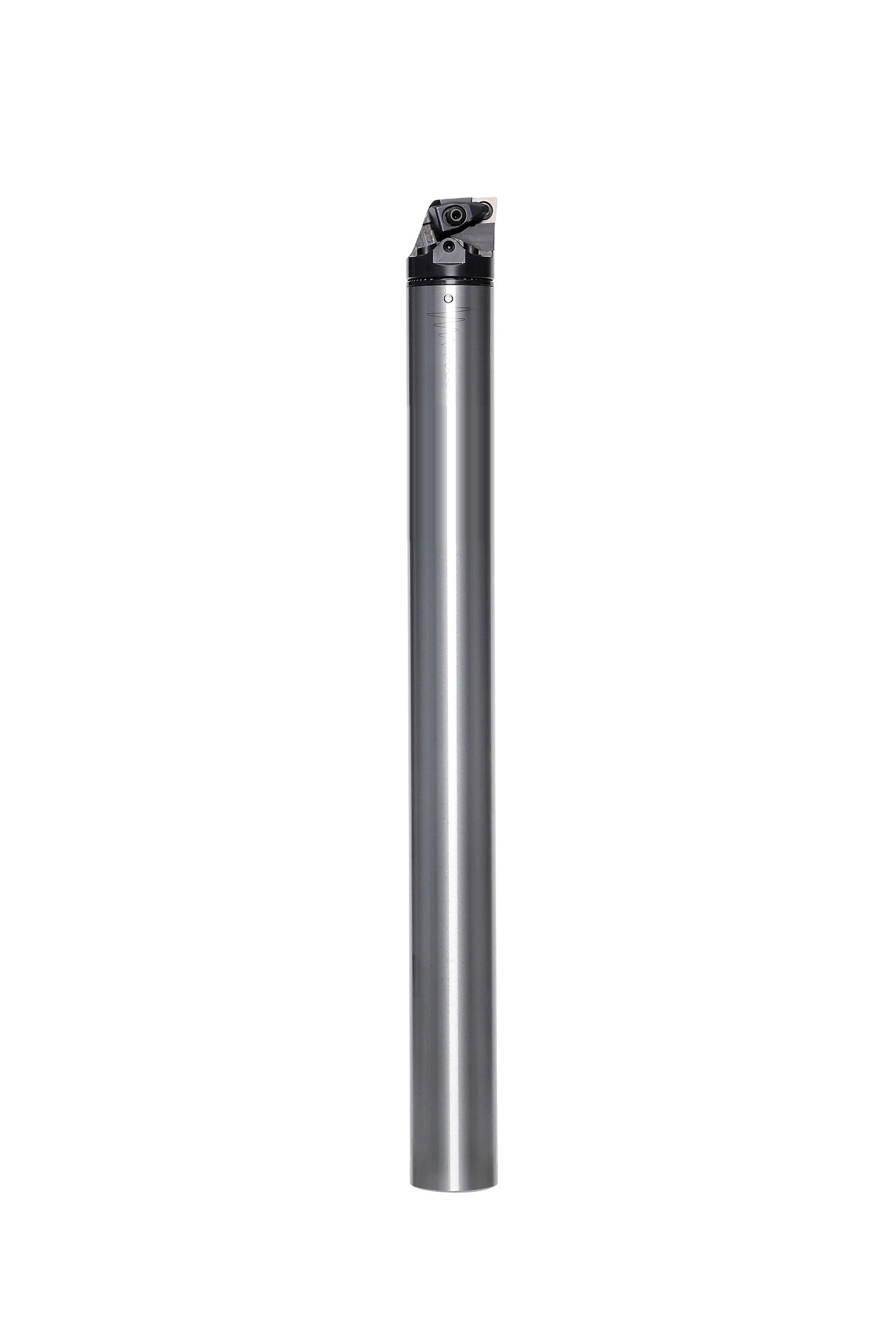

One damped holder, 16 head families, 116 models. Pick the insert shape you already run — the heads below all fit the same WVD damping shank.

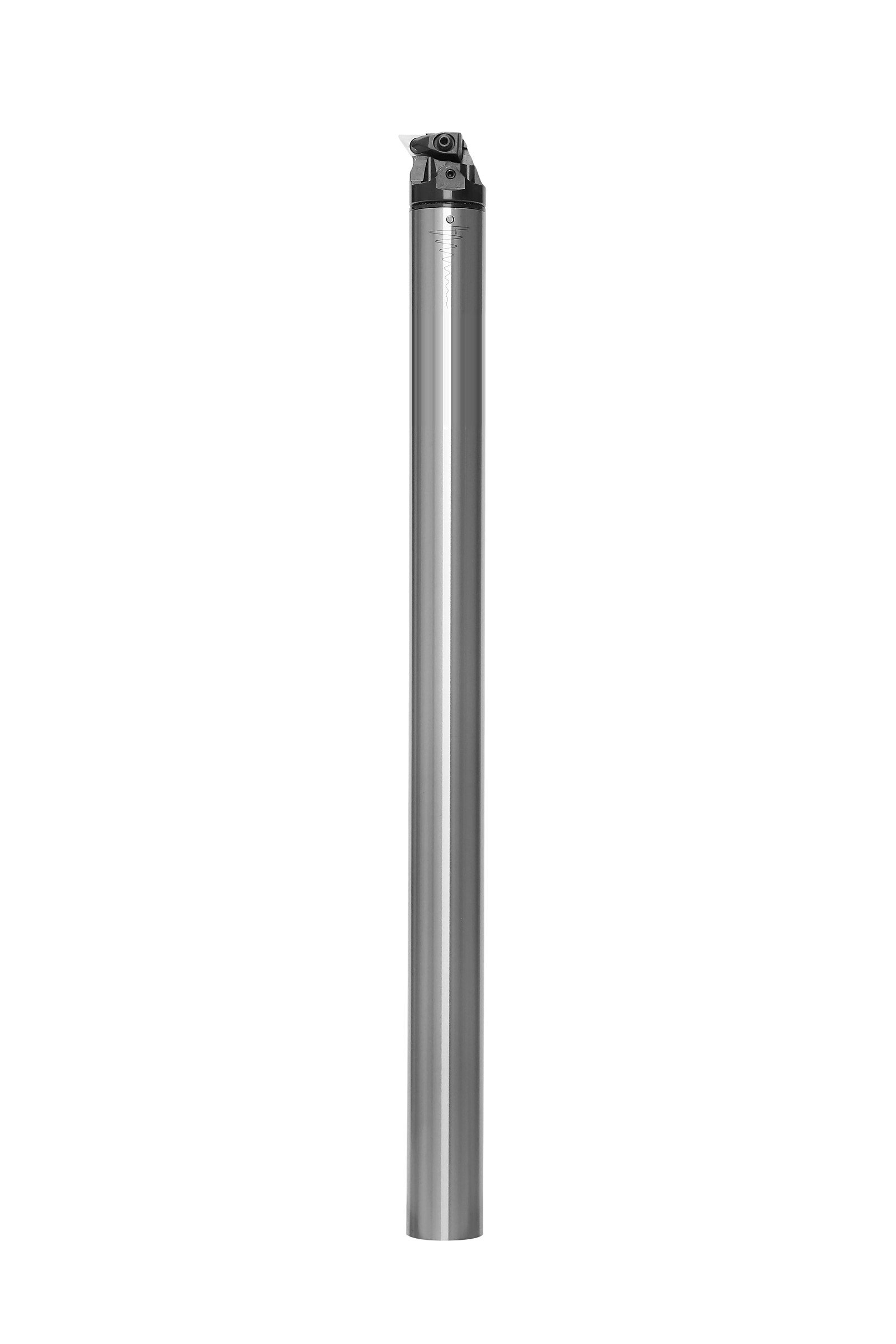

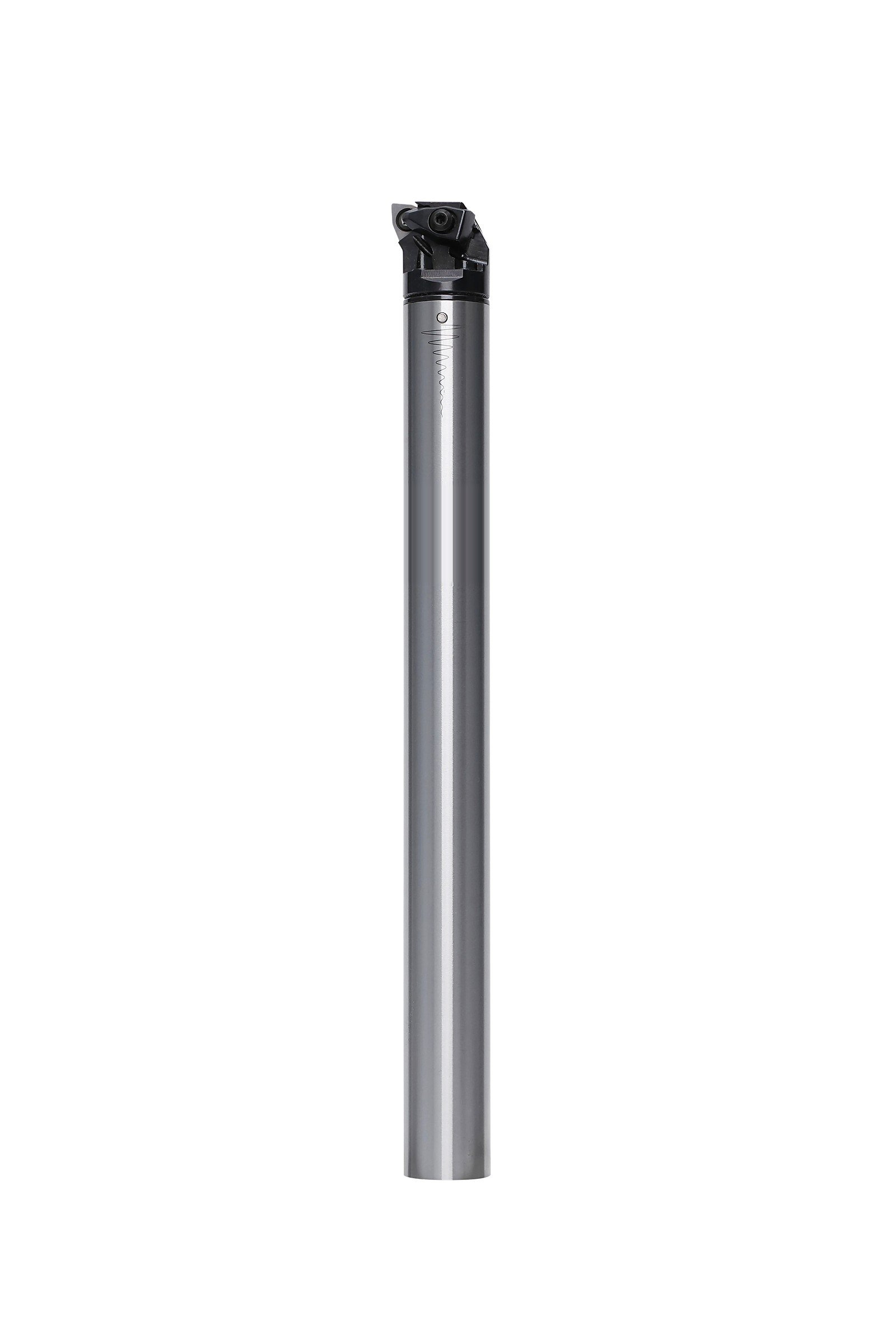

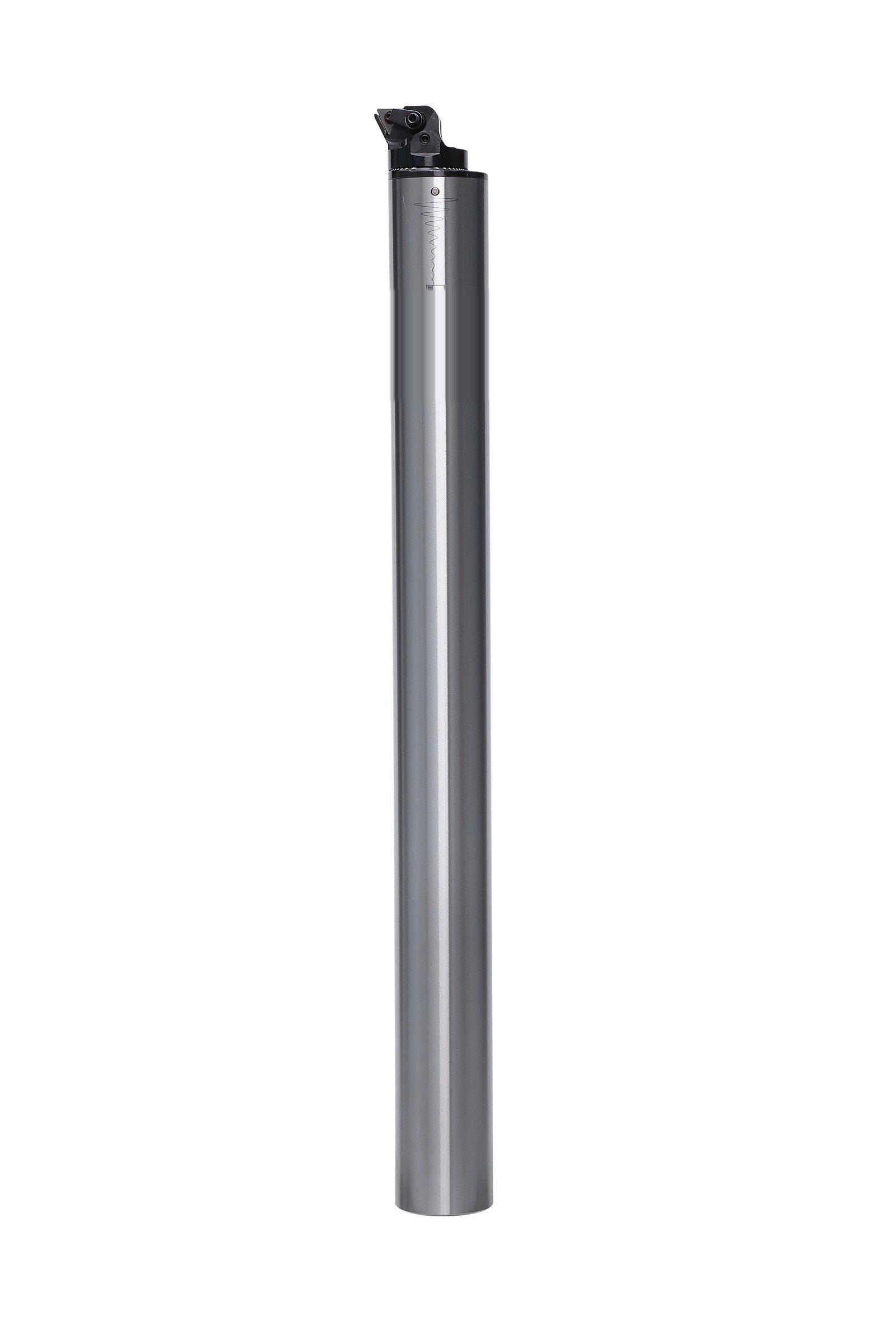

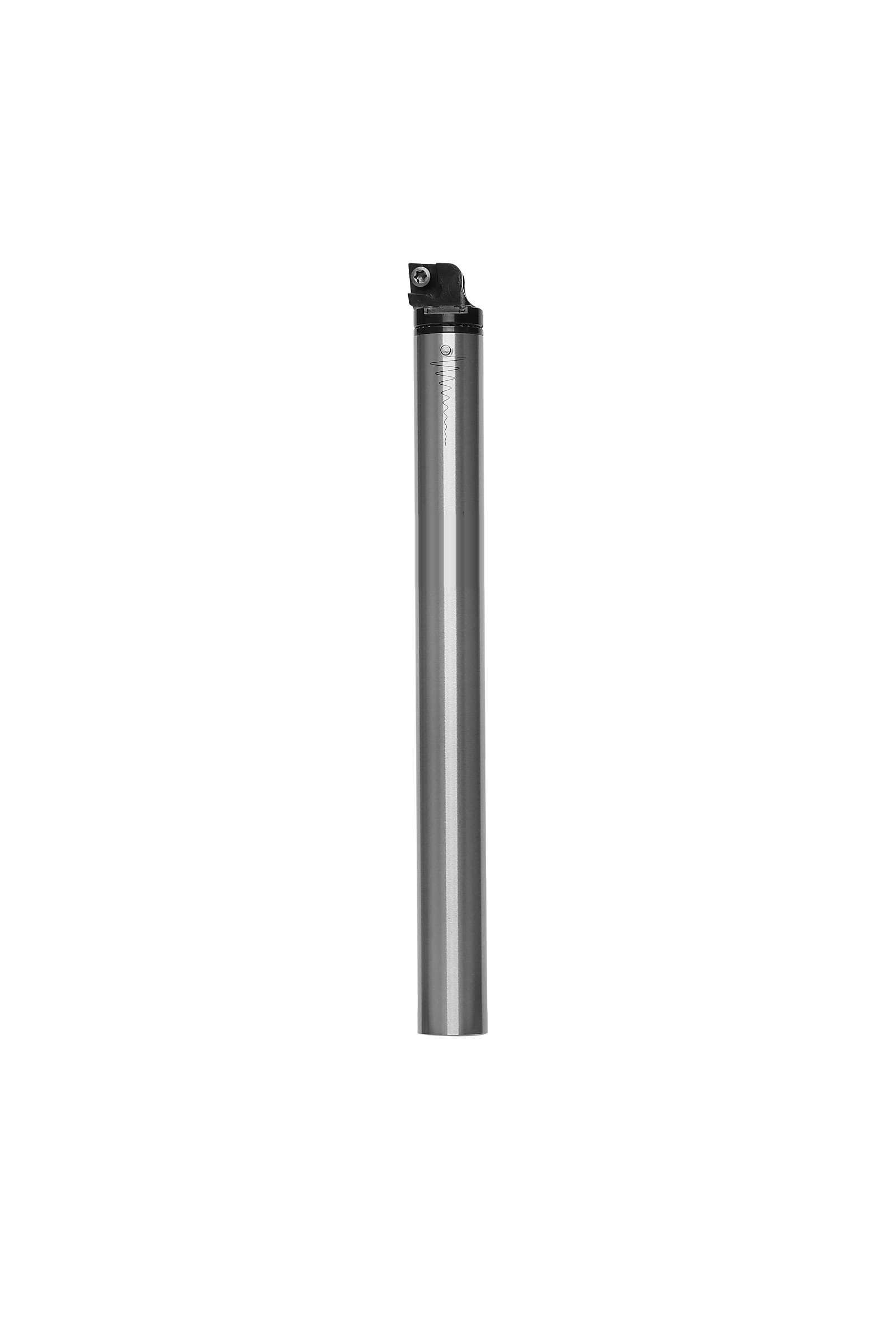

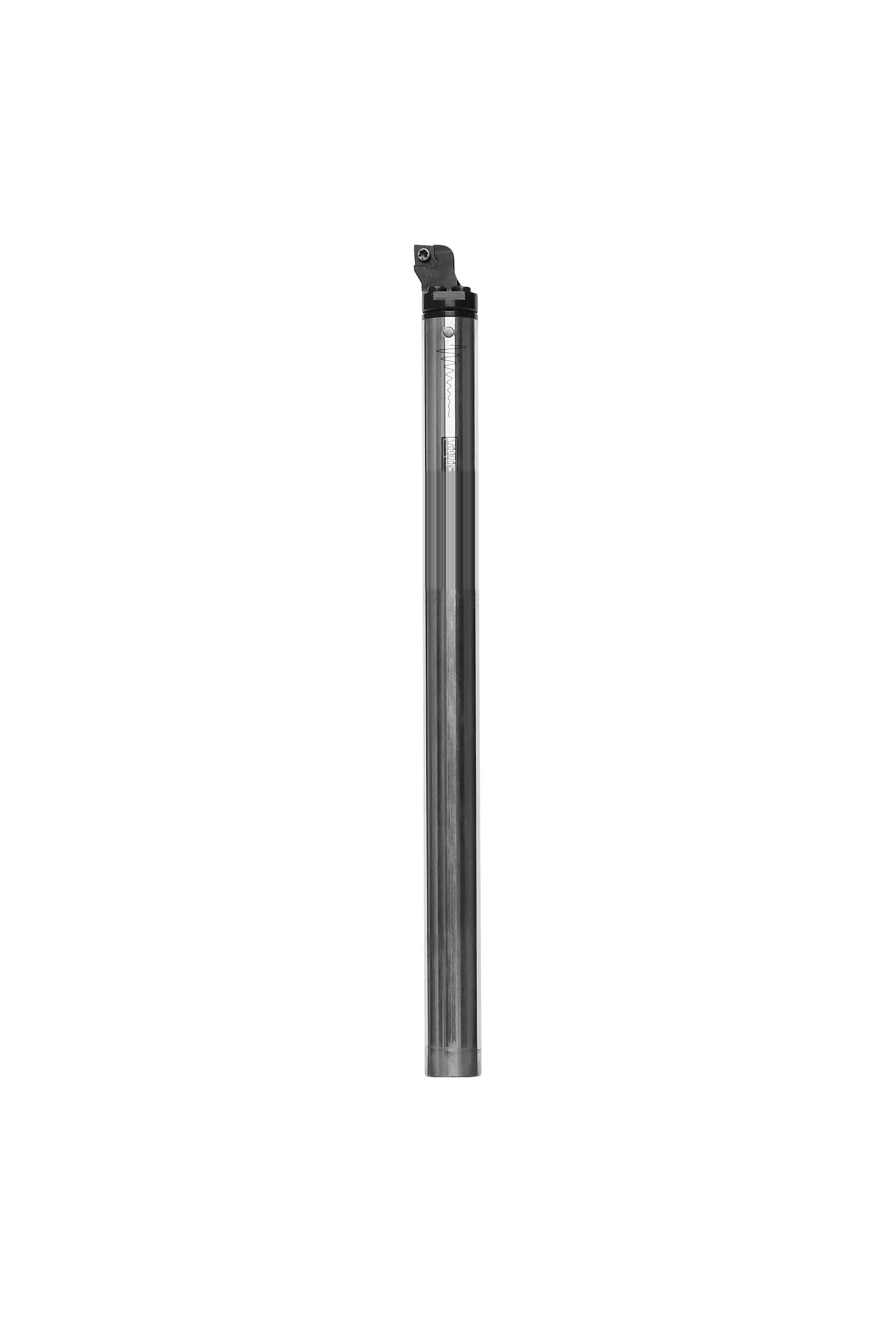

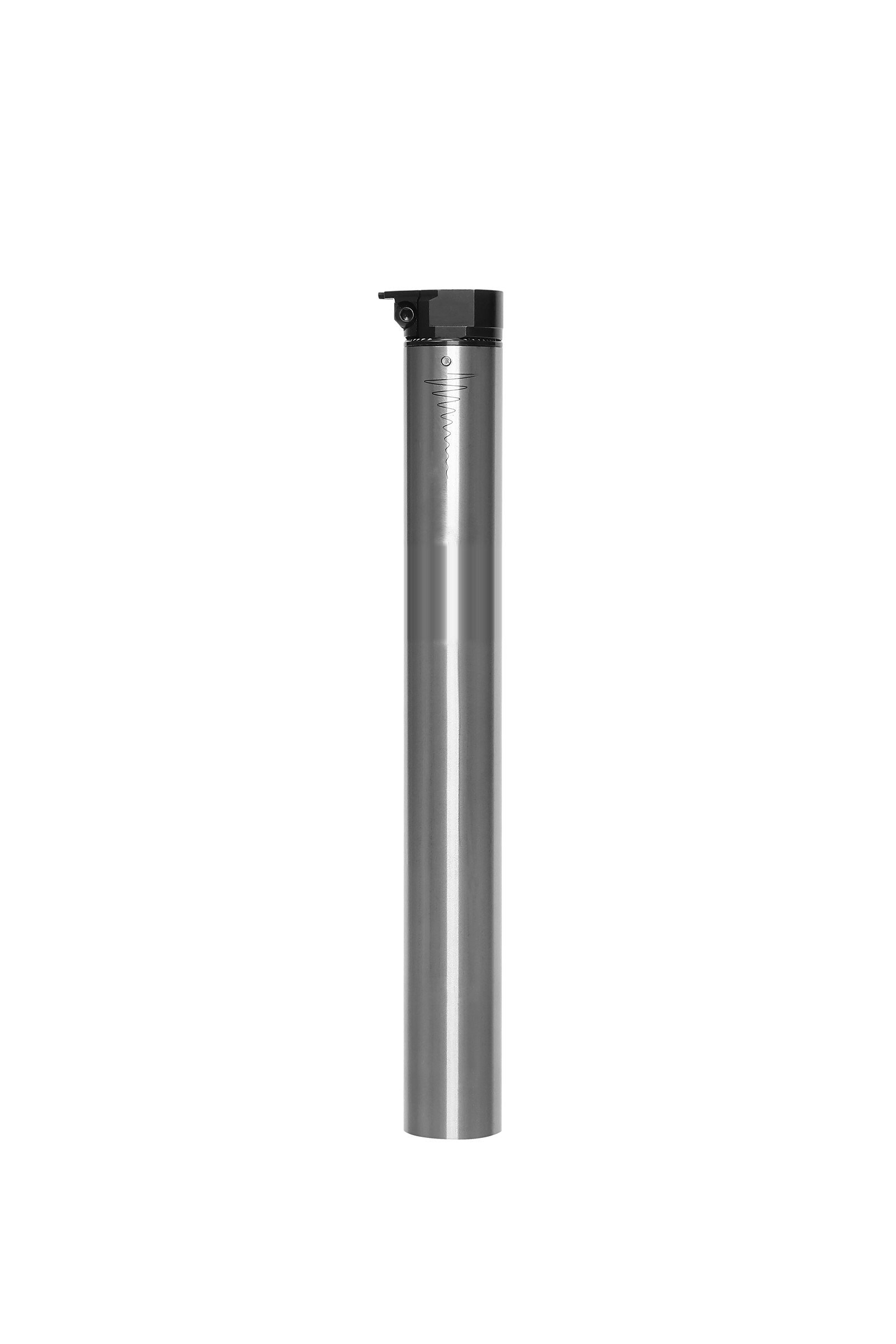

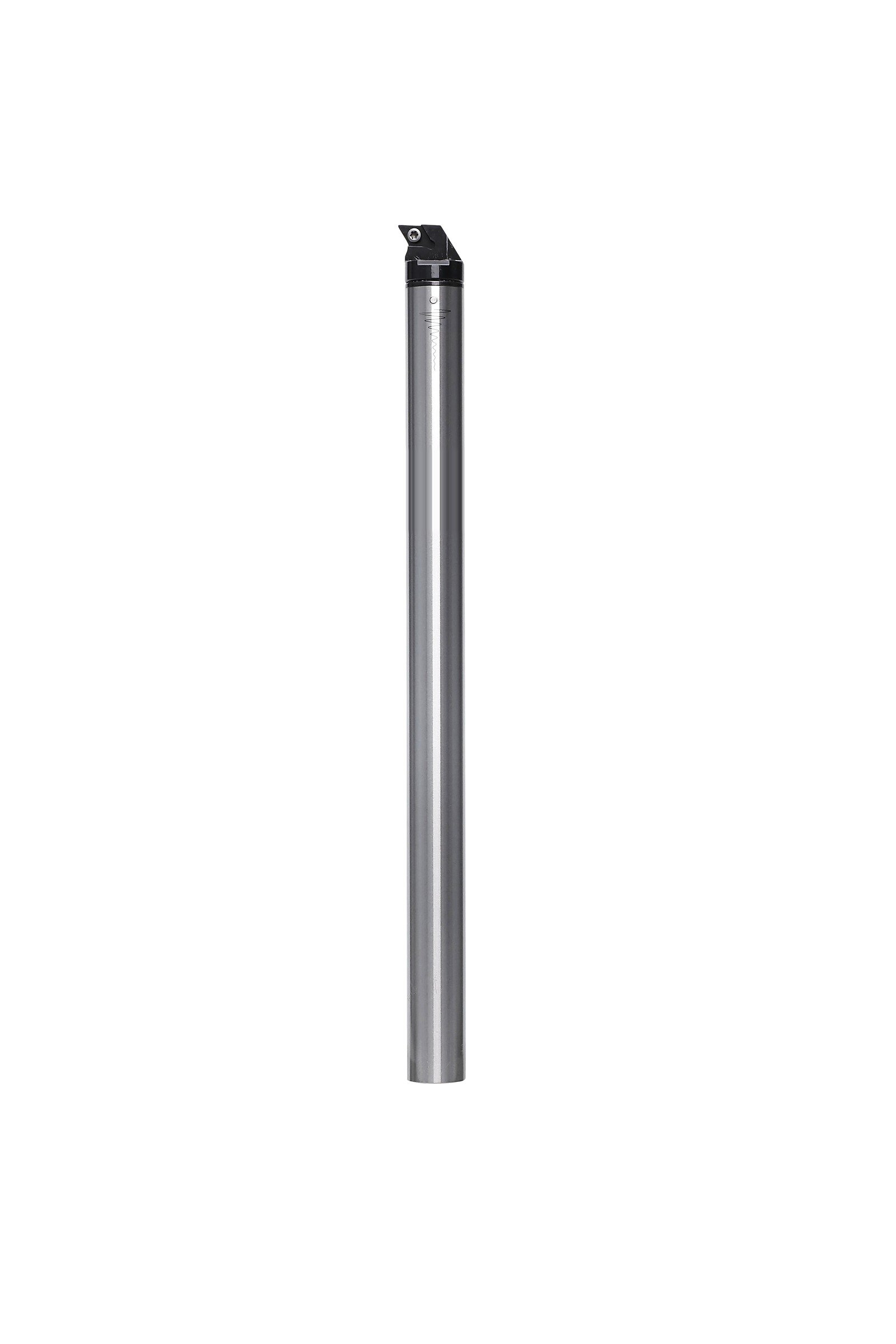

The range
Auto-scrolling · hover to pause · hover an image to magnify
Which insert do you run?

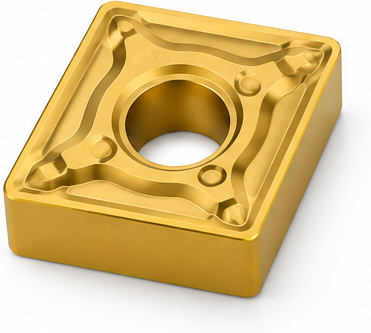

C — 80° rhombic
2 heads · 18 models
For general boring and profiling on stable setups.
D — 55° rhombic
6 heads · 44 models
The widest range: boring, back boring and copying.
V — 35° rhombic
4 heads · 16 models
Sharp point — for profiling, back boring and thin walls.
T — triangular
1 head · 12 models
Three edges per insert — lowest cost per edge.
W — hexagonal
1 head · 6 models
Six edges, strong negative geometry.
G / T — grooving / threading
2 heads · 20 models
Grooving and thread-turning heads on the same damped shank.
2 heads · 18 models
C — 80° rhombic insert
For general boring and profiling on stable setups.

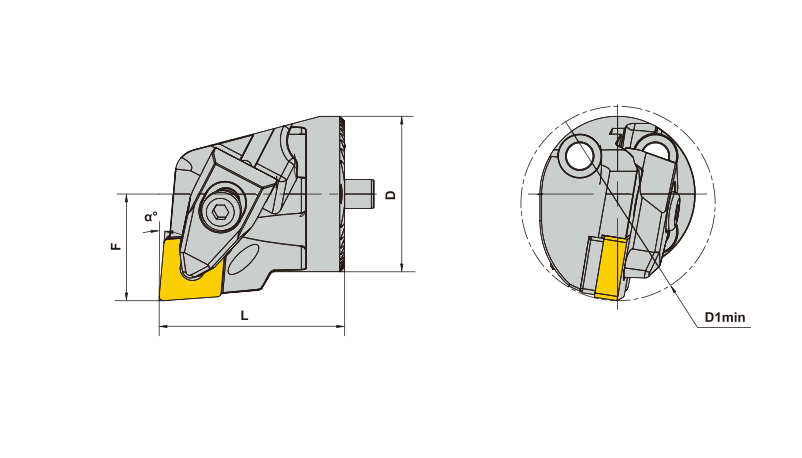

WV SCLCR / SCLCL — Positive 95° Boring Head · 12 models
| Model | D | D1min | F | L | a° | Insert |
|---|---|---|---|---|---|---|
| WV16 SCLCR-06 | 16 | 20 | 11 | 20 | 5° | CC..0602 |
| WV20 SCLCR-09 | 20 | 25 | 13 | 20 | 5° | CC..09T3 |
| WV25 SCLCR-09 | 25 | 32 | 17 | 20 | 5° | CC..09T3 |
| WV32 SCLCR-09 | 32 | 40 | 22 | 32 | 5° | CC..09T3 |
| WV40 SCLCR-12T | 40 | 50 | 27 | 38 | 5° | CC..1204 |
| WV16 SCLCL-06 | 16 | 20 | 11 | 20 | 5° | CC..0602 |
| WV20 SCLCL-09 | 20 | 25 | 13 | 20 | 5° | CC..09T3 |
| WV25 SCLCL-09 | 25 | 32 | 17 | 20 | 5° | CC..09T3 |
| WV32 SCLCL-09 | 32 | 40 | 22 | 32 | 5° | CC..09T3 |
| WV40 SCLCL-12T | 40 | 50 | 27 | 38 | 5° | CC..1204 |
| WV80 SCLCR-12T | 80 | 100 | 57 | 45 | 5° | CC..1204 |
| WV80 SCLCL-12T | 80 | 100 | 57 | 45 | 5° | CC..1204 |
WV DCLNR / DCLNL — Negative 95° Boring Head · 6 models
| Model | D | D1min | F | L | a° | Insert |
|---|---|---|---|---|---|---|
| WV32 DCLNR-12T | 32 | 40 | 22 | 38 | 5° | CN..1204 |
| WV40 DCLNR-12T | 40 | 50 | 27 | 38 | 5° | CN..1204 |
| WV32 DCLNL-12T | 32 | 40 | 22 | 38 | 5° | CN..1204 |
| WV40 DCLNL-12T | 40 | 50 | 27 | 38 | 5° | CN..1204 |
| WV80 DCLNR-12T | 80 | 100 | 57 | 45 | 5° | CN..1204 |
| WV80 DCLNL-12T | 80 | 100 | 57 | 45 | 5° | CN..1204 |
6 heads · 44 models

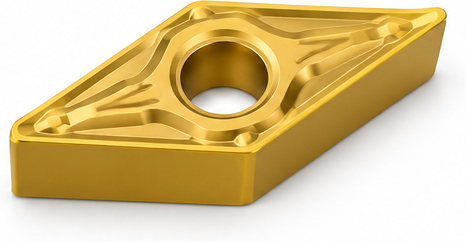

D — 55° rhombic insert
The widest range: boring, back boring and copying.

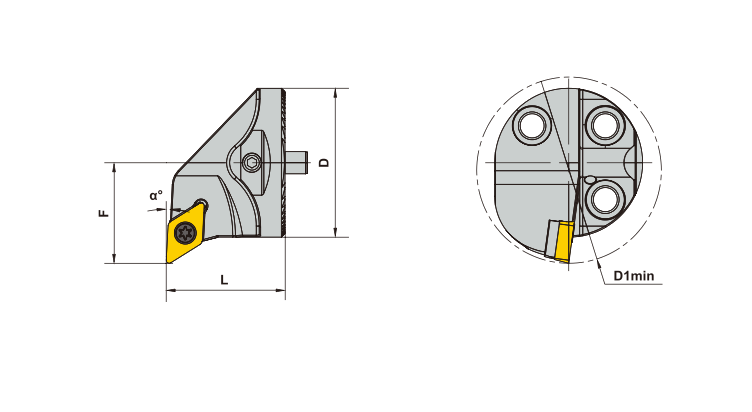

WV SDUCR / SDUCL — Positive 93° Boring Head · 12 models
| Model | D | D1min | F | L | a° | K° | Insert |
|---|---|---|---|---|---|---|---|
| WV16 SDUCR-07 | 16 | 20 | 11 | 20 | 3° | 27° | DC..0702 |
| WV20 SDUCR-11 | 20 | 25 | 13 | 20 | 3° | 27° | DC..11T3 |
| WV25 SDUCR-11 | 25 | 32 | 17 | 20 | 3° | 27° | DC..11T3 |
| WV32 SDUCR-11T | 32 | 40 | 22 | 32 | 3° | 27° | DC..11T3 |
| WV40 SDUCR-11T | 40 | 50 | 27 | 32 | 3° | 27° | DC..11T3 |
| WV16 SDUCL-07 | 16 | 20 | 11 | 20 | 3° | 27° | DC..0702 |
| WV20 SDUCL-11 | 20 | 25 | 13 | 20 | 3° | 27° | DC..11T3 |
| WV25 SDUCL-11 | 25 | 32 | 17 | 20 | 3° | 27° | DC..11T3 |
| WV32 SDUCL-11T | 32 | 40 | 22 | 32 | 3° | 27° | DC..11T3 |
| WV40 SDUCL-11T | 40 | 50 | 27 | 32 | 3° | 27° | DC..11T3 |
| WV80 SDUCR-11T | 80 | 100 | 57 | 45 | 3° | 27° | DC..11T3.. |
| WV80 SDUCL-11T | 80 | 100 | 57 | 45 | 3° | 27° | DC..11T3.. |

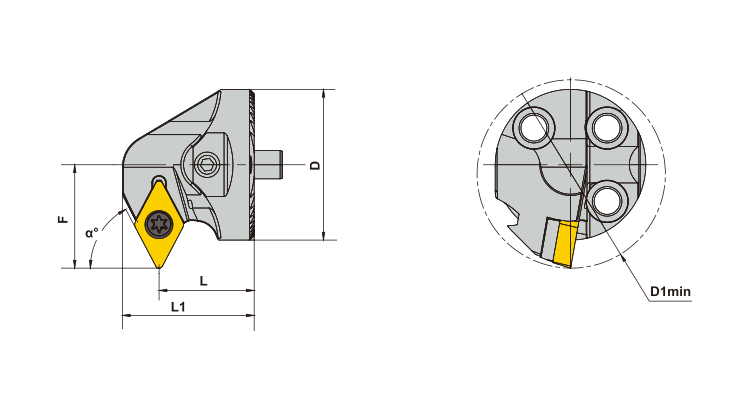

WV SDPCR / SDPCL — Positive 93° Back Boring Head · 10 models
| Model | D | D1min | F | L | L1 | a° | K° | Insert |
|---|---|---|---|---|---|---|---|---|
| WV16 SDPCR-07 | 16 | 22 | 13 | 15 | 19 | 62.5° | 60° | DC..0702 |
| WV20 SDPCR-07 | 20 | 27 | 15 | 15 | 19 | 62.5° | 60° | DC..0702 |
| WV25 SDPCR-07 | 25 | 33 | 18 | 15 | 19 | 62.5° | 60° | DC..0702 |
| WV32 SDPCR-11T | 32 | 40 | 22 | 20 | 28 | 62.5° | 60° | DC..11T3 |
| WV40 SDPCR-11T | 40 | 50 | 27 | 20 | 28 | 62.5° | 60° | DC..11T3 |
| WV16 SDPCL-07 | 16 | 22 | 13 | 15 | 19 | 62.5° | 60° | DC..0702 |
| WV20 SDPCL-07 | 20 | 27 | 15 | 15 | 19 | 62.5° | 60° | DC..0702 |
| WV25 SDPCL-07 | 25 | 33 | 18 | 15 | 19 | 62.5° | 60° | DC..0702 |
| WV32 SDPCL-11T | 32 | 40 | 22 | 20 | 28 | 62.5° | 60° | DC..11T3 |
| WV40 SDPCL-11T | 40 | 50 | 27 | 20 | 28 | 62.5° | 60° | DC..11T3 |

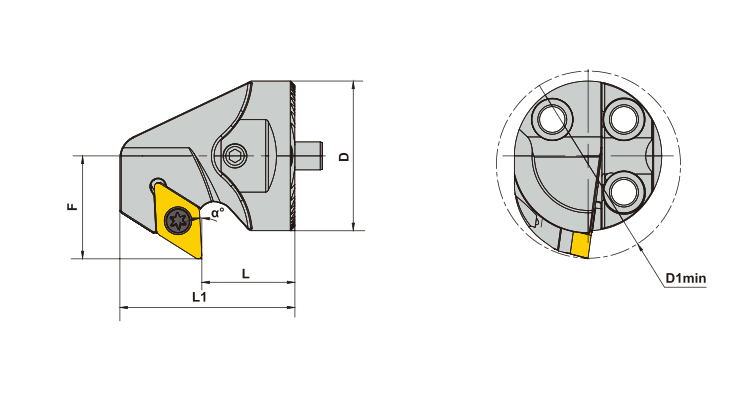

WV SDZCR / SDZCL — Positive 62.5° Copying Head · 10 models
| Model | D | D1min | F | L | L1 | a° | K° | Insert |
|---|---|---|---|---|---|---|---|---|
| WV16 SDZCR-07 | 16 | 22 | 13 | 15 | 27 | 3° | 27° | DC..0702 |
| WV20 SDZCR-07 | 20 | 27 | 15 | 15 | 27 | 3° | 27° | DC..0702 |
| WV25 SDZCR-07 | 25 | 33 | 18 | 15 | 27 | 3° | 27° | DC..0702 |
| WV32 SDZCR-11T | 32 | 40 | 22 | 20 | 38 | 3° | 27° | DC..11T3 |
| WV40 SDZCR-11T | 40 | 50 | 27 | 20 | 38 | 3° | 27° | DC..11T3 |
| WV16 SDZCL-07 | 16 | 22 | 13 | 15 | 27 | 3° | 27° | DC..0702 |
| WV20 SDZCL-07 | 20 | 27 | 15 | 15 | 27 | 3° | 27° | DC..0702 |
| WV25 SDZCL-07 | 25 | 33 | 18 | 15 | 27 | 3° | 27° | DC..0702 |
| WV32 SDZCL-11T | 32 | 40 | 22 | 20 | 38 | 3° | 27° | DC..11T3 |
| WV40 SDZCL-11T | 40 | 50 | 27 | 20 | 38 | 3° | 27° | DC..11T3 |

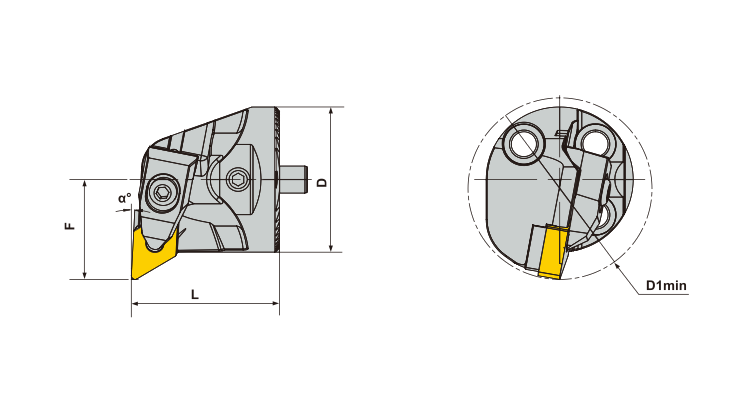

WV DDUNL / DDUNR — Negative 93° Boring & Copying Head · 8 models
| Model | D | D1min | F | L | a° | K° | Insert |
|---|---|---|---|---|---|---|---|
| WV32 DDUNL-11T | 32 | 40 | 22 | 32 | 3° | 27° | DN..1104 |
| WV40 DDUNL-15T | 40 | 50 | 27 | 38 | 3° | 27° | DN..1506 |
| WV32 DDUNR-11T | 32 | 40 | 22 | 32 | 3° | 27° | DN..1104 |
| WV40 DDUNR-15T | 40 | 50 | 27 | 38 | 3° | 27° | DN..1506 |
| WV40 DVUNR-16T | 40 | 56 | 34 | 38 | 3° | 25° | VN..1604 |
| WV40 DVUNL-16T | 40 | 56 | 34 | 38 | 3° | 25° | VN..1604 |
| WV80 DDUNR-15T | 80 | 100 | 57 | 46 | 3° | 27° | DN..1506 |
| WV80 DDUNL-15T | 80 | 100 | 57 | 46 | 3° | 27° | DN..1506 |

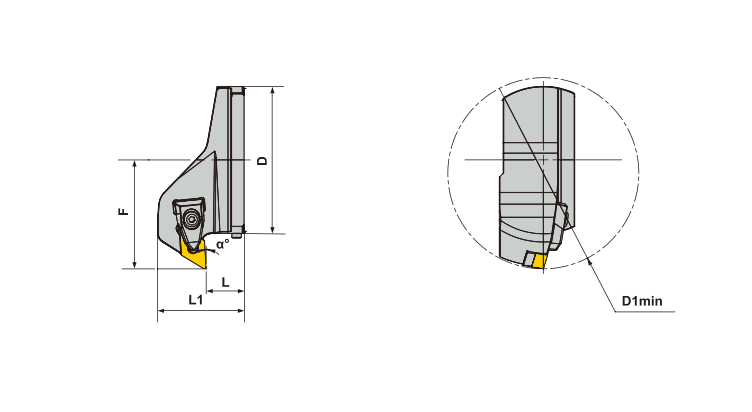

WV DDZNR / DDZNL — Negative 93° Back Boring Head · 2 models
| Model | D | D1min | F | L | L1 | a° | K° | Insert |
|---|---|---|---|---|---|---|---|---|
| WV80 DDZNR-15T | 80 | 100 | 57 | 20 | 45 | 3° | 27° | DN..1506 |
| WV80 DDZNL-15T | 80 | 100 | 57 | 20 | 45 | 3° | 27° | DN..1506 |

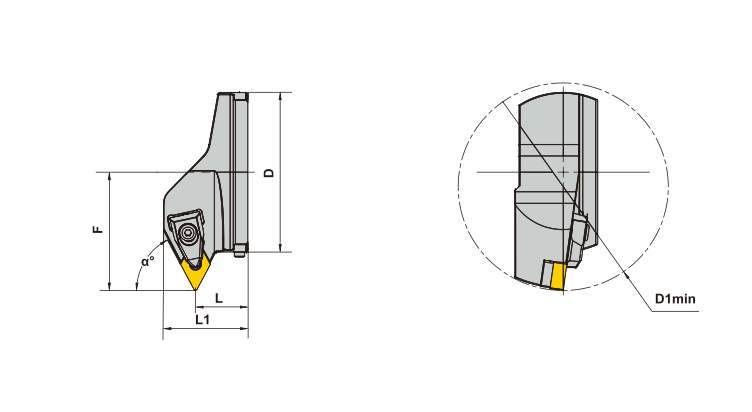

WV DDPNR / DDPNL — Negative 62.5° Copying Head · 2 models
| Model | D | D1min | F | L | L1 | a° | K° | Insert |
|---|---|---|---|---|---|---|---|---|
| WV80 DDPNR-15T | 80 | 100 | 57 | 25 | 40.3 | 62.5° | 60° | DN..1506 |
| WV80 DDPNL-15T | 80 | 100 | 57 | 25 | 40.3 | 62.5° | 60° | DN..1506 |
4 heads · 16 models

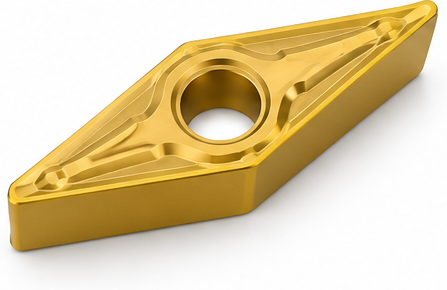

V — 35° rhombic insert
Sharp point — for profiling, back boring and thin walls.

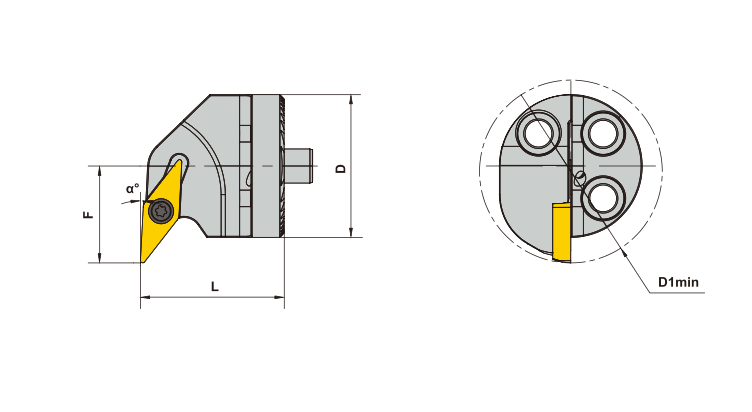

WV SVUCR / SVUCL — Positive 93° Boring & Copying Head · 4 models
| Model | D | D1min | F | L | a° | K° | Insert |
|---|---|---|---|---|---|---|---|
| WV20 SVUCR-11 | 20 | 27 | 16 | 20 | 3° | 50° | VC..1103 |
| WV25 SVUCR-11 | 25 | 31 | 17 | 25 | 3° | 50° | VC..1103 |
| WV20 SVUCL-11 | 20 | 27 | 16 | 20 | 3° | 50° | VC..1103 |
| WV25 SVUCL-11 | 25 | 31 | 17 | 25 | 3° | 50° | VC..1103 |

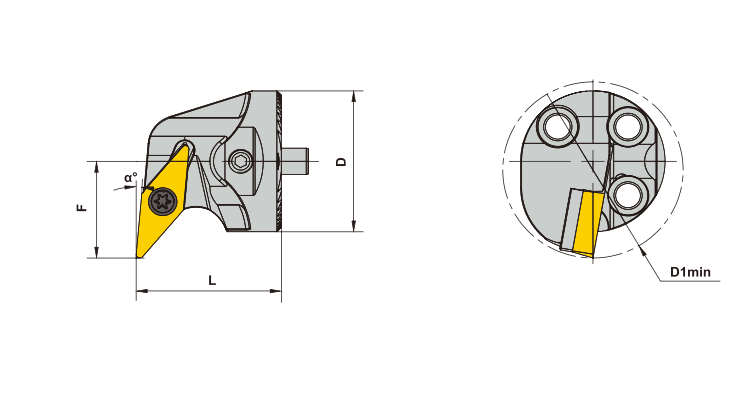

WV SVLCR / SVLCL — Positive 95° Boring & Copying Head · 6 models
| Model | D | D1min | F | L | a° | K° | Insert |
|---|---|---|---|---|---|---|---|
| WV32 SVLCR-16T | 32 | 40 | 22 | 32 | 5° | 45° | VC..1604 |
| WV40 SVLCR-16T | 40 | 50 | 27 | 32 | 5° | 45° | VC..1604 |
| WV32 SVLCL-16T | 32 | 40 | 22 | 32 | 5° | 45° | VC..1604 |
| WV40 SVLCL-16T | 40 | 50 | 27 | 32 | 5° | 45° | VC..1604 |
| WV80 SVLCR-16T | 80 | 100 | 57 | 45 | 5° | 45° | VC..1604 |
| WV80 SVLCL-16T | 80 | 100 | 57 | 45 | 5° | 45° | VC..1604 |

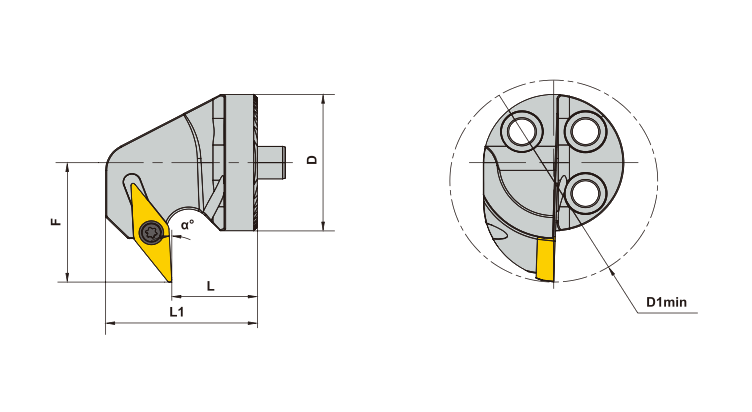

WV SVZCR / SVZCL — Positive 93° Back Boring & Copying Head · 4 models
| Model | D | D1min | F | L | L1 | a° | K° | Insert |
|---|---|---|---|---|---|---|---|---|
| WV20 SVZCR-11 | 20 | 32 | 20 | 15 | 27 | 3° | 45° | VC..1103 |
| WV25 SVZCR-11 | 25 | 37 | 22 | 15 | 27 | 3° | 45° | VC..1103 |
| WV20 SVZCL-11 | 20 | 32 | 20 | 15 | 27 | 3° | 45° | VC..1103 |
| WV25 SVZCL-11 | 25 | 37 | 22 | 15 | 27 | 3° | 45° | VC..1103 |

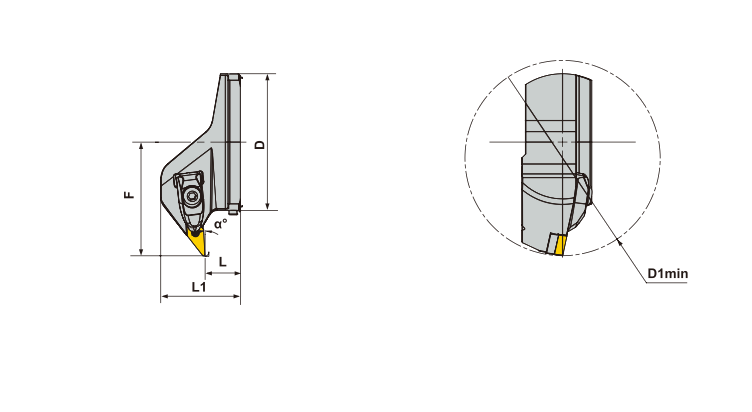

WV DVZNR / DVZNL — Negative 93° Back Boring Head · 2 models
| Model | D | D1min | F | L | L1 | a° | K° | Insert |
|---|---|---|---|---|---|---|---|---|
| WV80 DVZNR-16T | 80 | 110 | 64 | 20 | 45 | 3° | 30° | VN..1604 |
| WV80 DVZNL-16T | 80 | 110 | 64 | 20 | 45 | 3° | 30° | VN..1604 |
1 head · 12 models

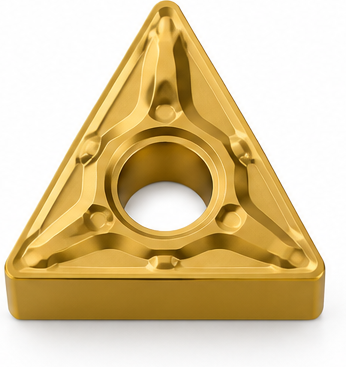

T — triangular insert
Three edges per insert — lowest cost per edge.

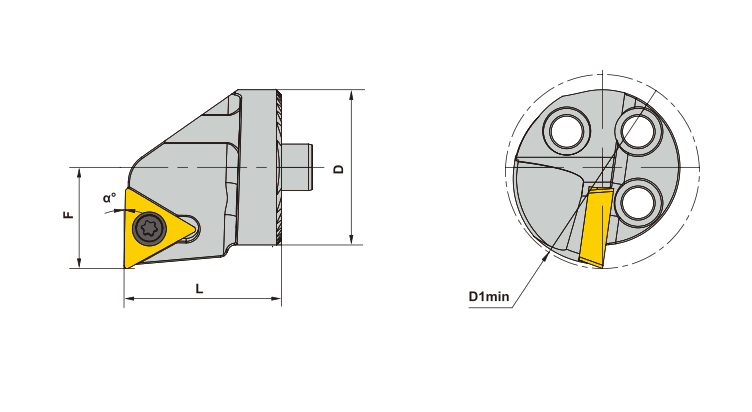

WV STFCR / STFCL — Positive 91° Boring Head · 12 models
| Model | D | D1min | F | L | a° | Insert |
|---|---|---|---|---|---|---|
| WV16 STFCR-09 | 16 | 20 | 11 | 20 | 1° | TC..0902 |
| WV16 STFCR-11 | 16 | 20 | 11 | 20 | 1° | TC..1102 |
| WV20 STFCR-11 | 20 | 25 | 13 | 20 | 1° | TC..1102 |
| WV25 STFCR-11 | 25 | 32 | 17 | 20 | 1° | TC..1102 |
| WV32 STFCR-16 | 32 | 40 | 22 | 32 | 1° | TC..16T3 |
| WV40 STFCR-16 | 40 | 50 | 27 | 32 | 1° | TC..16T3 |
| WV16 STFCL-09 | 16 | 20 | 11 | 20 | 1° | TC..0902 |
| WV16 STFCL-11 | 16 | 20 | 11 | 20 | 1° | TC..1102 |
| WV20 STFCL-11 | 20 | 25 | 13 | 20 | 1° | TC..1102 |
| WV25 STFCL-11 | 25 | 32 | 17 | 20 | 1° | TC..1102 |
| WV32 STFCL-16 | 32 | 40 | 22 | 32 | 1° | TC..16T3 |
| WV40 STFCL-16 | 40 | 50 | 27 | 32 | 1° | TC..16T3 |
1 head · 6 models

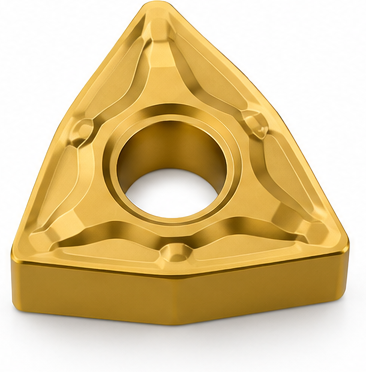

W — hexagonal insert
Six edges, strong negative geometry.

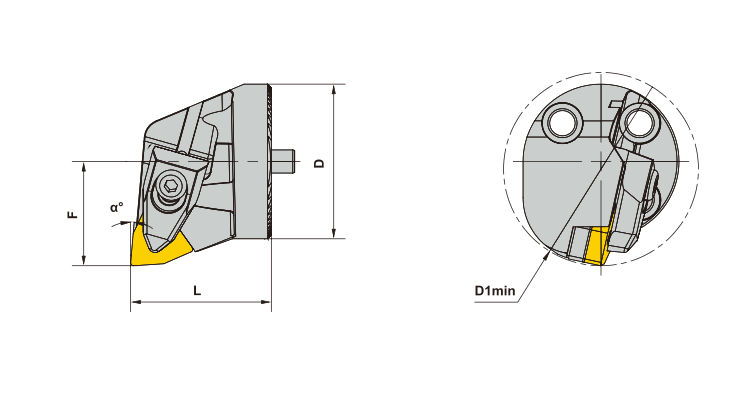

WV DWLNR / DWLNL — Negative 95° Boring Head · 6 models
| Model | D | D1min | F | L | a° | Insert |
|---|---|---|---|---|---|---|
| WV32 DWLNR-06T | 32 | 40 | 22 | 32 | 5° | WN..0604 |
| WV32 DWLNR-08T | 32 | 46 | 24 | 36 | 5° | WN..0804 |
| WV40 DWLNR-08T | 40 | 50 | 27 | 36 | 5° | WN..0804 |
| WV32 DWLNL-06T | 32 | 40 | 22 | 32 | 5° | WN..0804 |
| WV32 DWLNL-08T | 32 | 46 | 24 | 36 | 5° | WN..0804 |
| WV40 DWLNL-08T | 40 | 50 | 27 | 36 | 5° | WN..0804 |
2 heads · 20 models
Grooving & Threading Heads
Grooving and thread-turning heads on the same damped shank.

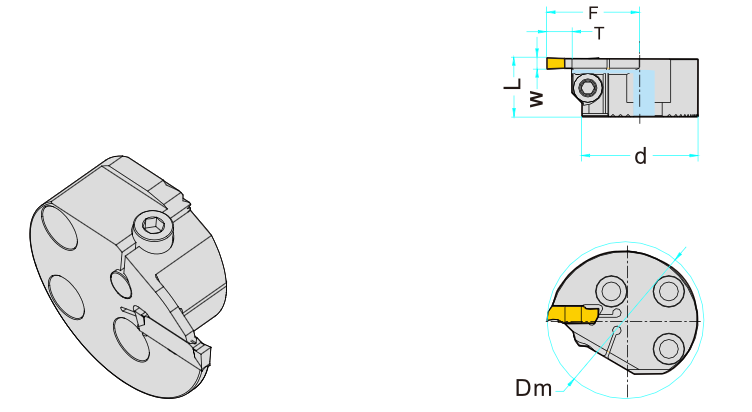

WV JDTR / JDTL — Grooving Head · 11 models
| Model | D1min | W | D | F | L / T | Insert |
|---|---|---|---|---|---|---|
| WV32 JDTR/L02-T09 | 48 | 2 | 32 | 29.7 | 22 9 | GHE.. 02 |
| WV32 JDTR/L03-T09 | 48 | 3 | 32 | 29.7 | 22 9 | GHE.. 03 |
| WV32 JDTR/L03-T12 | 50 | 3 | 32 | 31.5 | 22 12 | GHE.. 03 |
| WV32 JDTR/L04-T09 | 48 | 4 | 32 | 29.7 | 22 9 | GHE.. 04 |
| WV40 JDTR/L02-T08 | 52 | 2 | 40 | 30.5 | 20 8 | GHE.. 02 |
| WV40 JDTR/L03-T08 | 52 | 3 | 40 | 30.5 | 20 8 | GHE.. 03 |
| WV40 JDTR/L03-T12 | 56 | 3 | 40 | 34.5 | 20 12 | GHE.. 03 |
| WV40 JDTR/L03-T18 | 60 | 3 | 40 | 38.5 | 20 18 | GHE.. 03 |
| WV40 JDTR/L04-T08 | 52 | 4 | 40 | 30.5 | 20 8 | GHE.. 04 |
| WV40 JDTR/L04-T12 | 55 | 4 | 40 | 32.5 | 20 12 | GHE.. 04 |
| WV40 JDTR/L04-T18 | 60 | 4 | 40 | 38.5 | 20 18 | GHE.. 04 |

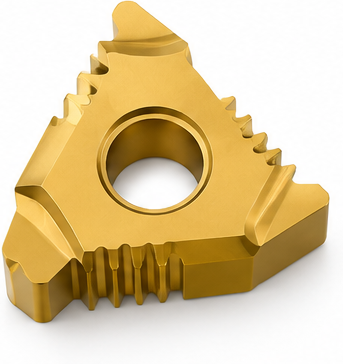

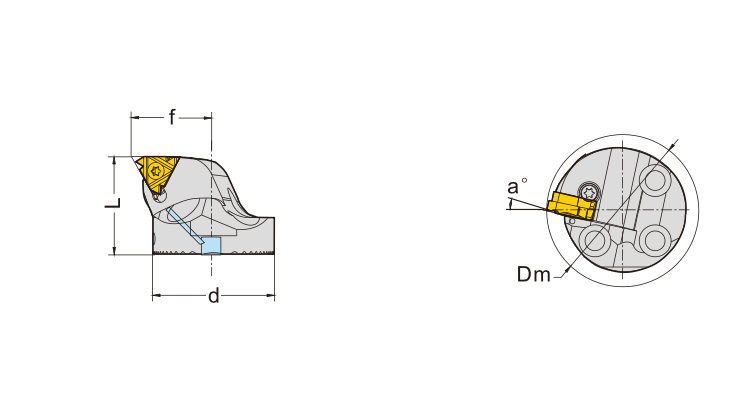

WV SIR / SIL — Threading Head · 9 models
| Model | D | D1min | F | L | Insert |
|---|---|---|---|---|---|
| WV16 SIR/L11 | 16 | 20 | 12 | 20 | 11IR/L |
| WV20 SIR/L-11 | 20 | 25 | 14 | 20 | 11IR/L |
| WV20 SIR/L-16 | 20 | 25 | 14 | 20 | 16IR/L |
| WV25 SIR/L-16 | 25 | 32 | 17 | 25 | 16IR/L |
| WV32 SIR/L-16 | 32 | 40 | 22 | 32 | 16IR/L |
| WV32 SIR/L-22 | 32 | 40 | 22 | 32 | 22IR/L |
| WV40 SIR/L-16 | 40 | 50 | 27 | 32 | 16IR/L |
| WV40 SIR/L-22 | 40 | 50 | 27 | 32 | 22IR/L |
| WV40 SIR/L-27 | 40 | 50 | 27 | 36 | 27IR/L |
Not sure which head? Send us the job.
Material, bore or profile, holder size and machine interface — our engineers reply within one business day with the right head, insert grade and cutting data.
