WVT Modular Drill System
The flagship crown drill: interchangeable carbide heads on precision steel bodies — Ø12.5 to 54 mm, standard depths to 12×D, and custom solutions to 25×D and 600 mm total length.
- Ø12.5–54 mm standard range
- Up to 12×D standard · 25×D custom
- T912 shank — 30% more rigidity
One System. Every Material.
The WVT crown drill system pairs a precision steel body with interchangeable carbide heads. Swap the head — not the tool — to change diameter, geometry, or grade in seconds.
- Ø12.5–54 mm standard range; custom lengths to 600 mm
- Six groove geometries — PG, GG, MG, PL, PCM, and E — for every material and hole form
- Grades WV3015, WV3010, WV3013, and K10 from steel to aluminum
- T912 face-contact shank: 30% more rigidity than DIN 1835B
Six Groove Geometries. One Body.
PG · Steel — High Feed
GG · General Purpose
MG · Stainless & Superalloys

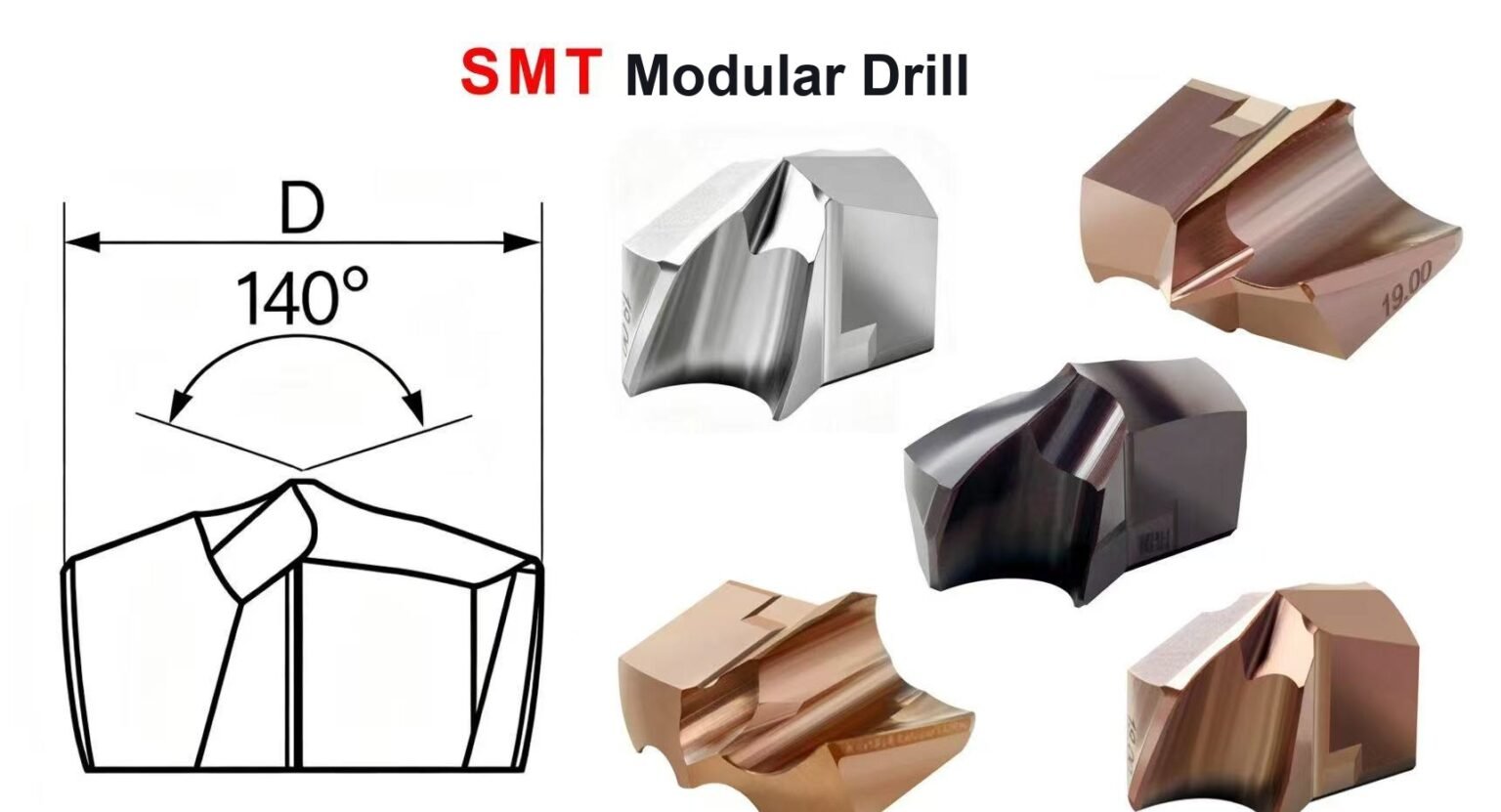

PL · Centering · 140°
PCM · Pre-Centering
E · Flat Bottom
WVT Body Series — R5 (5×D)

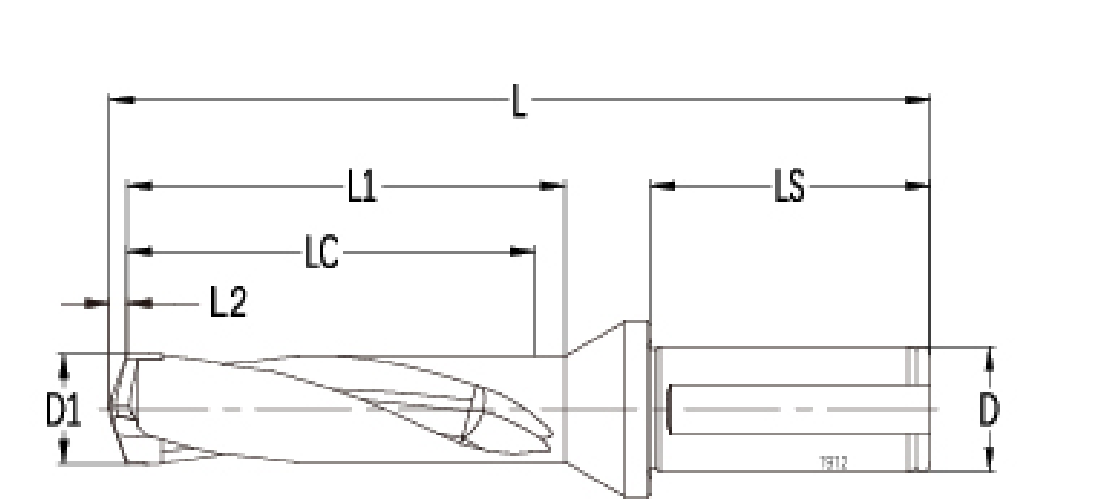

Body model code = Diameter + Depth ratio + Shank. All dimensions in mm.
| Model | D1 (mm) | Depth | Shank | L total (mm) | L1 (mm) | LC flute (mm) | LS shank (mm) |
|---|---|---|---|---|---|---|---|
| WVT110R5T16M | 11.0 | 5×D | T16M | 133.9 | 73.9 | 63.0 | 48 |
| WVT115R5T16M | 11.5 | 5×D | T16M | 136.9 | 76.9 | 66.0 | 48 |
| WVT120R5T16M | 12.0 | 5×D | T16M | 143.0 | 82.7 | 71.0 | 48 |
| WVT125R5T16M | 12.5 | 5×D | T16M | 142.0 | 83.1 | 71.0 | 48 |
| WVT130R5T16M | 13.0 | 5×D | T16M | 142.1 | 83.2 | 70.0 | 48 |
| WVT136R5T16M | 13.6 | 5×D | T16M | 147.2 | 88.7 | 75.0 | 48 |
| WVT140R5T16M | 14.0 | 5×D | T16M | 147.2 | 91.7 | 78.0 | 48 |
| WVT145R5T16M | 14.5 | 5×D | T16M | 155.0 | 97.3 | 86.0 | 48 |
| WVT146R5T20M | 14.6 | 5×D | T20M | 167.3 | 100.9 | 91.0 | 50 |
| WVT150R5T20M | 15.0 | 5×D | T20M | 167.4 | 106.1 | 88.0 | 50 |
| WVT155R5T20M | 15.5 | 5×D | T20M | 168.5 | 103.5 | 91.0 | 50 |
| WVT160R5T20M-MB | 16.0 | 5×D | T20M | 171.5 | 106.5 | 102.0 | 50 |
| WVT165R5T20M-MB | 16.5 | 5×D | T20M | 179.6 | 118.6 | 96.0 | 50 |
| WVT170R5T20M-MB | 17.0 | 5×D | T20M | 177.7 | 112.7 | 102.0 | 50 |
| WVT180R5T20M-MB | 18.0 | 5×D | T20M | 179.9 | 119.6 | 112.0 | 50 |
| WVT181R5T25M-MB | 18.1 | 5×D | T25M | 199.9 | 130.4 | 112.0 | 56 |
| WVT190R5T25M-MB | 19.0 | 5×D | T25M | 200.0 | 130.7 | 123.0 | 56 |
| WVT210R5T25M | 21.0 | 5×D | T25M | 211.2 | 143.1 | 122.0 | 56 |
| WVT220R5T25M | 22.0 | 5×D | T25M | 211.3 | 143.2 | 123.0 | 56 |
| WVT221R5T25M | 22.1 | 5×D | T25M | 211.5 | 144.6 | 134.0 | 56 |
| WVT230R5T25M | 23.0 | 5×D | T25M | 223.5 | 156.0 | 132.0 | 56 |
| WVT240R5T25M | 24.0 | 5×D | T25M | 221.7 | 154.9 | 134.0 | 56 |
| WVT241R5T32M | 24.1 | 5×D | T32M | 224.8 | 158.2 | 129.0 | 60 |
| WVT250R5T32M | 25.0 | 5×D | T32M | 234.8 | 153.2 | 136.0 | 60 |
| WVT260R5T32M | 26.0 | 5×D | T32M | 235.0 | 160.5 | 133.0 | 60 |
R1 / R3 / R7 / R10 / R12 depth ratios available on request. Scroll sideways on mobile.
Coating & Grade Guide
Four carbide grades cover steel, stainless, cast iron, aluminum, and non-ferrous work — pick the grade after the groove.
P — STEEL · HIGH-SPEED
AlCrN nano-composite PVD on fine-grain carbide — very high removal rates and long life in steel.
M — STAINLESS · K — CAST IRON
Si-AlTiN nano-composite PVD — oxidation stability and toughness for stainless and cast iron.
N — ALUMINUM
High-Al AlCrN on a tough fine-grain substrate — built for aluminum.
N — NON-FERROUS · S — HEAT-RESISTANT ALLOYS
Wear-resistant carbide with a sharp edge for non-ferrous and heat-resistant alloys.
Why Machinists Choose WVT
Closed Four-Sided Pocket
The head seats rock-solid in the body — stability where it counts.
One-Wrench Changeover
Swap heads in seconds with a single wrench. No dialing, no re-measuring.
T912 Face-Contact Shank
30% more rigidity than DIN 1835B for straighter, more accurate holes.
Drill + Chamfer in One
Bodies above Ø18 mm can carry an integrated chamfer seat.
Up to 12×D Standard
Deep-hole capability from stock — 25×D and 600 mm on request.
Regrinding Service
Send heads back for regrinding and extend tool life further.
Specifications at a Glance
- Diameter range: Ø12.5 – 54 mm standard
- Depth ratios: R1 / R3 / R5 / R7 / R10 / R12 (up to 12×D) · custom up to 25×D
- Groove types: PG · GG · MG · PL · PCM · E (flat-bottom)
- Grades: WV3015 (steel) · WV3010 (stainless & cast iron) · WV3013 (aluminum) · K10 (non-ferrous)
- Shanks: T912 face-contact · T16M / T20M / T25M / T32M
- Custom: total length to 600 mm · multi-step composite tools · drill + chamfer bodies
Frequently Asked Questions
Interchangeable carbide heads clamp into precision steel bodies through a closed four-sided pocket. When a head wears, replace only the head — the body stays in the machine.
Six geometries fit the same body: PG for high-feed drilling in steel, GG for low cutting forces and centering accuracy, MG for stainless and high-temperature alloys, PL for 140° centering in steel and cast iron, PCM (four-edge) for pre-centering, and E for flat-bottom holes. Not sure? Tell us your material and we will recommend.
WV3015 (AlCrN-based) for steel at high speeds, WV3010 (AlTiN-based) for stainless and cast iron, WV3013 for aluminum, and K10 for non-ferrous and heat-resistant alloys.
12×D from standard stock (R1–R12). Custom bodies reach 25×D or a 600 mm total length, depending on diameter.
Yes — standard bodies above Ø18 mm can be ordered with an integrated chamfer seat so drilling and chamfering finish in a single pass.
Please contact us for current MOQ and lead times — we reply within 1 business day with pricing and availability.
Ready to Standardize on One Drill System?
Tell us your material, hole depth, and tolerance — we will recommend the right body, head, groove, and grade, with pricing within 1 business day.
