Carbide Full-Thread Milling Cutters
Full-profile carbide thread milling cutters for repeat production of a specified thread size and pitch. The range includes 25 metric specifications.
MG HM
Tool material
Micro-grain carbide
60°
Thread angle
Metric profile
Full
Cutting profile
Thread milling
25
Specifications
M2–M24
Vap
Surface finish
Bright
Surface finish
TiN
Surface finish
Sizes & dimensions
Thread Depth
2.0 × D

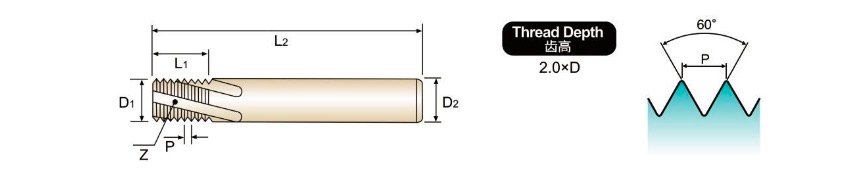

Dimensions in millimetres. L, L1, D, d1 follow the specification table symbols.

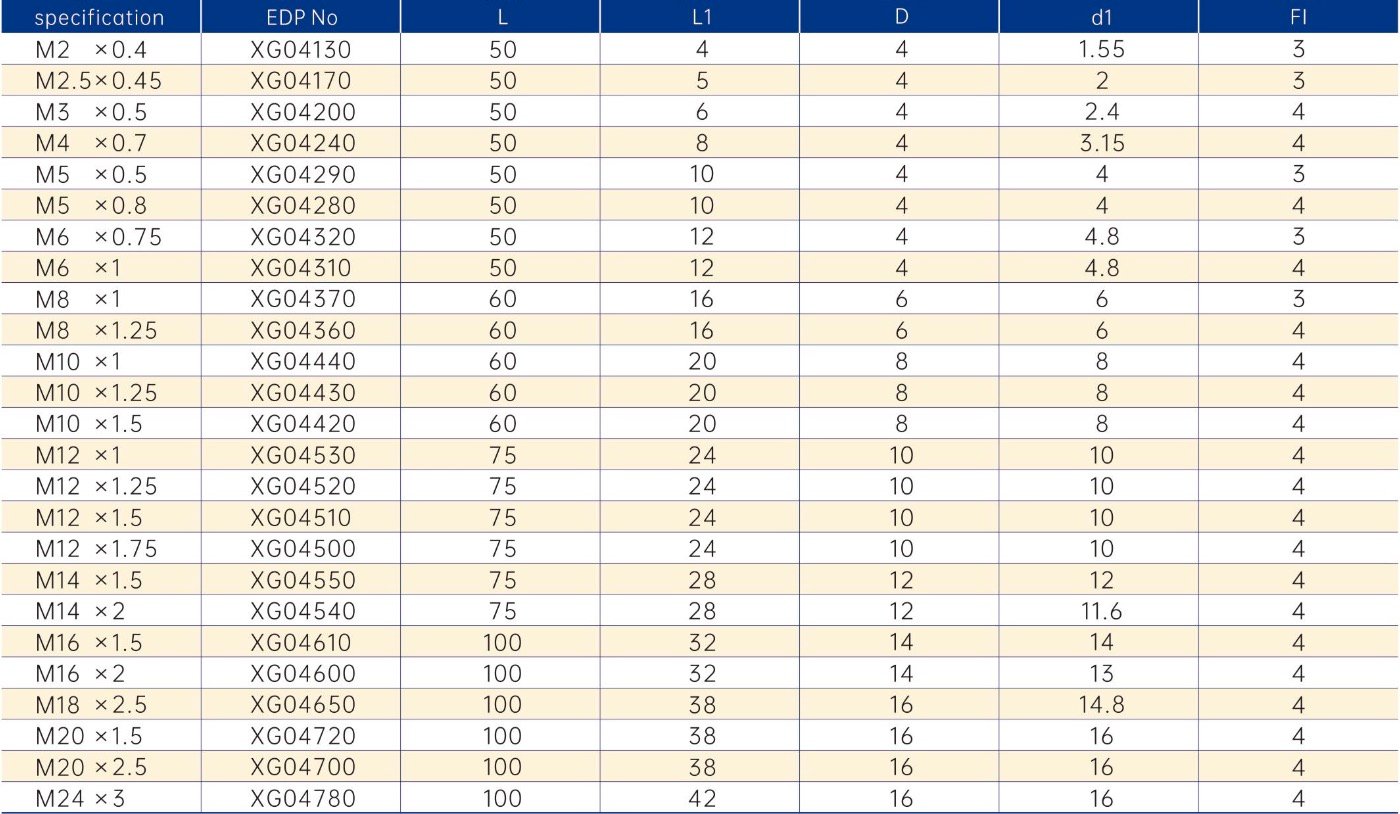

| Thread | Pitch P (mm) | EDP No. | L (mm) | L1 (mm) | D (mm) | d1 (mm) | Flutes |
|---|---|---|---|---|---|---|---|
| M2 | 0.4 | XG04130 | 50 | 4 | 4 | 1.55 | 3 |
| M2.5 | 0.45 | XG04170 | 50 | 5 | 4 | 2 | 3 |
| M3 | 0.5 | XG04200 | 50 | 6 | 4 | 2.4 | 4 |
| M4 | 0.7 | XG04240 | 50 | 8 | 4 | 3.15 | 4 |
| M5 | 0.5 | XG04290 | 50 | 10 | 4 | 4 | 3 |
| M5 | 0.8 | XG04280 | 50 | 10 | 4 | 4 | 4 |
| M6 | 0.75 | XG04320 | 50 | 12 | 4 | 4.8 | 3 |
| M6 | 1 | XG04310 | 50 | 12 | 4 | 4.8 | 4 |
| M8 | 1 | XG04370 | 60 | 16 | 6 | 6 | 3 |
| M8 | 1.25 | XG04360 | 60 | 16 | 6 | 6 | 4 |
| M10 | 1 | XG04440 | 60 | 20 | 8 | 8 | 4 |
| M10 | 1.25 | XG04430 | 60 | 20 | 8 | 8 | 4 |
| M10 | 1.5 | XG04420 | 60 | 20 | 8 | 8 | 4 |
| M12 | 1 | XG04530 | 75 | 24 | 10 | 10 | 4 |
| M12 | 1.25 | XG04520 | 75 | 24 | 10 | 10 | 4 |
| M12 | 1.5 | XG04510 | 75 | 24 | 10 | 10 | 4 |
| M12 | 1.75 | XG04500 | 75 | 24 | 10 | 10 | 4 |
| M14 | 1.5 | XG04550 | 75 | 28 | 12 | 12 | 4 |
| M14 | 2 | XG04540 | 75 | 28 | 12 | 11.6 | 4 |
| M16 | 1.5 | XG04610 | 100 | 32 | 14 | 14 | 4 |
| M16 | 2 | XG04600 | 100 | 32 | 14 | 13 | 4 |
| M18 | 2.5 | XG04650 | 100 | 38 | 16 | 14.8 | 4 |
| M20 | 1.5 | XG04720 | 100 | 38 | 16 | 16 | 4 |
| M20 | 2.5 | XG04700 | 100 | 38 | 16 | 16 | 4 |
| M24 | 3 | XG04780 | 100 | 42 | 16 | 16 | 4 |
Application materials

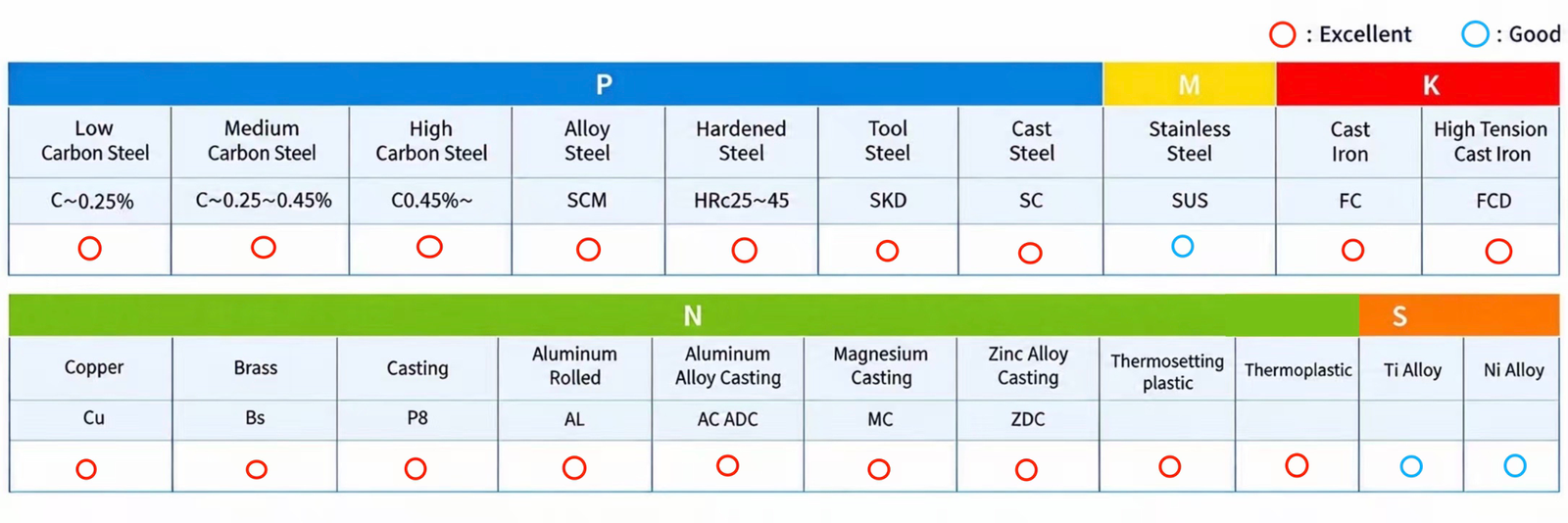

| Material group | Workpiece material | Condition / code | Catalogue rating |
|---|---|---|---|
| PSteel | Low-carbon steel | C ≤ 0.25% | Excellent |
| PSteel | Medium-carbon steel | C 0.25–0.45% | Excellent |
| PSteel | High-carbon steel | C ≥ 0.45% | Excellent |
| PSteel | Alloy steel | SCM | Excellent |
| PSteel | Hardened steel | 25–45 HRC | Excellent |
| PSteel | Tool steel | SKD | Excellent |
| PSteel | Cast steel | SC | Excellent |
| MStainless Steel | Stainless steel | SUS | Good |
| KCast Iron | Cast iron | FC | Excellent |
| KCast Iron | Ductile cast iron | FCD | Excellent |
| NNon-ferrous Metals | Copper | Cu | Excellent |
| NNon-ferrous Metals | Brass | Bs | Excellent |
| NNon-ferrous Metals | Wrought aluminium | AL | Excellent |
| NNon-ferrous Metals | Cast aluminium alloys | AC / ADC | Excellent |
| NNon-ferrous Metals | Cast magnesium alloys | MC | Excellent |
| NNon-ferrous Metals | Cast zinc alloys | ZDC | Excellent |
| OtherNon-metallic Materials | Thermosetting plastics | Excellent | |
| OtherNon-metallic Materials | Thermoplastics | Excellent | |
| SHeat-resistant Alloys & Titanium | Titanium alloys | Good | |
| SHeat-resistant Alloys & Titanium | Nickel alloys | Good |
Related thread milling cutters
Request a thread milling quotation
Send the EDP code, thread size and pitch, workpiece material and hardness, required thread depth, surface finish and quantity.
