THREADING / SINGLE-THREAD
Carbide Single-Thread Milling Cutters
Single-profile carbide thread milling cutters for varied thread sizes and prototype work. The range includes 19 metric thread and pitch combinations.
MG HM
Tool material
Micro-grain carbide
60°
Thread angle
Metric profile
Single
Cutting profile
Thread milling
19
Specifications
M0.8–M30
Vap
Surface finish
Bright
Surface finish
TiN
Surface finish

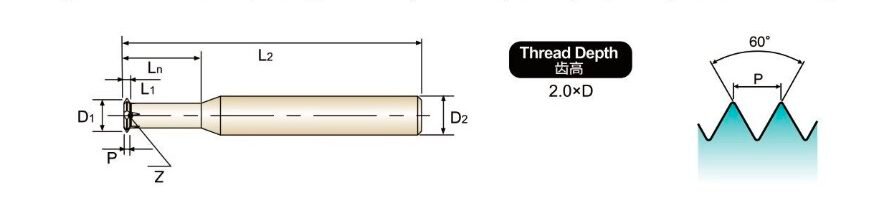

Sizes & dimensions
Thread Depth
2.0 × D
Dimensions in millimetres. L, L1, D, d1 and d2 follow the specification table symbols.

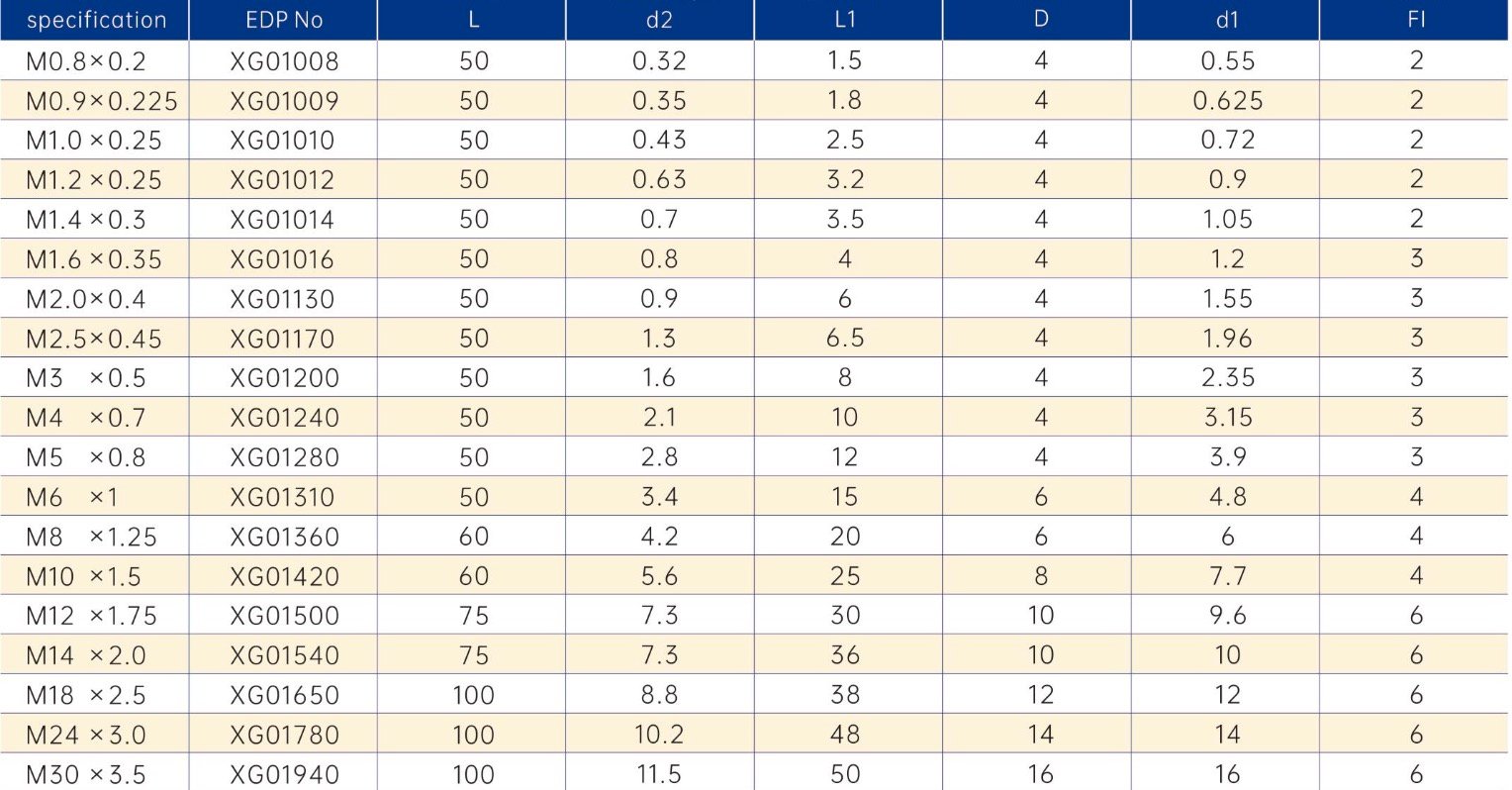

| Thread | Pitch P (mm) | EDP No. | L (mm) | d2 (mm) | L1 (mm) | D (mm) | d1 (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|
| M0.8 | 0.2 | XG01008 | 50 | 0.32 | 1.5 | 4 | 0.55 | 2 |
| M0.9 | 0.225 | XG01009 | 50 | 0.35 | 1.8 | 4 | 0.625 | 2 |
| M1.0 | 0.25 | XG01010 | 50 | 0.43 | 2.5 | 4 | 0.72 | 2 |
| M1.2 | 0.25 | XG01012 | 50 | 0.63 | 3.2 | 4 | 0.9 | 2 |
| M1.4 | 0.3 | XG01014 | 50 | 0.7 | 3.5 | 4 | 1.05 | 2 |
| M1.6 | 0.35 | XG01016 | 50 | 0.8 | 4 | 4 | 1.2 | 3 |
| M2.0 | 0.4 | XG01130 | 50 | 0.9 | 6 | 4 | 1.55 | 3 |
| M2.5 | 0.45 | XG01170 | 50 | 1.3 | 6.5 | 4 | 1.96 | 3 |
| M3 | 0.5 | XG01200 | 50 | 1.6 | 8 | 4 | 2.35 | 3 |
| M4 | 0.7 | XG01240 | 50 | 2.1 | 10 | 4 | 3.15 | 3 |
| M5 | 0.8 | XG01280 | 50 | 2.8 | 12 | 4 | 3.9 | 3 |
| M6 | 1 | XG01310 | 50 | 3.4 | 15 | 6 | 4.8 | 4 |
| M8 | 1.25 | XG01360 | 60 | 4.2 | 20 | 6 | 6 | 4 |
| M10 | 1.5 | XG01420 | 60 | 5.6 | 25 | 8 | 7.7 | 4 |
| M12 | 1.75 | XG01500 | 75 | 7.3 | 30 | 10 | 9.6 | 6 |
| M14 | 2 | XG01540 | 75 | 7.3 | 36 | 10 | 10 | 6 |
| M18 | 2.5 | XG01650 | 100 | 8.8 | 38 | 12 | 12 | 6 |
| M24 | 3 | XG01780 | 100 | 10.2 | 48 | 14 | 14 | 6 |
| M30 | 3.5 | XG01940 | 100 | 11.5 | 50 | 16 | 16 | 6 |

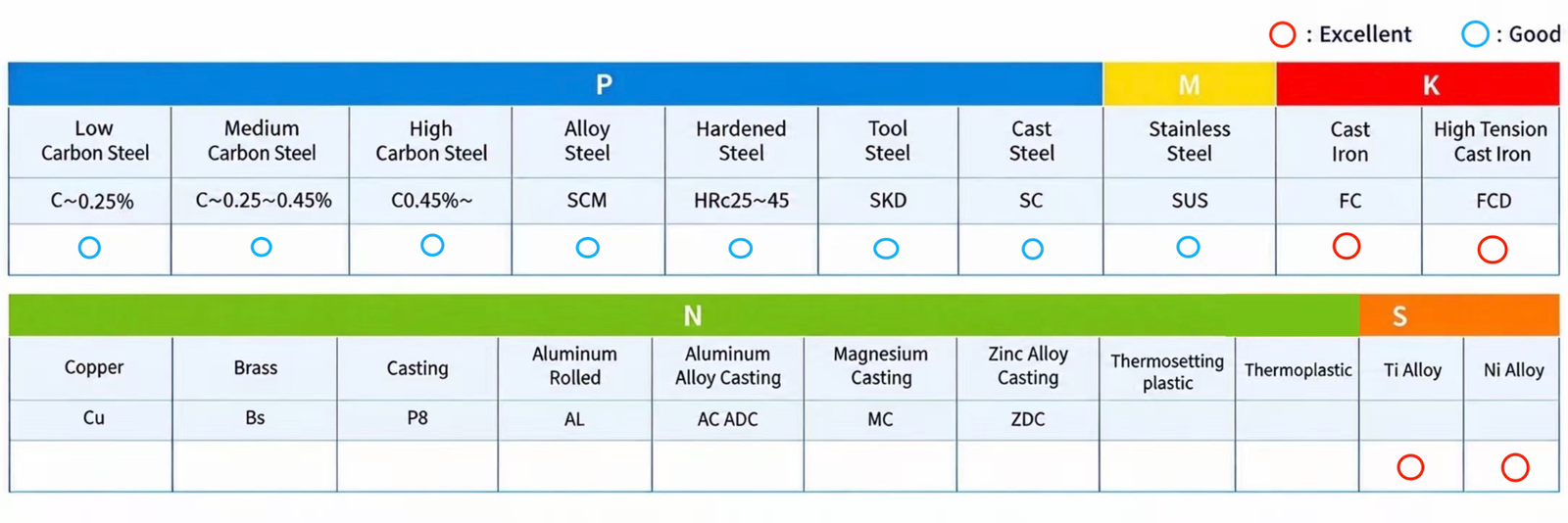

Application materials
| Material group | Workpiece material | Condition / code | Catalogue rating |
|---|---|---|---|
| PSteel | Low-carbon steel | C ≤ 0.25% | Good |
| PSteel | Medium-carbon steel | C 0.25–0.45% | Good |
| PSteel | High-carbon steel | C ≥ 0.45% | Good |
| PSteel | Alloy steel | SCM | Good |
| PSteel | Hardened steel | 25–45 HRC | Good |
| PSteel | Tool steel | SKD | Good |
| PSteel | Cast steel | SC | Good |
| MStainless Steel | Stainless steel | SUS | Good |
| KCast Iron | Cast iron | FC | Excellent |
| KCast Iron | Ductile cast iron | FCD | Excellent |
| SHeat-resistant Alloys & Titanium | Titanium alloys | Excellent | |
| SHeat-resistant Alloys & Titanium | Nickel alloys | Excellent |
Related thread milling cutters
Request a thread milling quotation
Send the EDP code, thread size and pitch, workpiece material and hardness, required thread depth, surface finish and quantity.
