Carbide Three-Thread Milling Cutters
Three-profile carbide thread milling cutters for small threaded holes and steel workpieces. Choose from 27 metric specifications, including alternative shank diameters.
MG HM
Tool material
Micro-grain carbide
60°
Thread angle
Metric profile
Three
Cutting profile
Thread milling
27
Specifications
M1–M12
Vap
Surface finish
Bright
Surface finish
TiN
Surface finish
Sizes & dimensions

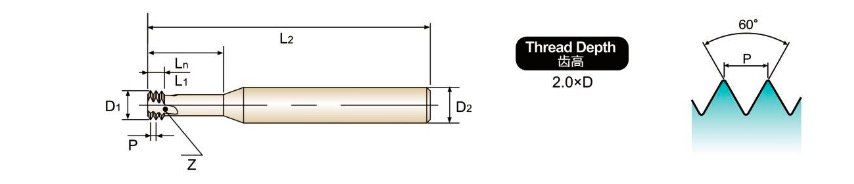

Thread Depth
2.0 × D
Dimensions in millimetres. L, L1, D, d1 and d2 follow the specification table symbols.

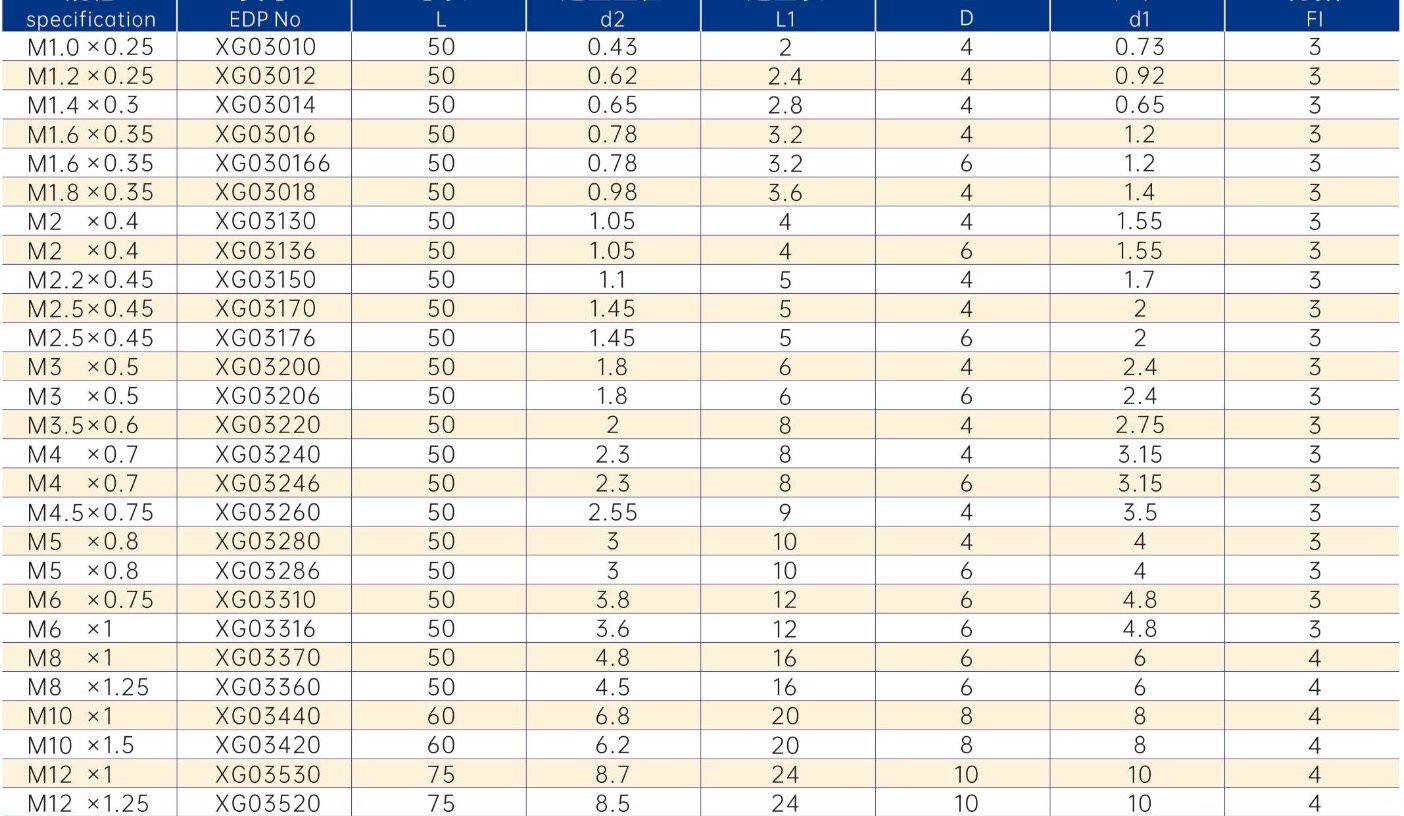

| Thread | Pitch P (mm) | EDP No. | L (mm) | d2 (mm) | L1 (mm) | D (mm) | d1 (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|
| M1.0 | 0.25 | XG03010 | 50 | 0.43 | 2 | 4 | 0.73 | 3 |
| M1.2 | 0.25 | XG03012 | 50 | 0.62 | 2.4 | 4 | 0.92 | 3 |
| M1.4 | 0.3 | XG03014 | 50 | 0.65 | 2.8 | 4 | 0.65 | 3 |
| M1.6 | 0.35 | XG03016 | 50 | 0.78 | 3.2 | 4 | 1.2 | 3 |
| M1.6 | 0.35 | XG030166 | 50 | 0.78 | 3.2 | 6 | 1.2 | 3 |
| M1.8 | 0.35 | XG03018 | 50 | 0.98 | 3.6 | 4 | 1.4 | 3 |
| M2 | 0.4 | XG03130 | 50 | 1.05 | 4 | 4 | 1.55 | 3 |
| M2 | 0.4 | XG03136 | 50 | 1.05 | 4 | 6 | 1.55 | 3 |
| M2.2 | 0.45 | XG03150 | 50 | 1.1 | 5 | 4 | 1.7 | 3 |
| M2.5 | 0.45 | XG03170 | 50 | 1.45 | 5 | 4 | 2 | 3 |
| M2.5 | 0.45 | XG03176 | 50 | 1.45 | 5 | 6 | 2 | 3 |
| M3 | 0.5 | XG03200 | 50 | 1.8 | 6 | 4 | 2.4 | 3 |
| M3 | 0.5 | XG03206 | 50 | 1.8 | 6 | 6 | 2.4 | 3 |
| M3.5 | 0.6 | XG03220 | 50 | 2 | 8 | 4 | 2.75 | 3 |
| M4 | 0.7 | XG03240 | 50 | 2.3 | 8 | 4 | 3.15 | 3 |
| M4 | 0.7 | XG03246 | 50 | 2.3 | 8 | 6 | 3.15 | 3 |
| M4.5 | 0.75 | XG03260 | 50 | 2.55 | 9 | 4 | 3.5 | 3 |
| M5 | 0.8 | XG03280 | 50 | 3 | 10 | 4 | 4 | 3 |
| M5 | 0.8 | XG03286 | 50 | 3 | 10 | 6 | 4 | 3 |
| M6 | 0.75 | XG03310 | 50 | 3.8 | 12 | 6 | 4.8 | 3 |
| M6 | 1 | XG03316 | 50 | 3.6 | 12 | 6 | 4.8 | 3 |
| M8 | 1 | XG03370 | 50 | 4.8 | 16 | 6 | 6 | 4 |
| M8 | 1.25 | XG03360 | 50 | 4.5 | 16 | 6 | 6 | 4 |
| M10 | 1 | XG03440 | 60 | 6.8 | 20 | 8 | 8 | 4 |
| M10 | 1.5 | XG03420 | 60 | 6.2 | 20 | 8 | 8 | 4 |
| M12 | 1 | XG03530 | 75 | 8.7 | 24 | 10 | 10 | 4 |
| M12 | 1.25 | XG03520 | 75 | 8.5 | 24 | 10 | 10 | 4 |
Application materials
| Material group | Workpiece material | Condition / code | Catalogue rating |
|---|---|---|---|
| PSteel | Low-carbon steel | C ≤ 0.25% | Excellent |
| PSteel | Medium-carbon steel | C 0.25–0.45% | Excellent |
| PSteel | High-carbon steel | C ≥ 0.45% | Excellent |
| PSteel | Alloy steel | SCM | Excellent |
| PSteel | Hardened steel | 25–45 HRC | Excellent |
| PSteel | Tool steel | SKD | Excellent |
| PSteel | Cast steel | SC | Excellent |
| MStainless Steel | Stainless steel | SUS | Good |
| KCast Iron | Cast iron | FC | Excellent |
| KCast Iron | Ductile cast iron | FCD | Excellent |
| NNon-ferrous Metals | Copper | Cu | Excellent |
| NNon-ferrous Metals | Brass | Bs | Excellent |
| NNon-ferrous Metals | Wrought aluminium | AL | Excellent |
| NNon-ferrous Metals | Cast aluminium alloys | AC / ADC | Excellent |
| NNon-ferrous Metals | Cast magnesium alloys | MC | Excellent |
| NNon-ferrous Metals | Cast zinc alloys | ZDC | Excellent |
| OtherNon-metallic Materials | Thermosetting plastics | Excellent | |
| OtherNon-metallic Materials | Thermoplastics | Excellent | |
| SHeat-resistant Alloys & Titanium | Titanium alloys | Good | |
| SHeat-resistant Alloys & Titanium | Nickel alloys | Good |
Related thread milling cutters
Request a thread milling quotation
Send the EDP code, thread size and pitch, workpiece material and hardness, required thread depth, surface finish and quantity.
