THREADING / WTP Straight Flute Carbide

DIN Carbide Straight Flute Taps

Micro-grain carbide straight flute taps for cast iron, malleable cast iron and suitable non-ferrous castings.

M3–M20 · DIN 371 / 376 / 374

Model Specifications

Dimensions are in millimetres. Select the thread diameter, pitch and complete EDP order code.

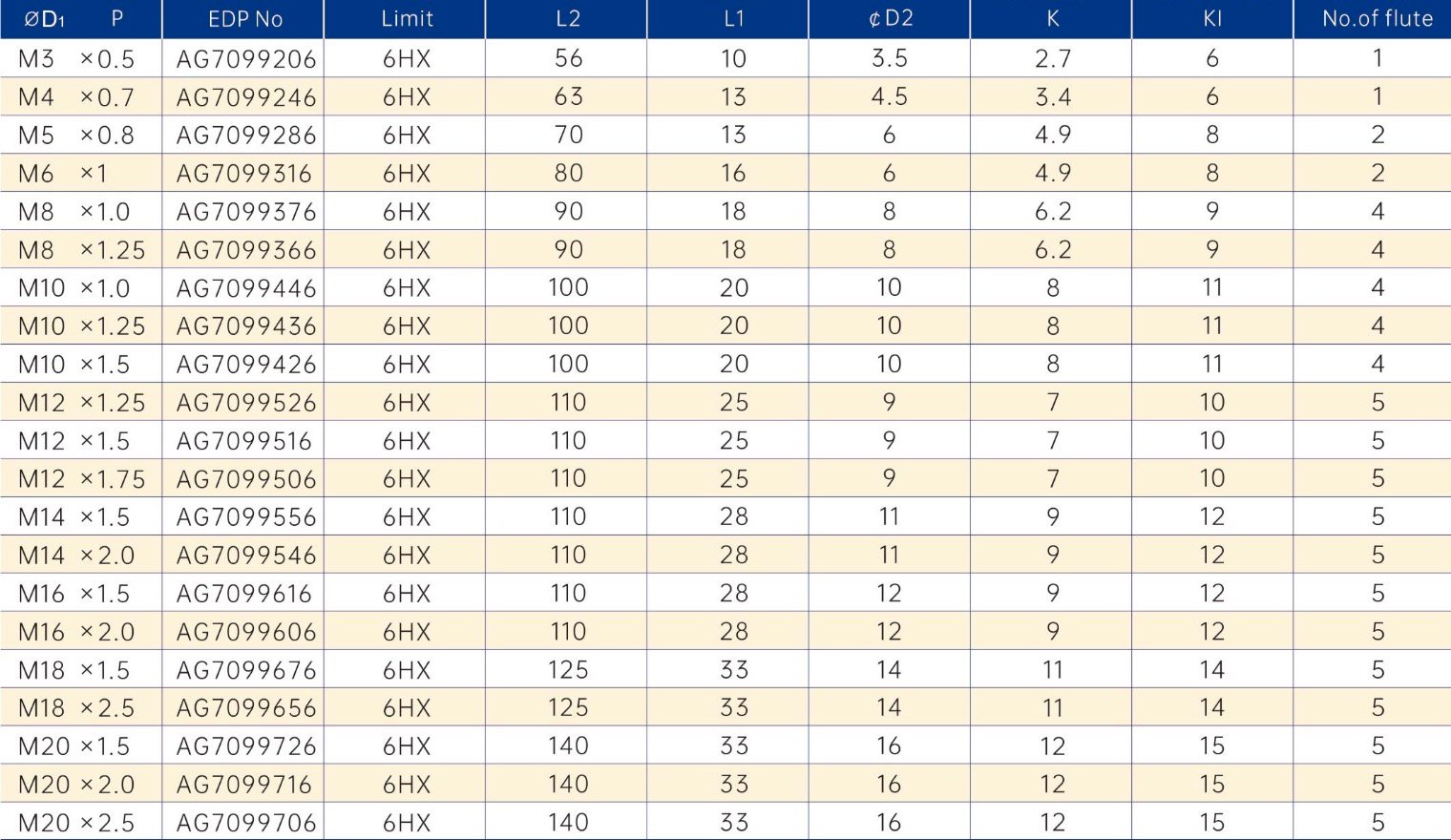

WTP Straight Flute Carbide — metric sizes and dimensions
Thread D1Pitch P (mm)EDP order codeToleranceOverall L2 (mm)Thread L1 (mm)Shank D2 (mm)Square K (mm)Square length Kl (mm)Flutes
M30.5AG70992066HX56103.52.761
M40.7AG70992466HX63134.53.461
M50.8AG70992866HX701364.982
M61AG70993166HX801664.982
M81AG70993766HX901886.294
M81.25AG70993666HX901886.294
M101AG70994466HX10020108114
M101.25AG70994366HX10020108114
M101.5AG70994266HX10020108114
M121.25AG70995266HX1102597105
M121.5AG70995166HX1102597105
M121.75AG70995066HX1102597105
M141.5AG70995566HX11028119125
M142AG70995466HX11028119125
M161.5AG70996166HX11028129125
M162AG70996066HX11028129125
M181.5AG70996766HX125331411145
M182.5AG70996566HX125331411145
M201.5AG70997266HX140331612155
M202AG70997166HX140331612155
M202.5AG70997066HX140331612155

Workpiece Materials

NNon-ferrous Metals PSteel KCast Iron

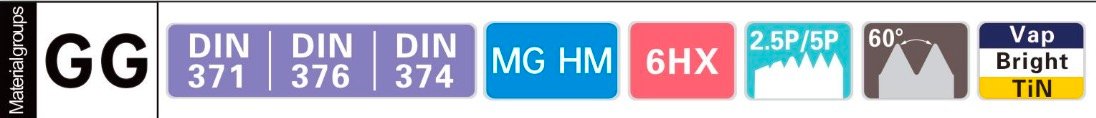

Features & Parameters

DIN

Tool standard
371 / 376 / 374

MG HM

Tool material
Micro-grain carbide

6HX

Tap tolerance
Metric thread

2.5P / 5P

Chamfer lead
In thread pitches

60°

Thread angle
Metric profile

2.0 × D1

Tapping depth
Blind & through holes

Vap

Surface finish

Bright

Surface finish

TiN

Surface finish

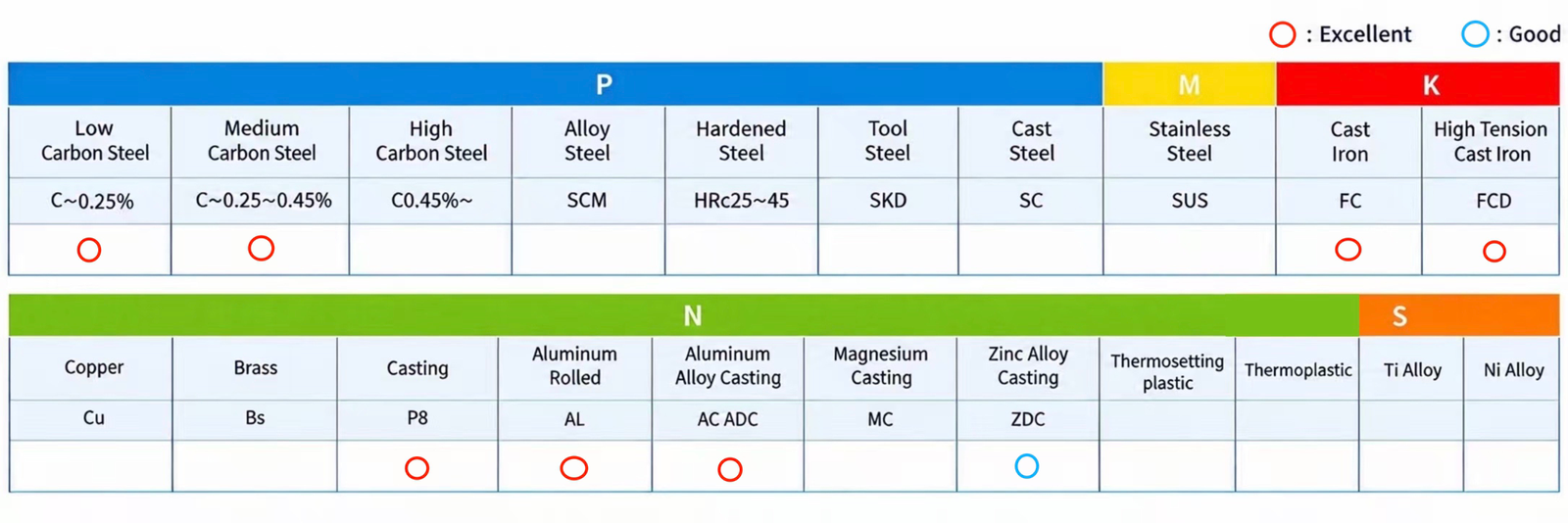

Workpiece Suitability

Workpiece suitability
Material groupWorkpiece materialCondition / gradeSuitability
NNon-ferrous MetalsCast zinc alloysZDCGood
PSteelLow-carbon steelC ≤ 0.25%Excellent
PSteelMedium-carbon steelC 0.25–0.45%Excellent
KCast IronCast ironFCExcellent
KCast IronDuctile cast ironFCDExcellent
NNon-ferrous MetalsWrought aluminiumALExcellent
NNon-ferrous MetalsCast aluminium alloysAC / ADCExcellent

Cutting speeds & coolant

General starting values for carbide cutting taps. Adjust to the workpiece, tap finish, hole dimensions and machining conditions.

Cutting conditions
Material groupWorkpieceCondition / gradeSpeed Vc (m/min)Neat oilWater-solubleSemi-dryDry
KCast IronCast ironFC10–20◎○○○
KCast IronDuctile cast ironFCD10–20◎○○—
NNon-ferrous MetalsCast aluminium alloysAC / ADC10–20◎○——
NNon-ferrous MetalsCast zinc alloysZDC10–20◎○——

◎, ○ and △ indicate the coolant ratings. A dash indicates no listed recommendation. Cutting speed is in m/min; spindle speed n = 1000 × Vc / (π × D1), with D1 in mm.

Dimensions and order codes
SymbolMeaningUnit
D1Nominal thread diametermm
PThread pitchmm
L2Overall lengthmm
L1Thread lengthmm
D2Shank diametermm
KSquare drive widthmm
KlSquare drive lengthmm
EDPComplete product order code—

DIN 371: metric coarse threads M2–M10. DIN 376: metric coarse threads M11–M30. DIN 374: metric fine threads. Available sizes for this series are listed above.

Include the EDP code, surface finish, quantity, workpiece material and hardness, thread depth and coolant method with your enquiry.
