THREADING / WTP TiN
ISO 529 TiN-Coated Taps
HSS taps with a TiN surface coating, 6H tolerance and separate 5P and 9P chamfer order codes.
M2–M16 · ISO 529

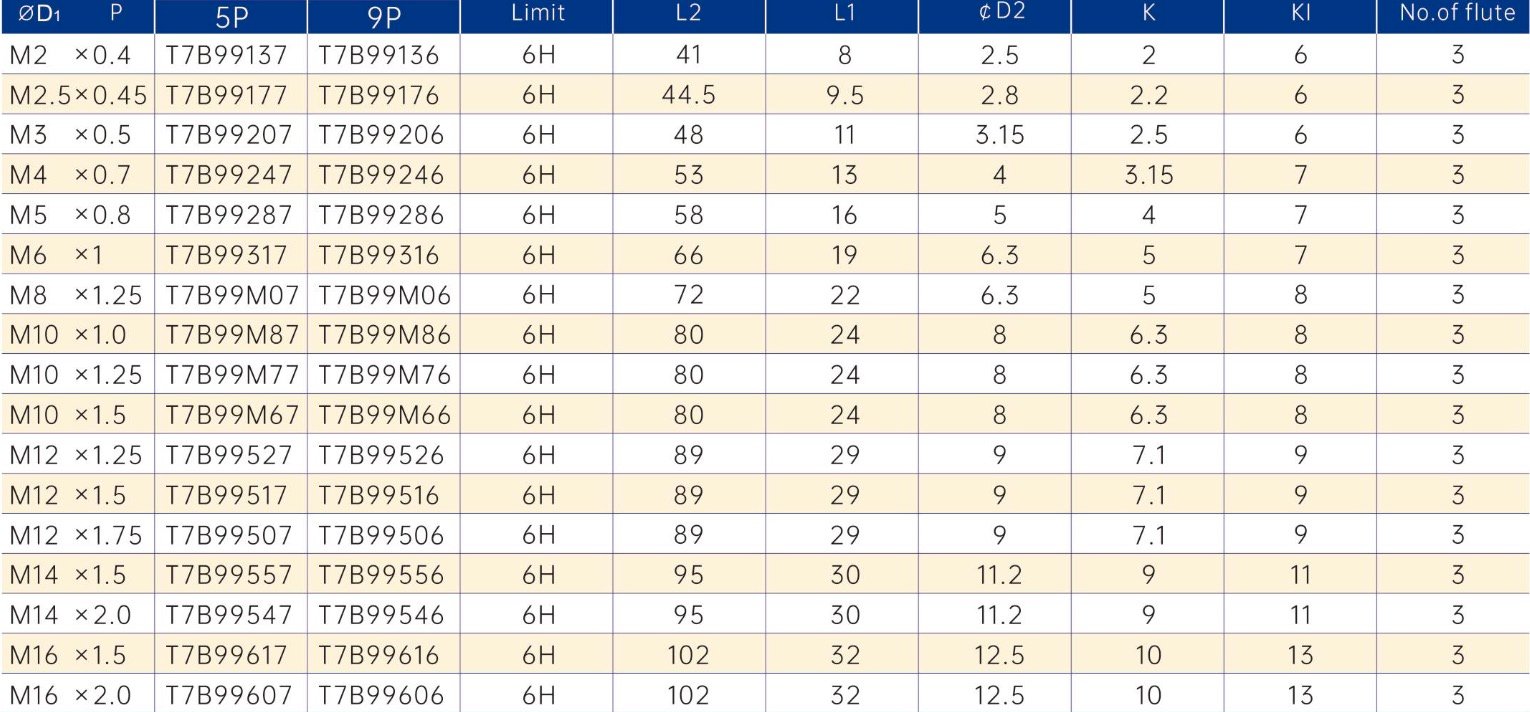

Model Specifications
Dimensions are in millimetres. Select the thread diameter, pitch and complete EDP order code.
| Thread D1 | Pitch P (mm) | EDP — 5P | EDP — 9P | Tolerance | Overall L2 (mm) | Thread L1 (mm) | Shank D2 (mm) | Square K (mm) | Square length Kl (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| M2 | 0.4 | T7B99137 | T7B99136 | 6H | 41 | 8 | 2.5 | 2 | 6 | 3 |
| M2.5 | 0.45 | T7B99177 | T7B99176 | 6H | 44.5 | 9.5 | 2.8 | 2.2 | 6 | 3 |
| M3 | 0.5 | T7B99207 | T7B99206 | 6H | 48 | 11 | 3.15 | 2.5 | 6 | 3 |
| M4 | 0.7 | T7B99247 | T7B99246 | 6H | 53 | 13 | 4 | 3.15 | 7 | 3 |
| M5 | 0.8 | T7B99287 | T7B99286 | 6H | 58 | 16 | 5 | 4 | 7 | 3 |
| M6 | 1 | T7B99317 | T7B99316 | 6H | 66 | 19 | 6.3 | 5 | 7 | 3 |
| M8 | 1.25 | T7B99M07 | T7B99M06 | 6H | 72 | 22 | 6.3 | 5 | 8 | 3 |
| M10 | 1.0 | T7B99M87 | T7B99M86 | 6H | 80 | 24 | 8 | 6.3 | 8 | 3 |
| M10 | 1.25 | T7B99M77 | T7B99M76 | 6H | 80 | 24 | 8 | 6.3 | 8 | 3 |
| M10 | 1.5 | T7B99M67 | T7B99M66 | 6H | 80 | 24 | 8 | 6.3 | 8 | 3 |
| M12 | 1.25 | T7B99527 | T7B99526 | 6H | 89 | 29 | 9 | 7.1 | 9 | 3 |
| M12 | 1.5 | T7B99517 | T7B99516 | 6H | 89 | 29 | 9 | 7.1 | 9 | 3 |
| M12 | 1.75 | T7B99507 | T7B99506 | 6H | 89 | 29 | 9 | 7.1 | 9 | 3 |
| M14 | 1.5 | T7B99557 | T7B99556 | 6H | 95 | 30 | 11.2 | 9 | 11 | 3 |
| M14 | 2.0 | T7B99547 | T7B99546 | 6H | 95 | 30 | 11.2 | 9 | 11 | 3 |
| M16 | 1.5 | T7B99617 | T7B99616 | 6H | 102 | 32 | 12.5 | 10 | 13 | 3 |
| M16 | 2.0 | T7B99607 | T7B99606 | 6H | 102 | 32 | 12.5 | 10 | 13 | 3 |

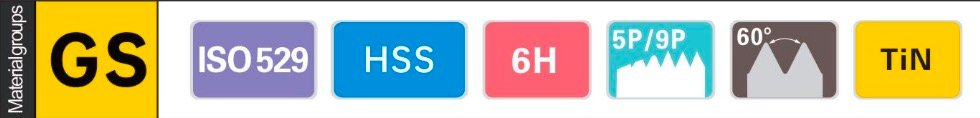

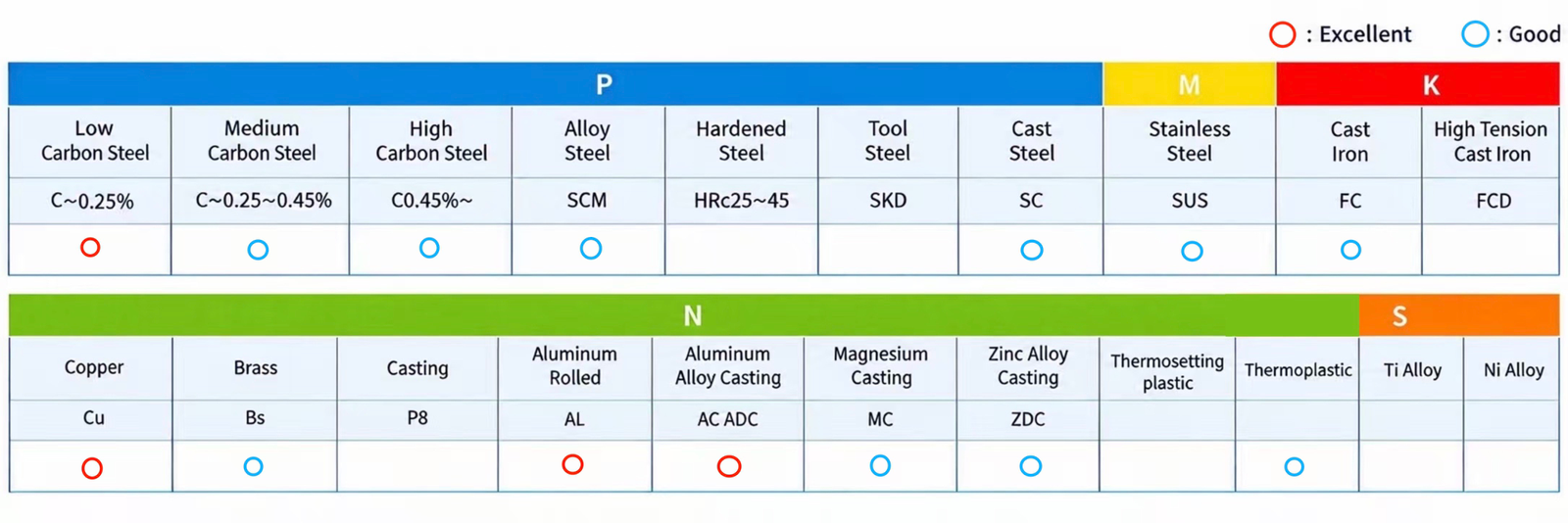

Features & Parameters
ISO 529
Tool standard
529
HSS
Tool material
High-speed steel
6H
Tap tolerance
Metric thread
5P / 9P
Chamfer lead
In thread pitches
60°
Thread angle
Metric profile
TiN
Surface finish
Tool material: HSS
Surface finish: Titanium nitride (TiN)
Thread tolerance: 6H
Chamfer options: 5P and 9P, with separate order codes in the table.
| Symbol | Meaning | Unit |
|---|---|---|
| D1 | Nominal thread diameter | mm |
| P | Thread pitch | mm |
| L2 | Overall length | mm |
| L1 | Thread length | mm |
| D2 | Shank diameter | mm |
| K | Square drive width | mm |
| Kl | Square drive length | mm |
| EDP | Complete product order code | — |
Include the EDP code, surface finish, quantity, workpiece material and hardness, thread depth and coolant method with your enquiry.
