THREADING / WTP-POT
DIN Spiral Point Taps
- Spiral point taps for through-hole threading in steel, stainless steel and cast iron.
- The spiral point directs chips forward through the hole.
- M3-M20 metric sizes in HSS-E and HSS-PM, with a 5-pitch chamfer lead.
M3–M20 · DIN 371 / 376 / 374

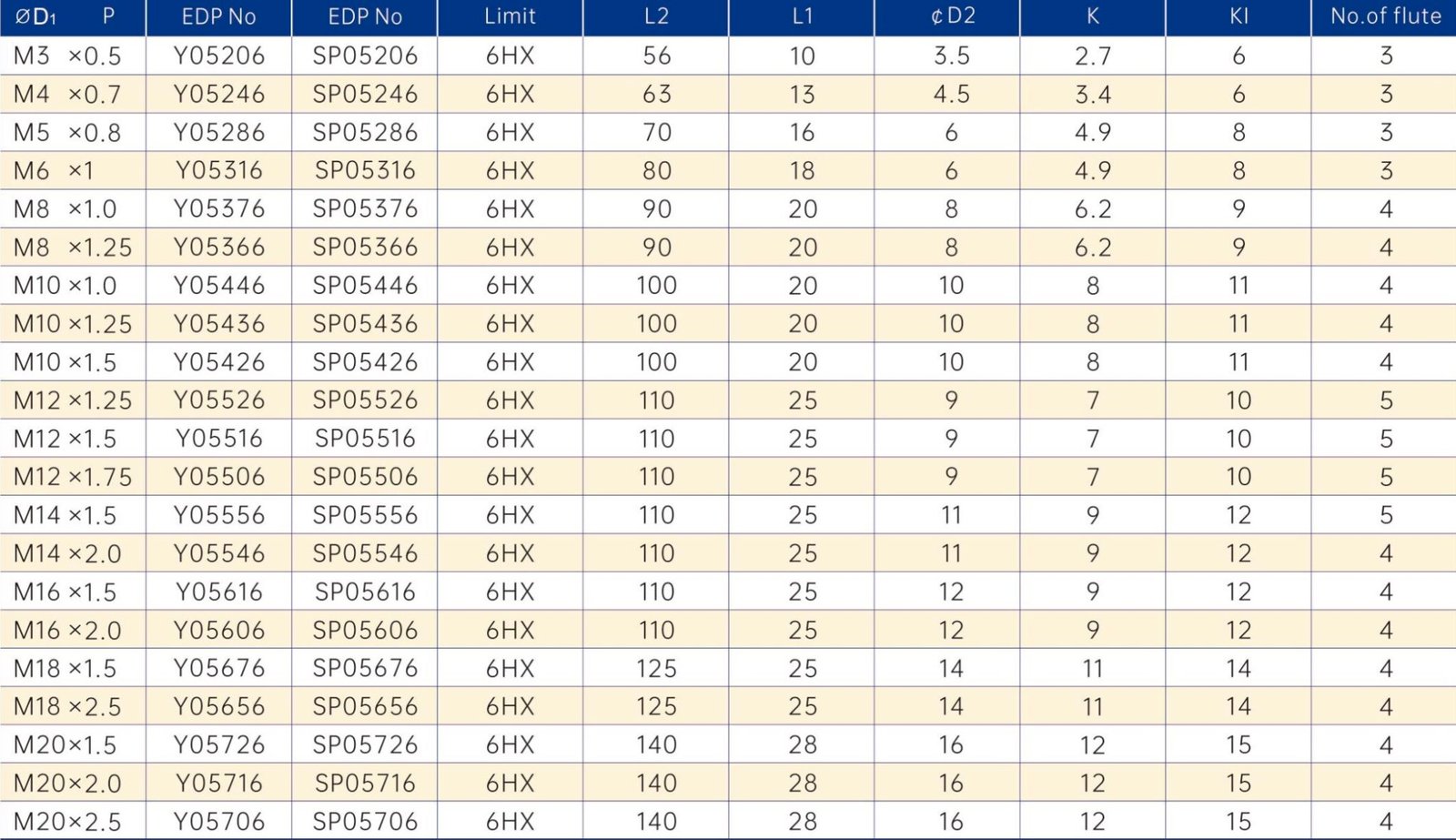

Model Specifications
Dimensions are in millimetres. Select the thread diameter, pitch and complete EDP order code.
Y order codes: HSS-E. SP order codes: HSS-PM.
| Thread D1 | Pitch P (mm) | EDP — HSS-E | EDP — HSS-PM | Tolerance | Overall L2 (mm) | Thread L1 (mm) | Shank D2 (mm) | Square K (mm) | Square length Kl (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| M3 | 0.5 | Y05206 | SP05206 | 6HX | 56 | 10 | 3.5 | 2.7 | 6 | 3 |
| M4 | 0.7 | Y05246 | SP05246 | 6HX | 63 | 13 | 4.5 | 3.4 | 6 | 3 |
| M5 | 0.8 | Y05286 | SP05286 | 6HX | 70 | 16 | 6 | 4.9 | 8 | 3 |
| M6 | 1 | Y05316 | SP05316 | 6HX | 80 | 18 | 6 | 4.9 | 8 | 3 |
| M8 | 1 | Y05376 | SP05376 | 6HX | 90 | 20 | 8 | 6.2 | 9 | 4 |
| M8 | 1.25 | Y05366 | SP05366 | 6HX | 90 | 20 | 8 | 6.2 | 9 | 4 |
| M10 | 1 | Y05446 | SP05446 | 6HX | 100 | 20 | 10 | 8 | 11 | 4 |
| M10 | 1.25 | Y05436 | SP05436 | 6HX | 100 | 20 | 10 | 8 | 11 | 4 |
| M10 | 1.5 | Y05426 | SP05426 | 6HX | 100 | 20 | 10 | 8 | 11 | 4 |
| M12 | 1.25 | Y05526 | SP05526 | 6HX | 110 | 25 | 9 | 7 | 10 | 5 |
| M12 | 1.5 | Y05516 | SP05516 | 6HX | 110 | 25 | 9 | 7 | 10 | 5 |
| M12 | 1.75 | Y05506 | SP05506 | 6HX | 110 | 25 | 9 | 7 | 10 | 5 |
| M14 | 1.5 | Y05556 | SP05556 | 6HX | 110 | 25 | 11 | 9 | 12 | 5 |
| M14 | 2 | Y05546 | SP05546 | 6HX | 110 | 25 | 11 | 9 | 12 | 4 |
| M16 | 1.5 | Y05616 | SP05616 | 6HX | 110 | 25 | 12 | 9 | 12 | 4 |
| M16 | 2 | Y05606 | SP05606 | 6HX | 110 | 25 | 12 | 9 | 12 | 4 |
| M18 | 1.5 | Y05676 | SP05676 | 6HX | 125 | 25 | 14 | 11 | 14 | 4 |
| M18 | 2.5 | Y05656 | SP05656 | 6HX | 125 | 25 | 14 | 11 | 14 | 4 |
| M20 | 1.5 | Y05726 | SP05726 | 6HX | 140 | 28 | 16 | 12 | 15 | 4 |
| M20 | 2 | Y05716 | SP05716 | 6HX | 140 | 28 | 16 | 12 | 15 | 4 |
| M20 | 2.5 | Y05706 | SP05706 | 6HX | 140 | 28 | 16 | 12 | 15 | 4 |
Workpiece Materials
PSteel MStainless Steel KCast Iron NNon-ferrous Metals OtherNon-metallic Materials SHeat-resistant Superalloys and Titanium Alloys

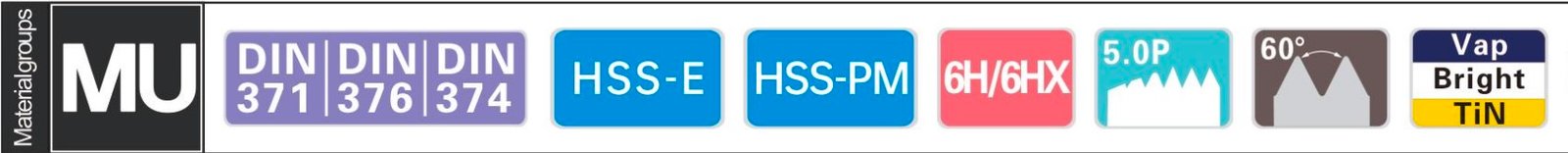

Features & Parameters
DIN
Tool standard
371 / 376 / 374
HSS-E
Tool material
Cobalt HSS
HSS-PM
Tool material
Powder metallurgy HSS
6HX
Tap tolerance
Metric thread
5.0P
Chamfer lead
In thread pitches
60°
Thread angle
Metric profile
3.0 × D1
Tapping depth
Through holes
Vap
Surface finish
Bright
Surface finish
TiN
Surface finish

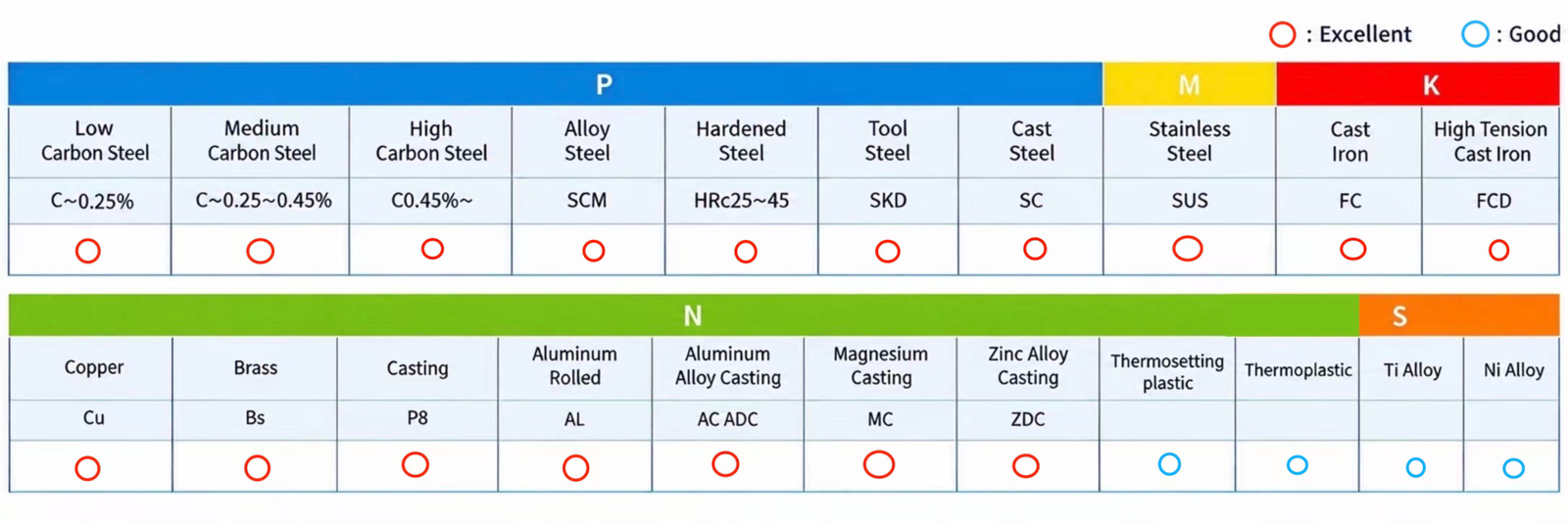

Workpiece Suitability
| Material group | Workpiece material | Condition / grade | Suitability |
|---|---|---|---|
| PSteel | Low-carbon steel | C ≤ 0.25% | Excellent |
| PSteel | Medium-carbon steel | C 0.25–0.45% | Excellent |
| PSteel | High-carbon steel | C ≥ 0.45% | Excellent |
| PSteel | Alloy steel | SCM | Excellent |
| PSteel | Hardened steel | 25–45 HRC | Excellent |
| PSteel | Tool steel | SKD | Excellent |
| PSteel | Cast steel | SC | Excellent |
| MStainless Steel | Stainless steel | SUS | Excellent |
| KCast Iron | Cast iron | FC | Excellent |
| KCast Iron | Ductile cast iron | FCD | Excellent |
| NNon-ferrous Metals | Copper | Cu | Excellent |
| NNon-ferrous Metals | Brass | Bs | Excellent |
| NNon-ferrous Metals | Wrought aluminium | AL | Excellent |
| NNon-ferrous Metals | Cast aluminium alloys | AC / ADC | Excellent |
| NNon-ferrous Metals | Cast magnesium alloys | MC | Excellent |
| NNon-ferrous Metals | Cast zinc alloys | ZDC | Excellent |
| OtherNon-metallic Materials | Thermosetting plastics | Good | |
| OtherNon-metallic Materials | Thermoplastics | Good | |
| SHeat-resistant Superalloys and Titanium Alloys | Titanium alloys | Good | |
| SHeat-resistant Superalloys and Titanium Alloys | Nickel alloys | Good |
Cutting speeds & coolant
General starting values for spiral point taps. Adjust to the workpiece, tap finish, hole dimensions and machining conditions.
| Material group | Workpiece | Condition / grade | Speed Vc (m/min) | Neat oil | Water-soluble | Semi-dry | Dry |
|---|---|---|---|---|---|---|---|
| PSteel | Low-carbon steel | C ≤ 0.25% | 15–25 | ◎ | ○ | — | — |
| PSteel | Medium-carbon steel | C 0.25–0.45% | 10–15 | ◎ | ○ | — | — |
| PSteel | High-carbon steel | C ≥ 0.45% | 8–13 | ◎ | ○ | — | — |
| PSteel | Alloy steel | SCM | 10–15 | ◎ | △ | — | — |
| PSteel | Hardened steel | 25–45 HRC | 4–6 | ◎ | △ | — | — |
| MStainless Steel | Stainless steel | SUS | 8–13 | ◎ | ○ | — | — |
| PSteel | Tool steel | SKD | 7–10 | ◎ | — | — | — |
| PSteel | Cast steel | SC | 10–15 | ◎ | ○ | — | — |
| KCast Iron | Ductile cast iron | FCD | 10–20 | ◎ | ○ | ○ | — |
| NNon-ferrous Metals | Copper | Cu | 7–12 | ○ | ○ | — | — |
| NNon-ferrous Metals | Brass / brass castings | Bs / BsC | 15–25 | ○ | ○ | ○ | ○ |
| NNon-ferrous Metals | Wrought aluminium | AL | 15–25 | ◎ | ○ | — | — |
| NNon-ferrous Metals | Cast aluminium alloys | AC / ADC | 15–20 | ◎ | ○ | — | — |
| NNon-ferrous Metals | Cast magnesium alloys | MC | 10–15 | ◎ | ○ | — | — |
| NNon-ferrous Metals | Cast zinc alloys | ZDC | 10–15 | ◎ | ○ | — | — |
| OtherNon-metallic Materials | Thermosetting plastics | Phenolic / epoxy | 15–25 | — | ○ | ○ | ○ |
| OtherNon-metallic Materials | Thermoplastics | PVC / nylon | 10–20 | — | ○ | — | — |
◎, ○ and △ indicate the coolant ratings. A dash indicates no listed recommendation. Cutting speed is in m/min; spindle speed n = 1000 × Vc / (π × D1), with D1 in mm.
| Symbol | Meaning | Unit |
|---|---|---|
| D1 | Nominal thread diameter | mm |
| P | Thread pitch | mm |
| L2 | Overall length | mm |
| L1 | Thread length | mm |
| D2 | Shank diameter | mm |
| K | Square drive width | mm |
| Kl | Square drive length | mm |
| EDP | Complete product order code | — |
DIN 371: metric coarse threads M2–M10. DIN 376: metric coarse threads M11–M30. DIN 374: metric fine threads. Available sizes for this series are listed above.
Include the EDP code, surface finish, quantity, workpiece material and hardness, thread depth and coolant method with your enquiry.
