THREADING / WTP Straight Flute
DIN Straight Flute Taps
Powder metallurgy HSS straight flute taps for cast iron and other short-chipping materials.
M3–M16 · DIN 371 / 376 / 374
Model Specifications
Dimensions are in millimetres. Select the thread diameter, pitch and complete EDP order code.

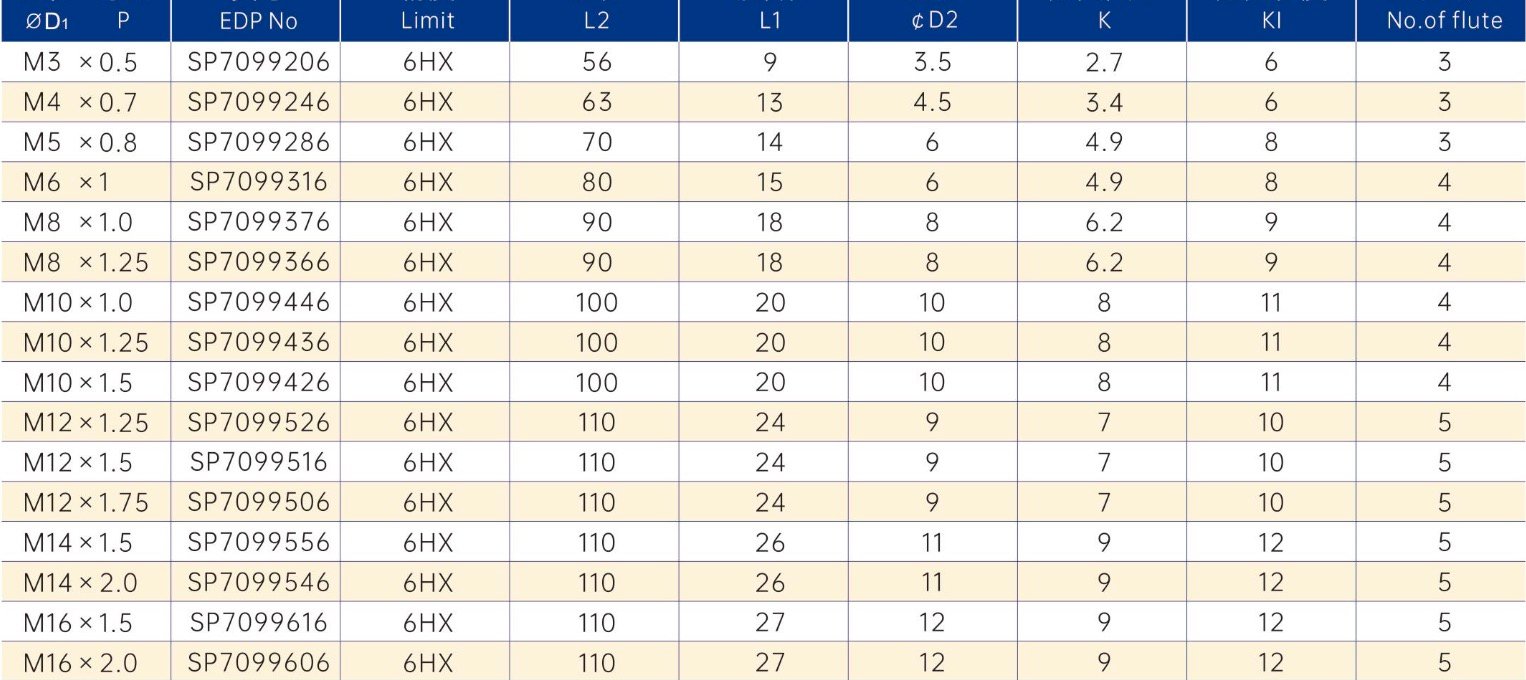

| Thread D1 | Pitch P (mm) | EDP order code | Tolerance | Overall L2 (mm) | Thread L1 (mm) | Shank D2 (mm) | Square K (mm) | Square length Kl (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|
| M3 | 0.5 | SP7099206 | 6HX | 56 | 9 | 3.5 | 2.7 | 6 | 3 |
| M4 | 0.7 | SP7099246 | 6HX | 63 | 13 | 4.5 | 3.4 | 6 | 3 |
| M5 | 0.8 | SP7099286 | 6HX | 70 | 14 | 6 | 4.9 | 8 | 3 |
| M6 | 1 | SP7099316 | 6HX | 80 | 15 | 6 | 4.9 | 8 | 4 |
| M8 | 1 | SP7099376 | 6HX | 90 | 18 | 8 | 6.2 | 9 | 4 |
| M8 | 1.25 | SP7099366 | 6HX | 90 | 18 | 8 | 6.2 | 9 | 4 |
| M10 | 1 | SP7099446 | 6HX | 100 | 20 | 10 | 8 | 11 | 4 |
| M10 | 1.25 | SP7099436 | 6HX | 100 | 20 | 10 | 8 | 11 | 4 |
| M10 | 1.5 | SP7099426 | 6HX | 100 | 20 | 10 | 8 | 11 | 4 |
| M12 | 1.25 | SP7099526 | 6HX | 110 | 24 | 9 | 7 | 10 | 5 |
| M12 | 1.5 | SP7099516 | 6HX | 110 | 24 | 9 | 7 | 10 | 5 |
| M12 | 1.75 | SP7099506 | 6HX | 110 | 24 | 9 | 7 | 10 | 5 |
| M14 | 1.5 | SP7099556 | 6HX | 110 | 26 | 11 | 9 | 12 | 5 |
| M14 | 2 | SP7099546 | 6HX | 110 | 26 | 11 | 9 | 12 | 5 |
| M16 | 1.5 | SP7099616 | 6HX | 110 | 27 | 12 | 9 | 12 | 5 |
| M16 | 2 | SP7099606 | 6HX | 110 | 27 | 12 | 9 | 12 | 5 |
Workpiece Materials
PSteel KCast Iron NNon-ferrous Metals SHeat-resistant Superalloys and Titanium Alloys

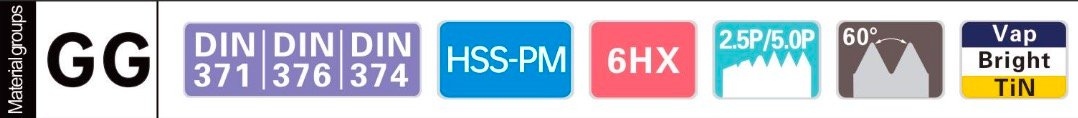

Features & Parameters
DIN
Tool standard
371 / 376 / 374
HSS-PM
Tool material
Powder metallurgy HSS
6HX
Tap tolerance
Metric thread
2.5P / 5.0P
Chamfer lead
In thread pitches
60°
Thread angle
Metric profile
2.0 × D1
Tapping depth
Blind & through holes
Vap
Surface finish
Bright
Surface finish
TiN
Surface finish

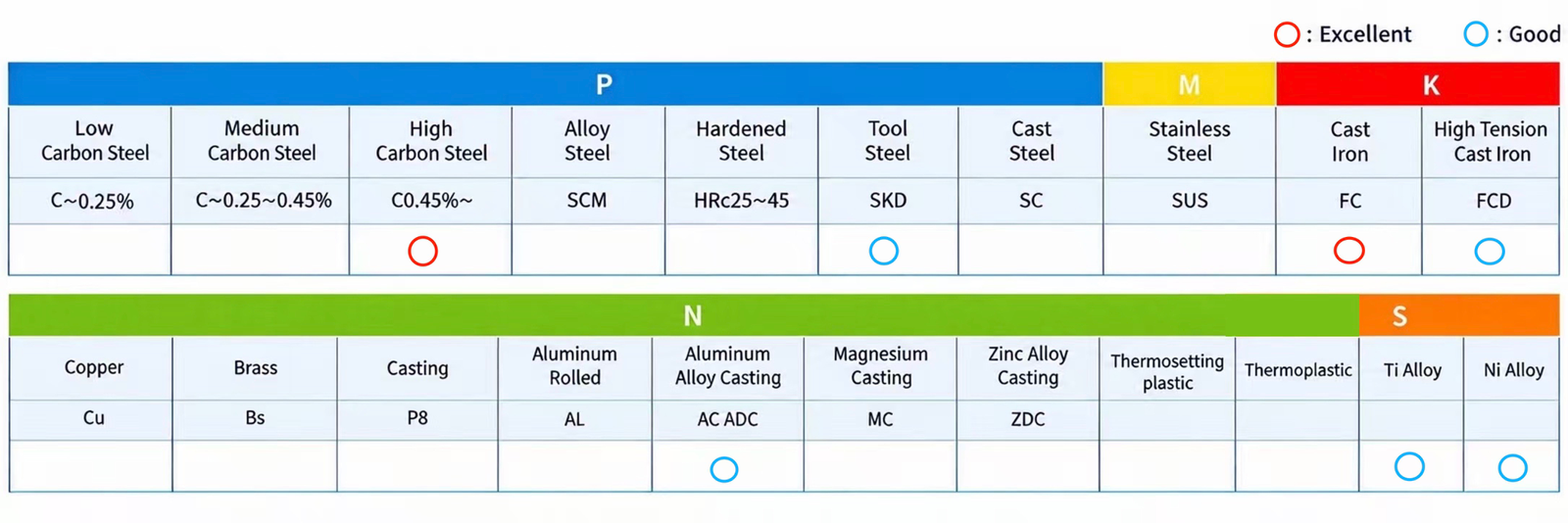

Workpiece Suitability
| Material group | Workpiece material | Condition / grade | Suitability |
|---|---|---|---|
| PSteel | High-carbon steel | C ≥ 0.45% | Excellent |
| PSteel | Tool steel | SKD | Good |
| KCast Iron | Cast iron | FC | Excellent |
| KCast Iron | Ductile cast iron | FCD | Good |
| NNon-ferrous Metals | Cast aluminium alloys | AC / ADC | Good |
| SHeat-resistant Superalloys and Titanium Alloys | Titanium alloys | Good | |
| SHeat-resistant Superalloys and Titanium Alloys | Nickel alloys | Good |
Cutting speeds & coolant
General starting values for straight flute taps. Adjust to the workpiece, tap finish, hole dimensions and machining conditions.
| Material group | Workpiece | Condition / grade | Speed Vc (m/min) | Neat oil | Water-soluble | Semi-dry | Dry |
|---|---|---|---|---|---|---|---|
| PSteel | High-carbon steel | C ≥ 0.45% | 6–9 | ◎ | ○ | — | — |
| PSteel | Tool steel | SKD | 6–9 | ◎ | — | — | — |
| KCast Iron | Cast iron | FC | 10–15 | ◎ | ○ | ○ | ○ |
| KCast Iron | Ductile cast iron | FCD | 7–12 | ◎ | ○ | ○ | — |
| NNon-ferrous Metals | Cast aluminium alloys | AC / ADC | 10–15 | ◎ | ○ | — | — |
◎, ○ and △ indicate the coolant ratings. A dash indicates no listed recommendation. Cutting speed is in m/min; spindle speed n = 1000 × Vc / (π × D1), with D1 in mm.
| Symbol | Meaning | Unit |
|---|---|---|
| D1 | Nominal thread diameter | mm |
| P | Thread pitch | mm |
| L2 | Overall length | mm |
| L1 | Thread length | mm |
| D2 | Shank diameter | mm |
| K | Square drive width | mm |
| Kl | Square drive length | mm |
| EDP | Complete product order code | — |
DIN 371: metric coarse threads M2–M10. DIN 376: metric coarse threads M11–M30. DIN 374: metric fine threads. Available sizes for this series are listed above.
Include the EDP code, surface finish, quantity, workpiece material and hardness, thread depth and coolant method with your enquiry.
