THREADING / WTP-SFT

DIN Spiral Flute Taps

  • Spiral flute taps for blind-hole threading in steel, stainless steel and cast iron.
  • 45-degree spiral flutes carry chips back out of the hole.
  • M3-M20 metric sizes in HSS-E and HSS-PM, with a 2.5-pitch chamfer lead.

M3–M20 · DIN 371 / 376 / 374

Model Specifications

Dimensions are in millimetres. Select the thread diameter, pitch and complete EDP order code.

Y order codes: HSS-E. SP order codes: HSS-PM.

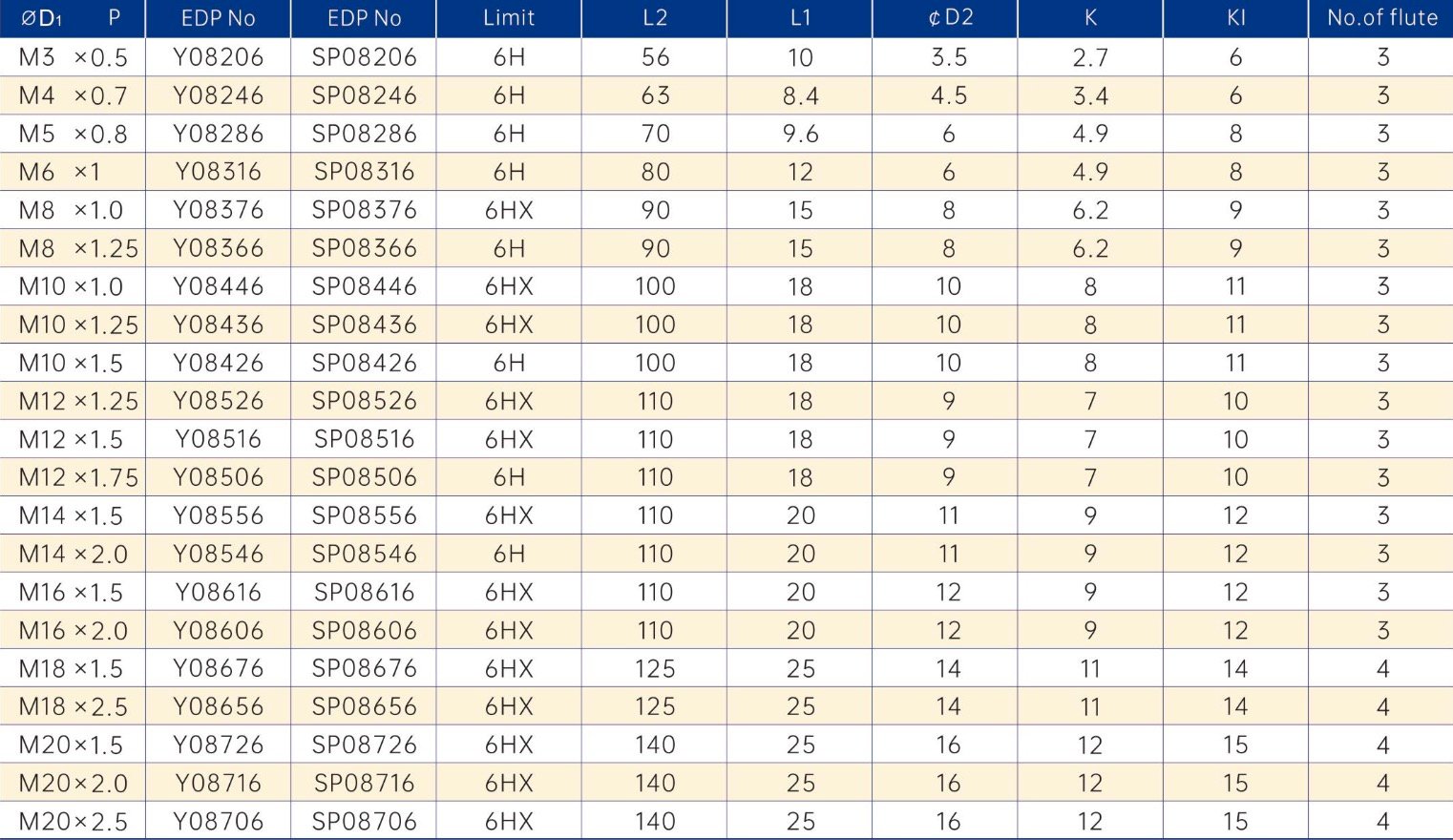

WTP-SFT — metric sizes and dimensions
Thread D1Pitch P (mm)EDP — HSS-EEDP — HSS-PMToleranceOverall L2 (mm)Thread L1 (mm)Shank D2 (mm)Square K (mm)Square length Kl (mm)Flutes
M30.5Y08206SP082066H56103.52.763
M40.7Y08246SP082466H638.44.53.463
M50.8Y08286SP082866H709.664.983
M61Y08316SP083166H801264.983
M81Y08376SP083766HX901586.293
M81.25Y08366SP083666H901586.293
M101Y08446SP084466HX10018108113
M101.25Y08436SP084366HX10018108113
M101.5Y08426SP084266H10018108113
M121.25Y08526SP085266HX1101897103
M121.5Y08516SP085166HX1101897103
M121.75Y08506SP085066H1101897103
M141.5Y08556SP085566HX11020119123
M142Y08546SP085466H11020119123
M161.5Y08616SP086166HX11020129123
M162Y08606SP086066HX11020129123
M181.5Y08676SP086766HX125251411144
M182.5Y08656SP086566HX125251411144
M201.5Y08726SP087266HX140251612154
M202Y08716SP087166HX140251612154
M202.5Y08706SP087066HX140251612154

Workpiece Materials

PSteel MStainless Steel KCast Iron NNon-ferrous Metals OtherNon-metallic Materials SHeat-resistant Superalloys and Titanium Alloys

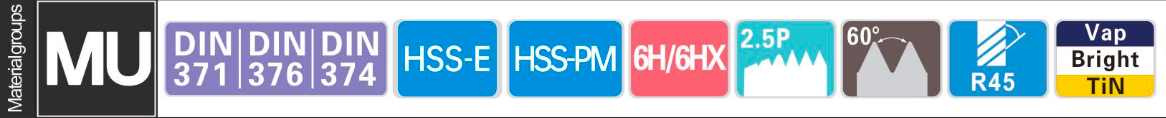

Features & Parameters

DIN

Tool standard
371 / 376 / 374

HSS-E

Tool material
Cobalt HSS

HSS-PM

Tool material
Powder metallurgy HSS

6H / 6HX

Tap tolerance
Metric thread

2.5P

Chamfer lead
In thread pitches

60°

Thread angle
Metric profile

R45

Helix angle
Right-hand spiral

2.5 × D1

Tapping depth
Blind holes

Vap

Surface finish

Bright

Surface finish

TiN

Surface finish

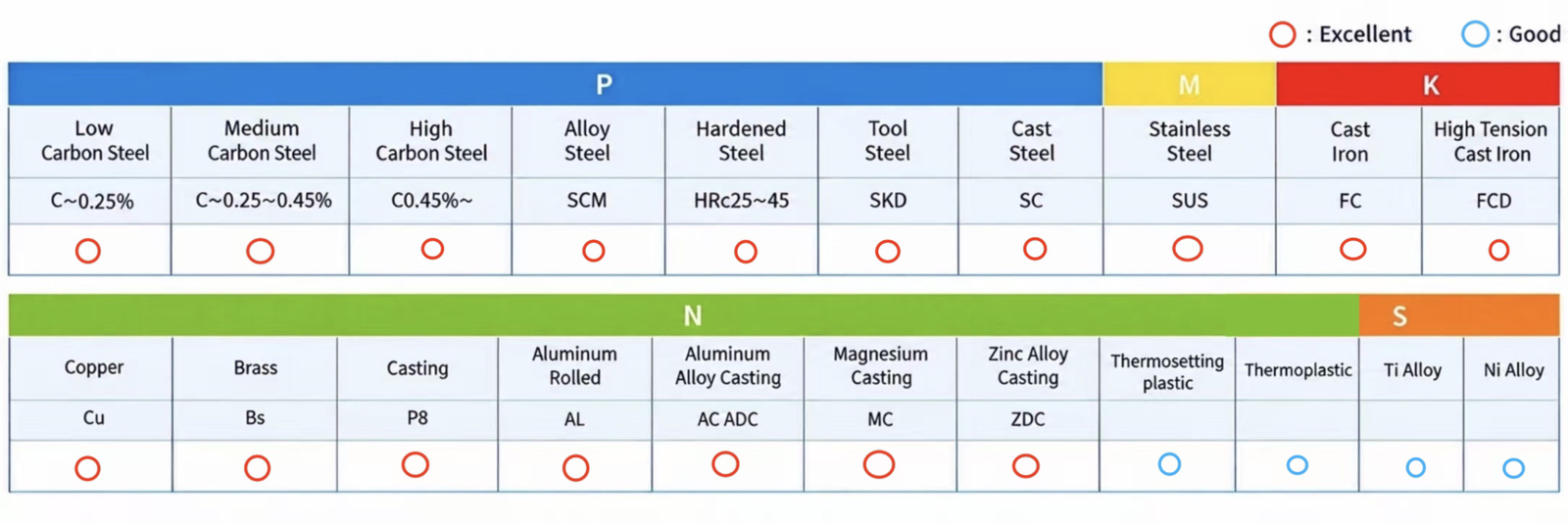

Workpiece Suitability

Workpiece suitability
Material groupWorkpiece materialCondition / gradeSuitability
PSteelLow-carbon steelC ≤ 0.25%Excellent
PSteelMedium-carbon steelC 0.25–0.45%Excellent
PSteelHigh-carbon steelC ≥ 0.45%Excellent
PSteelAlloy steelSCMExcellent
PSteelHardened steel25–45 HRCExcellent
PSteelTool steelSKDExcellent
PSteelCast steelSCExcellent
MStainless SteelStainless steelSUSExcellent
KCast IronCast ironFCExcellent
KCast IronDuctile cast ironFCDExcellent
NNon-ferrous MetalsCopperCuExcellent
NNon-ferrous MetalsBrassBsExcellent
NNon-ferrous MetalsWrought aluminiumALExcellent
NNon-ferrous MetalsCast aluminium alloysAC / ADCExcellent
NNon-ferrous MetalsCast magnesium alloysMCExcellent
NNon-ferrous MetalsCast zinc alloysZDCExcellent
OtherNon-metallic MaterialsThermosetting plasticsGood
OtherNon-metallic MaterialsThermoplasticsGood
SHeat-resistant Superalloys and Titanium AlloysTitanium alloysGood
SHeat-resistant Superalloys and Titanium AlloysNickel alloysGood

Cutting speeds & coolant

General starting values for spiral flute taps. Adjust to the workpiece, tap finish, hole dimensions and machining conditions.

Cutting conditions
Material groupWorkpieceCondition / gradeSpeed Vc (m/min)Neat oilWater-solubleSemi-dryDry
PSteelLow-carbon steelC ≤ 0.25%8–13◎○——
PSteelMedium-carbon steelC 0.25–0.45%7–12◎○——
PSteelHigh-carbon steelC ≥ 0.45%6–9◎○——
PSteelAlloy steelSCM7–12◎△——
PSteelHardened steel25–45 HRC3–5◎△——
MStainless SteelStainless steelSUS5–8◎○——
PSteelTool steelSKD6–9◎———
PSteelCast steelSC6–11◎○——
KCast IronDuctile cast ironFCD7–12◎○○—
NNon-ferrous MetalsCopperCu6–11○○——
NNon-ferrous MetalsBrass / brass castingsBs / BsC10–20○○○○
NNon-ferrous MetalsWrought aluminiumAL10–20◎○——
NNon-ferrous MetalsCast aluminium alloysAC / ADC10–15◎○——
NNon-ferrous MetalsCast magnesium alloysMC7–12◎○——
NNon-ferrous MetalsCast zinc alloysZDC7–12◎○——
OtherNon-metallic MaterialsThermoplasticsPVC / nylon10–15—○——

◎, ○ and △ indicate the coolant ratings. A dash indicates no listed recommendation. Cutting speed is in m/min; spindle speed n = 1000 × Vc / (π × D1), with D1 in mm.

Dimensions and order codes
SymbolMeaningUnit
D1Nominal thread diametermm
PThread pitchmm
L2Overall lengthmm
L1Thread lengthmm
D2Shank diametermm
KSquare drive widthmm
KlSquare drive lengthmm
EDPComplete product order code—

DIN 371: metric coarse threads M2–M10. DIN 376: metric coarse threads M11–M30. DIN 374: metric fine threads. Available sizes for this series are listed above.

Include the EDP code, surface finish, quantity, workpiece material and hardness, thread depth and coolant method with your enquiry.
