THREADING / WTP-SFT Carbide
DIN Carbide Spiral Flute Taps
Micro-grain carbide spiral flute taps for blind-hole threading in aluminium, magnesium, zinc, copper and other non-ferrous metals.
M3–M20 · DIN 371 / 376 / 374

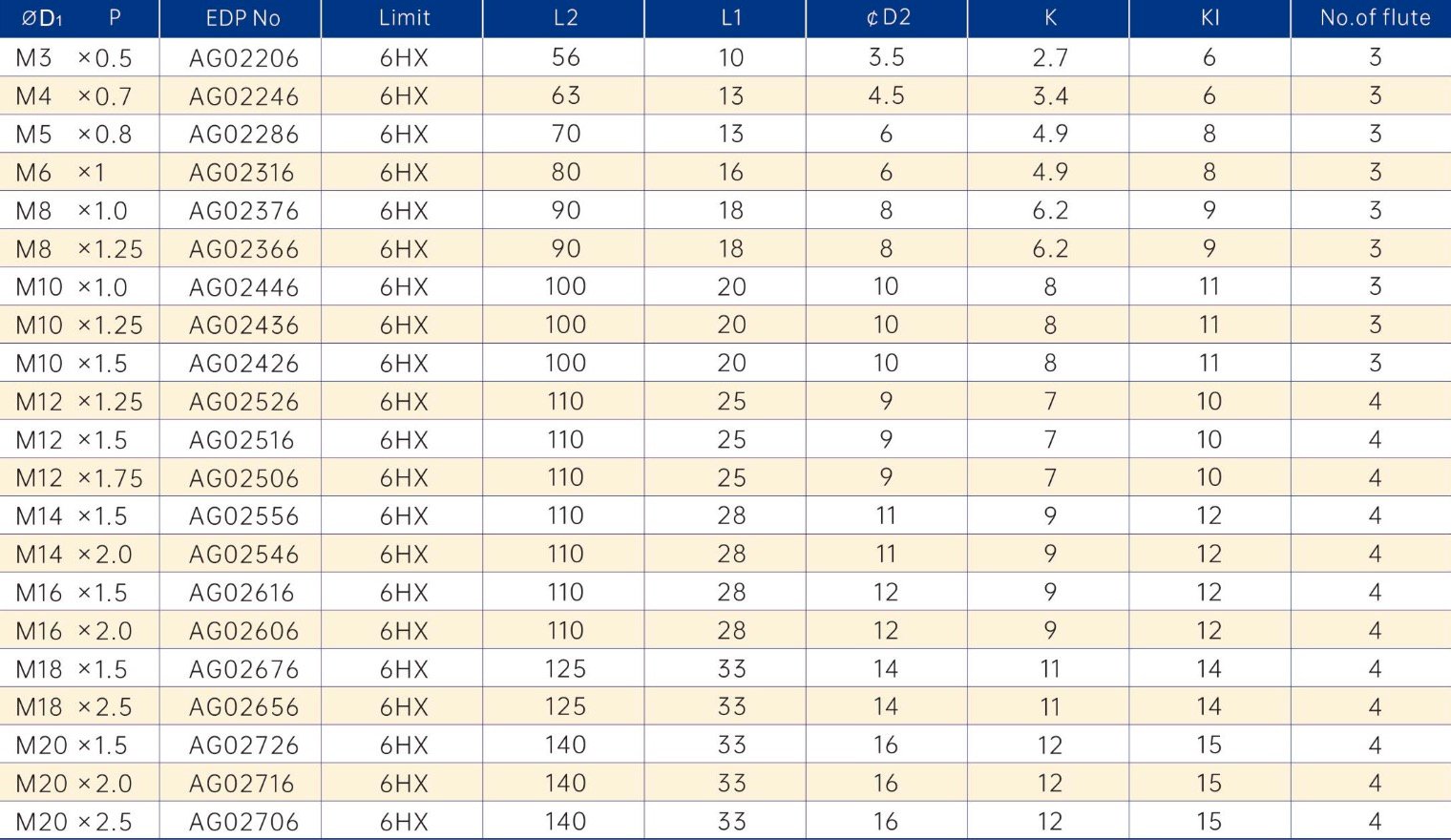

Model Specifications
Dimensions are in millimetres. Select the thread diameter, pitch and complete EDP order code.
| Thread D1 | Pitch P (mm) | EDP order code | Tolerance | Overall L2 (mm) | Thread L1 (mm) | Shank D2 (mm) | Square K (mm) | Square length Kl (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|
| M3 | 0.5 | AG02206 | 6HX | 56 | 10 | 3.5 | 2.7 | 6 | 3 |
| M4 | 0.7 | AG02246 | 6HX | 63 | 13 | 4.5 | 3.4 | 6 | 3 |
| M5 | 0.8 | AG02286 | 6HX | 70 | 13 | 6 | 4.9 | 8 | 3 |
| M6 | 1 | AG02316 | 6HX | 80 | 16 | 6 | 4.9 | 8 | 3 |
| M8 | 1 | AG02376 | 6HX | 90 | 18 | 8 | 6.2 | 9 | 3 |
| M8 | 1.25 | AG02366 | 6HX | 90 | 18 | 8 | 6.2 | 9 | 3 |
| M10 | 1 | AG02446 | 6HX | 100 | 20 | 10 | 8 | 11 | 3 |
| M10 | 1.25 | AG02436 | 6HX | 100 | 20 | 10 | 8 | 11 | 3 |
| M10 | 1.5 | AG02426 | 6HX | 100 | 20 | 10 | 8 | 11 | 3 |
| M12 | 1.25 | AG02526 | 6HX | 110 | 25 | 9 | 7 | 10 | 4 |
| M12 | 1.5 | AG02516 | 6HX | 110 | 25 | 9 | 7 | 10 | 4 |
| M12 | 1.75 | AG02506 | 6HX | 110 | 25 | 9 | 7 | 10 | 4 |
| M14 | 1.5 | AG02556 | 6HX | 110 | 28 | 11 | 9 | 12 | 4 |
| M14 | 2 | AG02546 | 6HX | 110 | 28 | 11 | 9 | 12 | 4 |
| M16 | 1.5 | AG02616 | 6HX | 110 | 28 | 12 | 9 | 12 | 4 |
| M16 | 2 | AG02606 | 6HX | 110 | 28 | 12 | 9 | 12 | 4 |
| M18 | 1.5 | AG02676 | 6HX | 125 | 33 | 14 | 11 | 14 | 4 |
| M18 | 2.5 | AG02656 | 6HX | 125 | 33 | 14 | 11 | 14 | 4 |
| M20 | 1.5 | AG02726 | 6HX | 140 | 33 | 16 | 12 | 15 | 4 |
| M20 | 2 | AG02716 | 6HX | 140 | 33 | 16 | 12 | 15 | 4 |
| M20 | 2.5 | AG02706 | 6HX | 140 | 33 | 16 | 12 | 15 | 4 |
Workpiece Materials
NNon-ferrous Metals KCast Iron OtherNon-metallic Materials

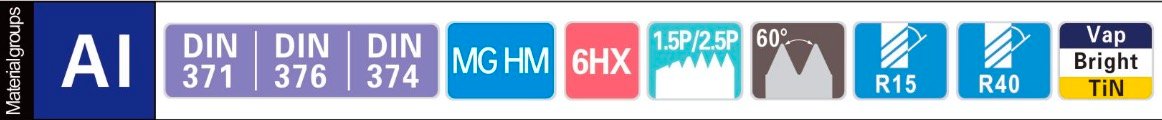

Features & Parameters
DIN
Tool standard
371 / 376 / 374
MG HM
Tool material
Micro-grain carbide
6HX
Tap tolerance
Metric thread
1.5P / 2.5P
Chamfer lead
In thread pitches
60°
Thread angle
Metric profile
R15 / R40
Helix angle
Right-hand spiral
2.5 × D1
Tapping depth
Blind holes
Vap
Surface finish
Bright
Surface finish
TiN
Surface finish

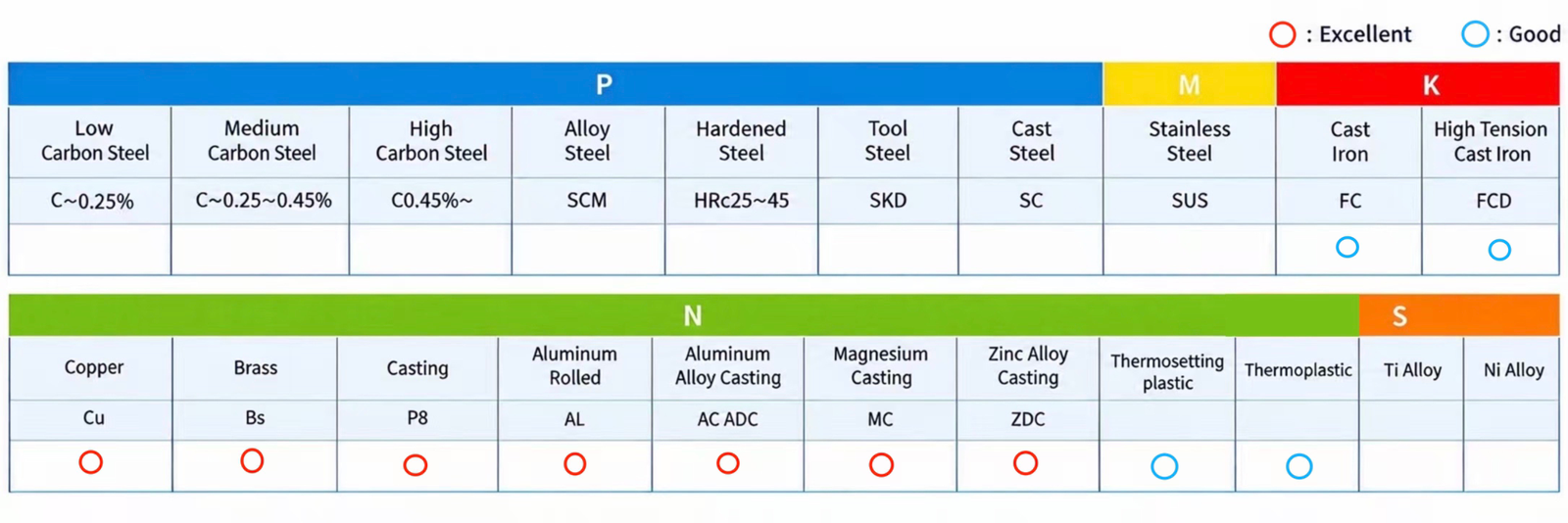

Workpiece Suitability
| Material group | Workpiece material | Condition / grade | Suitability |
|---|---|---|---|
| NNon-ferrous Metals | Copper | Cu | Excellent |
| NNon-ferrous Metals | Brass | Bs | Excellent |
| NNon-ferrous Metals | Wrought aluminium | AL | Excellent |
| NNon-ferrous Metals | Cast aluminium alloys | AC / ADC | Excellent |
| NNon-ferrous Metals | Cast magnesium alloys | MC | Excellent |
| NNon-ferrous Metals | Cast zinc alloys | ZDC | Excellent |
| KCast Iron | Cast iron | FC | Good |
| KCast Iron | Ductile cast iron | FCD | Good |
| OtherNon-metallic Materials | Thermosetting plastics | Good | |
| OtherNon-metallic Materials | Thermoplastics | Good |
Cutting speeds & coolant
General starting values for carbide cutting taps. Adjust to the workpiece, tap finish, hole dimensions and machining conditions.
| Material group | Workpiece | Condition / grade | Speed Vc (m/min) | Neat oil | Water-soluble | Semi-dry | Dry |
|---|---|---|---|---|---|---|---|
| KCast Iron | Cast iron | FC | 10–20 | ◎ | ○ | ○ | ○ |
| KCast Iron | Ductile cast iron | FCD | 10–20 | ◎ | ○ | ○ | — |
| NNon-ferrous Metals | Copper | Cu | 10–20 | ○ | ○ | — | — |
| NNon-ferrous Metals | Brass / brass castings | Bs / BsC | 15–25 | ○ | ○ | ○ | ○ |
| NNon-ferrous Metals | Cast aluminium alloys | AC / ADC | 10–20 | ◎ | ○ | — | — |
| NNon-ferrous Metals | Cast magnesium alloys | MC | 10–20 | ◎ | ○ | — | — |
| NNon-ferrous Metals | Cast zinc alloys | ZDC | 10–20 | ◎ | ○ | — | — |
| OtherNon-metallic Materials | Thermoplastics | PVC / nylon | 10–20 | — | ○ | — | — |
◎, ○ and △ indicate the coolant ratings. A dash indicates no listed recommendation. Cutting speed is in m/min; spindle speed n = 1000 × Vc / (π × D1), with D1 in mm.
| Symbol | Meaning | Unit |
|---|---|---|
| D1 | Nominal thread diameter | mm |
| P | Thread pitch | mm |
| L2 | Overall length | mm |
| L1 | Thread length | mm |
| D2 | Shank diameter | mm |
| K | Square drive width | mm |
| Kl | Square drive length | mm |
| EDP | Complete product order code | — |
DIN 371: metric coarse threads M2–M10. DIN 376: metric coarse threads M11–M30. DIN 374: metric fine threads. Available sizes for this series are listed above.
Include the EDP code, surface finish, quantity, workpiece material and hardness, thread depth and coolant method with your enquiry.
